- MFR #
- LC1D806G7
- Zoro #
- G0850407
- UPC #
- 785901571735
- Country of Origin
- Czechia
- Item

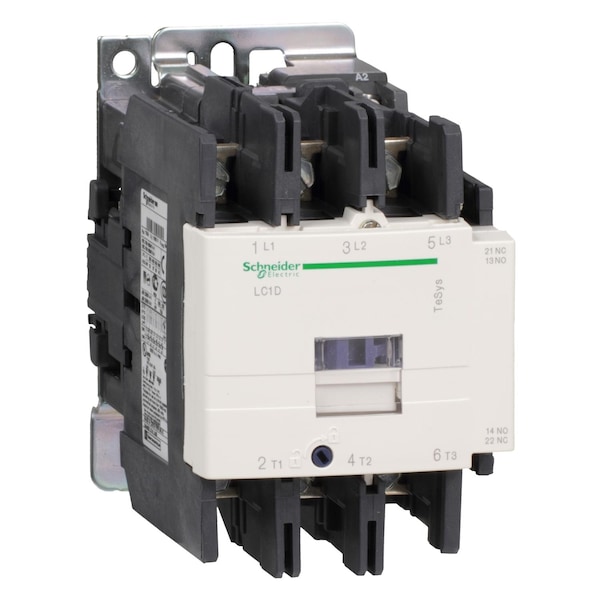

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 80 A
- Full Load Amps-Resistive
- 125 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Lug-Ring
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, LROS, DNV, CSA, GOST, GL, RINA, UL, CCC, THIEC 60068-2-30
- Series
- LC1D, TeSys
- HP @ 3 Phase - 575V
- 60 hp
- Application
- Motor Control, Resistive Load
- Features
- Without Built-In Suppressor Module
- Switching Current
- 5 mA (Signalling Circuit)
- Inrush VA
- 245 VA
- Net Weight
- 1.59 kg
- Vibration Resistance
- 3 G (Contactor Closed), 2 G (Contactor Open)
- Control Circuit Voltage Limits
- Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 55°C 50 Hz), 1 to 1.1 Uc (at 55 to 70°C 50/60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz)
- Switching Voltage
- 17 V (Signalling Circuit)
- IP Rating
- IP20
- Non-Overlap Time
- 1.5 ms
- Mechanical Durability
- 4 Mcycles
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Fire Rating
- UL 94 V1
- Watts Loss
- 6 to 10W
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit)
- Max. Operating Watts
22 kW (at 220 to 230V AC 50/60 Hz AC-3), 37 kW (at 380 to 400V AC 50/60 Hz AC-3), 45 kW (at 415 to 440V AC 50/60 Hz AC-3), 55 kW (at 500V AC 50/60 Hz AC-3), 45 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 400V AC 50/60 Hz AC-4), 22 kW (at 220 to 230V AC 50/60 Hz AC-3e), 37 kW (at 380 to 400V AC 50/60 Hz AC-3e), 45 kW (at 415 to 440V AC 50/60 Hz AC-3e), 55 kW (at 500V AC 50/60 Hz AC-3e), 45 kW (at 660 to 690V AC 50/60 Hz AC-3e)
- Hold VA
- 26 VA
- Rated Short-Time Withstand Current
- 640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Rated Insulation Volts
- 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
- Operating Time
- 20 to 35 ms (Closing), 6 to 20 ms (Opening)
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Overvoltage Category
- CAT III
- Impedance
- 0.8 mOhm
- Electrical Durability
- 0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V)
- Fuse Amps
- 10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)
- Impulse Withstand Voltage
- 8 kV
- Tightening Torque
- 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
- Rated Breaking Capacity
- 1100 A @ 440V
- Operating Speed
- 3600 cycles per hr
- Shock Resistance
- 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Includes Protective Cover
- Yes
- Power Dissipation Per Pole
- 5.1 W AC-3, 12.5 W AC-1, 5.1 W AC-3e
- [Icw] Rated Short-Time Withstand Current
- 640 A 40°C - 10 s for power circuit, 990 A 40°C - 1 s for power circuit, 135 A 40°C - 10 min for power circuit, 320 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
- Utilisation Category
- AC-3, AC-3e, AC-4, AC-1
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) , shocks contactor open 8 Gn for 11 ms) , vibrations contactor closed 3 Gn, 5...300 Hz) , shocks contactor closed 10 Gn for 11 ms)
- Climatic Withstand
- IACS E10 exposure to damp heat
- Control Circuit Type
- AC 50/60 Hz
- Fire Resistance
- 850°C IEC 60695-2-1
- Pole Contact Composition
- 3 NO
- Contactor Application
- motor control, resistive load
- Protective Treatment
- THIEC 60068-2-30
- Heat Dissipation
- 6-10 W at 50/60 Hz
- Maximum Operating Rate
- 3600 cyc/h 60°C
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- Protective Cover
- with
- Full Load Current - Inductive
- 80 A
- Horsepower @ Three Phase - 240V AC
- 30 hp
- Full Load Current - Resistive
- 125 A
- Horsepower @ Three Phase - 480V AC
- 60 hp
- Horsepower @ Single Phase - 120V AC
- 7 1/2 hp
- Horsepower @ Three Phase - 208V AC
- 30 hp
- Horsepower @ Single Phase - 240V AC
- 15 hp
- Rated Operational Voltage
- power circuit <= 300 V DC 25...400 Hz, power circuit <= 690 V AC
- Maximum Operating Temperature
- 140 Degrees F
- Maximum Voltage Rating
- 690V AC, 300V DC
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit)
- Inrush Power in VA
- 245-245 VA 60 Hz cos phi 0.75 (at 20°C), 245-245 VA 50 Hz cos phi 0.75 (at 20°C)
- Ambient Air Temperature For Operation
- -40-60°C, 60-70°C with derating
- Rated Operational Current
- 125 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-3e for power circuit
- Mounting Style
- Plate, Rail
- Control Circuit Voltage
- 120 V AC 50/60 Hz
