  13. IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Spring Type

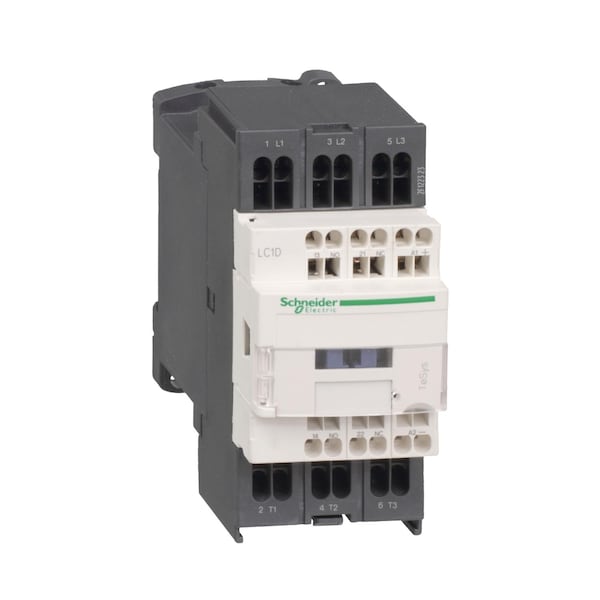

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Spring Type LC1D093G7 - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Spring Type

  • Mfr # LC1D093G7

  • Zoro # G0850459

product price: $113.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Spring Type
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1D093G7
Zoro #
G0850459
UPC #
785901197249
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
86 mm
Overall Width
45 mm
Overall Height
80 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Spring Type
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, GOST, DNV, UL, GL, BV, CCC, CSA, LROS, RINA, UKCA, THIEC 60068-2-30
Series
LC1D
HP @ 3 Phase - 575V
7 1/2 hp
Application
Motor Control, Resistive Load
Features
Without Built-In Suppressor Module
Overvoltage Category
CAT III
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
IP Rating
IP20
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Non-Overlap Time
1.5 ms
Watts Loss
2 to 3W
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW (at 380 to 400V AC 50/60 Hz AC-3), 4 kW 415 to (at 440V AC 50/60 Hz AC-3), 5.5 kW (at 500V AC 50/60 Hz AC-3), 5.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 400V AC 50/60 Hz AC-3e), 4 kW 415 to (at 440V AC 50/60 Hz AC-3e), 5.5 kW (at 500V AC 50/60 Hz AC-3e), 5.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Rated Breaking Capacity
250 A @ 440V
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Includes Protective Cover
Yes
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Inrush VA
70 VA
Mechanical Durability
15 Mcycles
Signalling Circuit Frequency
25 to 400 Hz
Fire Rating
UL 94 V1
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Electrical Durability
0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V); 2 Mcycles (9 A, AC-3e, Less than 440 V)
Net Weight
0.32 kg
Impulse Withstand Voltage
6 kV
Rated Insulation Volts
600/690V
Operating Speed
3600 cycles per hr
Switching Voltage
17 V (Signalling Circuit)
Impedance
2.5 mOhm
Rated Short-Time Withstand Current
105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Switching Current
5 mA (Signalling Circuit)
Horsepower @ Three Phase - 208V AC
2 hp
Horsepower @ Single Phase - 240V AC
1 hp
Full Load Current - Resistive
20 A
Horsepower @ Three Phase - 480V AC
5 hp
Full Load Current - Inductive
9:00 AM
Horsepower @ Three Phase - 240V AC
2 hp
Maximum Voltage Rating
690V AC, 300V DC
Mounting Style
Plate, Rail
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 16 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor, LC1D series, is a 3-pole, non-reversing electrical switch rated for use in accordance with IEC standards. It is rated for operation at 120 V AC within specified parameters and includes auxiliary contacts as specified by manufacturer. The unit uses spring terminals for wiring and includes a protective cover. Dimensions are 80 mm high, 45 mm wide, and 86 mm deep, with a net weight of 0.32 kg.

Poles: 3

  • Coil Voltage: 120 V AC
  • Auxiliary Contacts: as specified by manufacturer
  • Reversing Capability: non-reversing design (no guarantee of reversing function)
  • Series: LC1D
  • Electrical Connection: Spring Terminals
  • Mounting: Plate, Rail
  • IP Rating: IP20
  • Includes Protective Cover: Yes
  • Dimensions (H x W x D): 80 mm x 45 mm x 86 mm
  • Net Weight: 0.32 kg
  • Intended Use: motor control and resistive load applications within specified ratings
