Shop SCHNEIDER ELECTRIC

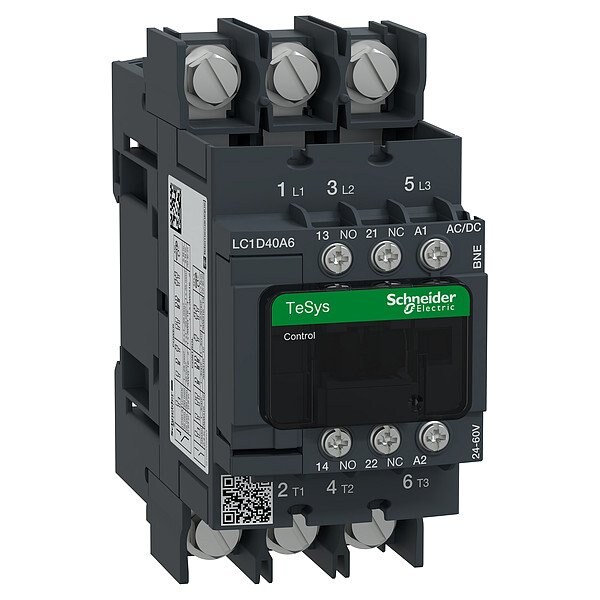

CONT 3P 40A AC3 NO+NC 24-60V ACDC LUGS

  • Mfr # LC1D40A6BNE

  • Zoro # G022824339

product price:
$
499.99
/ea
Free Shipping & Returns

Key Features

Minimum Operating Temperature
-40 Degrees F
Electrical Operating Durability
500,000, 850,000
Frequency
50/60 Hz
Includes Auxiliary Contacts
Yes
Phase
Three
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D40A6BNE
Zoro #
G022824339
UPC #
-
Country of Origin
Multiple
Minimum Operating Temperature
-40 Degrees F
Electrical Operating Durability
500,000, 850,000
Frequency
50/60 Hz
Includes Auxiliary Contacts
Yes
Phase
Three
Mechanical Operating Durability
6,000,000
Horsepower @ Three Phase - 480V AC
30 hp
Series
Tesys Deca
Number of Auxillary Contacts
2
Full Load Current - Inductive
40 A
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed
Number of Poles
3
Coil Voltage
24-60V AC/DC
Terminal Connection Type
Box Lugs
NEMA Enclosure Rating
No Enclosure
Auxiliary Contact Form
1NO/1NC
Contactor Style
IEC
Maximum Voltage Rating
480V AC
Embedded Surge Suppressor
Yes
Reversing Capability
Non-Reversing
Item
IEC Contactor
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Maximum Operating Temperature
140 Degrees F
Full Load Current - Resistive
Not Rated
Number of Normally Open Main Contacts
3

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24-60V AC/DC, Number of Poles 3, Full Load Current - Inductive 40 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 480V AC 30 hp
