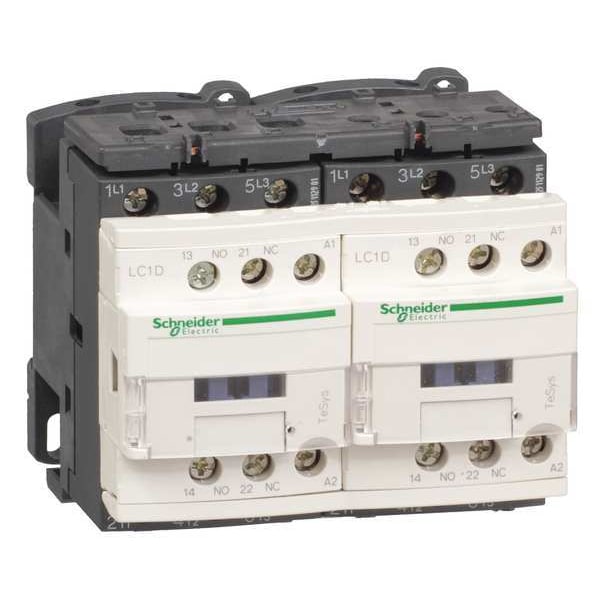

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp LC2D09G7V - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D09G7V

  • Zoro # G1099122

product price:  $305.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC2D09G7V
Zoro #
G1099122
UPC #
785901294313
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
3.54 in
Overall Depth
3.39 in
Overall Height
3.03 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
HP @ 3 Phase - 575V
7 1/2 hp
Frame / Series / Class / Code
TeSys
Enclosure NEMA Rating
No Enclosure
Reversing
Yes
HP @ 1 Phase - 230V
1
Includes
Electrical Interlock, Mechanical Interlock
Series
TeSys Deca
Electrical Durability
0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V)
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50 Hz), 4 kW (at 380 to 400V AC 50 Hz), 4 kW (at 415 to 440V AC 50 Hz), 5.5 kW (at 500V AC 50 Hz), 5.5 kW (at 660 to 690V AC 50 Hz)
Rated Short-Time Withstand Current
30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Net Weight
0.687 kg
Non-Overlap Time
1.5 ms
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
IP Rating
IP20
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Fuse Amps
25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
Watts Loss
2 to 3W
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Operating Speed
3600 cycles per hr
Impedance
2.5 mOhm
Signalling Circuit Frequency
25 to 400 Hz
Switching Voltage
17 V (Signalling Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Overvoltage Category
CAT III
Rated Insulation Volts
600/690V
Features
Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
Tightening Torque
1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
Fire Rating
UL 94 V1
Includes Protective Cover
Yes
Mechanical Durability
15 Mcycles
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Inrush VA
70 VA
Rated Breaking Capacity
250 A @ 440V
Switching Current
5 mA (Signalling Circuit)
Impulse Withstand Voltage
6 kV
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Application
Motor Control, Resistive Load
Horsepower @ Three Phase - 208V AC
2 hp
Embedded Surge Suppressor
No
Full Load Current - Inductive
9:00 AM
Minimum Operating Temperature
-40 Degrees F
Contactor Style
IEC
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 480V AC
5 hp
Phase
Three
Horsepower @ Single Phase - 120V AC
1/2 hp
Mechanical Operating Durability
15,000,000
NEMA Enclosure Rating
No Enclosure
Maximum Operating Temperature
140 Degrees F
Includes Auxiliary Contacts
Yes
Mounting Style
DIN Rail, Plate
Number of Normally Open Main Contacts
3
Resistance Properties
Fire Resistant
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Horsepower @ Three Phase - 240V AC
2 hp
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
1 hp
Electrical Operating Durability
2,000,000, 600,000
Full Load Current - Resistive
20 A
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a reversing contactor designed for motor control and resistive load applications. It operates with a coil voltage of 120V AC, rated for operation within the specified industrial environments. The contactor features screw clamp terminals for secure electrical connections and has an operational depth of 3.54 inches. With its TeSys frame/series/class/code, this device is rated to operate with a maximum inductive load of 9A and resistive load of 20A.

Key Features:

  • Reversing action: This feature is designed to enable change in direction of the motor, subject to correct usage and conditions.
  • Auxiliary Contact Configuration: Comes with one normally open (1NO) and one normally closed (1NC) auxiliary contacts which are used to indicate the position or status of the main contacts.
  • Electrical Durability: Tested for electrical durability up to specified cycles under certain voltage levels and conditions.
  • Horsepower Ratings: Designed for compatibility with motors within specified power ranges based on voltage level.
  • Mechanical Durability: Tested for mechanical durability upto a certain number of cycles; longevity may vary depending on usage environment.
  • Mounting Style: Designed for DIN rail or plate mounting options offering flexibility during installation.
  • -Rated Voltage: Rated for operation within specific voltage ranges
  • -Tightening Torque : Tightening torque requirements fall within specific ranges depending on circuit type.
