- MFR #
- LC1D50G7
- Zoro #
- G0850258
- UPC #
- 785901421450
- Country of Origin
- Korea, Republic of
- Item

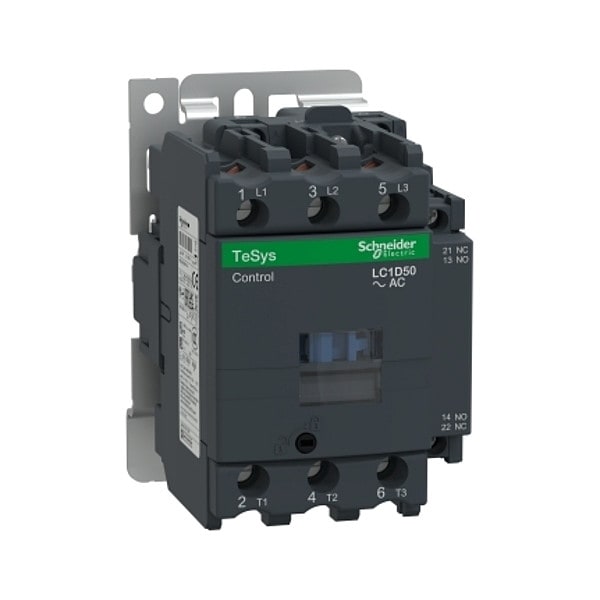

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 50 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 3
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- Series
- TeSys Deca
- HP @ 3 Phase - 575V
- 40 hp
- IP Rating
- IP20
- Horsepower @ Three Phase - 600V AC
- 40 hp
- Full Load Current - Inductive
- 50 A
- Minimum Operating Temperature
- 23 Degrees F
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Maximum Operating Temperature
- 140 Degrees F
- Includes Auxiliary Contacts
- Yes
- Horsepower @ Three Phase - 240V AC
- 15 hp
- Horsepower @ Single Phase - 120V AC
- 3 hp
- NEMA Enclosure Rating
- No Enclosure
- Full Load Current - Resistive
- 80 A
- Mechanical Operating Durability
- 6,000,000
- Maximum Voltage Rating
- 120V AC
- Embedded Surge Suppressor
- No
- Contactor Style
- IEC
- Number of Normally Closed Main Contacts
- 0
- Horsepower @ Single Phase - 240V AC
- 7 1/2 hp
- Number of Normally Open Main Contacts
- 1
- Phase
- Three
- Frequency
- 50/60 Hz
- Horsepower @ Three Phase - 208V AC
- 15 hp
- Mounting Style
- DIN Rail
- Auxiliary Contacts Type
- Mirror contact 1 NC IEC 60947-4-1; Mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Mechanical Robustness
- Shocks contactor opened 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms); Vibrations contactor opened 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz)
- Fire Rating
- UL 94 V1
- Fuse Amps
- 10 A (Control Circuit), 100 A (Type 1 and 2 Power Circuit)
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Heat Dissipation
- 4 to 5 W at 50/60 Hz for control circuit
- Switching Voltage
- 17 V (Control Circuit)
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Insulation Resistance Range
- Greater Than 10 Mohms (Control Circuit)
- Utilisation Category
- AC-3; AC-2; AC-4; AC-1; AC-3e
- Operating Speed
- 3600 cycles per hr
- Includes Protective Cover
- Yes
- Features
- Without Built-In Bi-Directional Peak Limiting Diode Suppressor
- Tightening Torque
- 1.2 Nm (Control Circuit), 5 Nm (Power Circuit)
- Mechanical Durability
- 6 Mcycles
- Rated Insulation Volts
- 600V, 690V
- Application
- Motor Control, Resistive Load
- Rated Breaking Capacity
- 900 A @ 440V
- Non-Overlap Time
- 1.5 ms
- Hold VA
- 13 VA (at 50 Hz 20°C), 15 VA (at 60 Hz 20°C)
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at 60°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at 60°C 50 Hz), 0.85 to 1.1 Uc (at 60°C 60 Hz)
- Rated Making Capacity
- 140 A (AC Control Circuit), 900 A @ 440V (Power Circuit)
- Power Dissipation Per Pole
- 3.7 W AC-3; 9.6 W AC-1; 3.7 W AC-3e
- Impulse Withstand Voltage
- 6 kV
- Inrush VA
- 140 VA (at 20°C), 160 VA (at 20°C)
- Overvoltage Category
- CAT III
- Net Weight
- 1.4 kg
- Inrush Power in VA
- 140 VA cos phi 0.75 (at 68°F (20°C)); 160 VA cos phi 0.75 (at 68°F (20°C))
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Control Circuit Type
- AC 50/60 Hz
- Contactor Application
- Motor control; Resistive load
- Climatic Withstand
- IACS E10 exposure to damp heat
- Compatibility Code
- LC1D
- Protective Cover
- With
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Operating Altitude
- 9842.52 ft (3000 m) without derating
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz
- Watts Loss
- 4 to 5W
- Pole Contact Composition
- 3 NO
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free
- Control Circuit Voltage
- 120 V AC 50/60 Hz
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for control circuit; 80 A (at 140°F (60°C)) for power circuit
- Max. Operating Watts
- 22 kW (at 380 to 400V AC 50/60 Hz AC-3), 25 kW (at 415V AC 50/60 Hz AC-3), 30 kW (at 440V AC 50/60 Hz AC-3), 30 kW (at 500V AC 50/60 Hz AC-3), 33 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 220 to 230V AC 50/60 Hz AC-3), 11 kW (at 400V AC 50/60 Hz AC-4)
- Rated Operational Current
- 80 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 50 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
- Operating Time
- 12 to 26 ms (Closing), 4 to 19 ms (Opening)
- Switching Current
- 5 mA (Control Circuit)
- Impedance
- 1.5 mOhm
- Ambient Air Temperature For Operation
- 22 to 140°F (-5 to 60°C); -40 to 158°F (-40 to 70°C) at Uc
