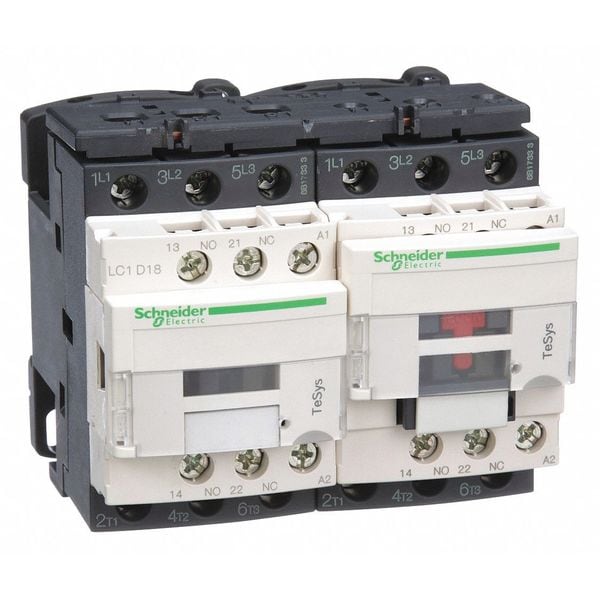

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp LC2D18G7 - main

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D18G7

  • Zoro # G0849101

product price:  $435.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC2D18G7
Zoro #
G0849101
UPC #
785901207467
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
3.54 in
Overall Height
3.03 in
Overall Depth
3.39 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
Enclosure NEMA Rating
No Enclosure
Reversing
Yes
Series
TeSys Deca
HP @ 3 Phase - 575V
15 hp
Frame / Series / Class / Code
TeSys
Non-Overlap Time
1.5 ms
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Application
Motor Control, Resistive Load
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Tightening Torque
1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
Net Weight
0.707 kg
Operating Speed
3600 cycles per hr
IP Rating
IP20
Rated Short-Time Withstand Current
40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Overvoltage Category
CAT III
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Inrush VA
70 VA
Mechanical Durability
15 Mcycles
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Watts Loss
2 to 3W
Rated Breaking Capacity
300 A @ 440V
Switching Current
5 mA (Signalling Circuit)
Max. Operating Watts
4 kW (at 220 to 230V AC 50 Hz), 7.5 kW (at 380 to 400V AC 50 Hz), 9 kW (at 415 to 440V AC 50 Hz), 10 kW (at 500V AC 50 Hz), 10 kW (at 660 to 690V AC 50 Hz)
Includes Protective Cover
Yes
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Rated Insulation Volts
600/690V
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Features
Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
Fire Rating
UL 94 V1
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Impedance
2.5 mOhm
Signalling Circuit Frequency
25 to 400 Hz
Electrical Durability
1.65 Mcycles (18 A, AC-3, Less than 440 V); 1 Mcycles (32 A, AC-1, Less than 440 V)
Impulse Withstand Voltage
6 kV
Mounting Style
DIN Rail, Plate
Horsepower @ Single Phase - 120V AC
1 hp
Horsepower @ Single Phase - 240V AC
3 hp
Full Load Current - Inductive
18 A
Contactor Style
IEC
Resistance Properties
Fire Resistant, Insulation Resistant
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
15,000,000
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 208V AC
5 hp
Horsepower @ Three Phase - 600V AC
15 hp
Electrical Operating Durability
1,000,000, 1,650,000
Includes Auxiliary Contacts
Yes
Frequency
50/60 Hz
Horsepower @ Three Phase - 240V AC
5 hp
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 480V AC
10 hp
Embedded Surge Suppressor
No
Number of Normally Open Main Contacts
3
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
32 A
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 32 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor (TeSys Deca) is a three-pole, reversing-contact actuator designed to switch power circuits. It has a coil rated at 120 V AC within specified operational parameters and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. The device is rated for operation with motor control and resistive loads and features screw clamp terminals, does not include a built-in surge suppression feature, and no enclosure. It complies with IEC standards (Note: Compliance does not imply safety or performance guarantees) and can be mounted on DIN rail or a plate, with a maximum voltage rating of 690 V AC and an operating frequency of 50/60 Hz. Its compact 3-pole configuration is part of the TeSys Deca family, and the assembly carries a protective cover and auxiliary contacts.

Action: Reversing

  • Application: Motor Control, Resistive Load
  • Coil Voltage: 120 V AC
  • Poles and auxiliary contacts: 3 poles; 1NO/1NC auxiliary contacts (Includes Auxiliary Contacts: Yes)
  • Coil/Contact configuration: 1NC/1NO auxiliary form
  • Contactor style and series: IEC; TeSys Deca
  • Maximum voltage and frequency: 690 V AC; 50/60 Hz
  • Electrical ratings: Full Load Amps – Resistive 32 A; Inductive 18 A
  • Electrical connection: Screw Clamp Terminals
  • Enclosure/IP and mounting: IP20; No Enclosure; Mounting on DIN Rail, Plate
  • Physical dimensions and weight: Depth 3.39 in; Height 3.03 in; Width 3.54 in; Net Weight 0.707 kg
  • Fire rating: UL 94 V1
  • Included accessories: Protective Cover Yes
