- MFR #

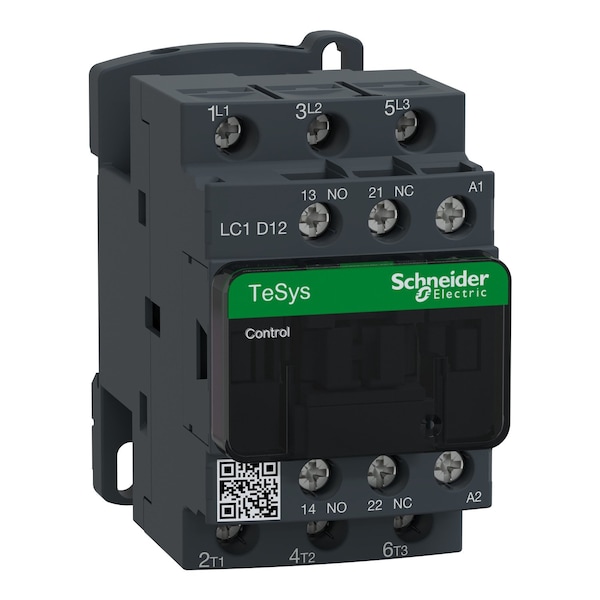

- LC1D12G7
- Zoro #
- G1727336
- UPC #
- 785901207047
- Country of Origin
- Indonesia
- Item
- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 12 A
- Full Load Amps-Resistive
- 25 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
- Enclosure NEMA Rating
- No Enclosure
- HP @ 1 Phase - 230V
- 2
- Reversing
- No
- HP @ 3 Phase - 575V
- 10 hp
- Frame / Series / Class / Code
- TeSys
- Series
- TeSys Deca
- Rated Insulation Volts
- 600/690V
- Application
- Motor Control, Resistive Load
- Net Weight
- 0.325 kg
- Impedance
- 2.5 mOhm
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Rated Making Capacity
- 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- Non-Overlap Time
- 1.5 ms
- Hold VA
- 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Includes Protective Cover
- Yes
- Electrical Durability
- 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (12 A, AC-3e, Less than 440 V)
- Overvoltage Category
- CAT III
- Rated Short-Time Withstand Current
105 A (at 40 Degrees C for 10 s Power Circuit), 210 A (at 40 Degrees C for 1 s Power Circuit), 30 A (at 40 Degrees C for 10 min Power Circuit), 61 A (at 40 Degrees C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Mechanical Durability
- 15 Mcycles
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Features
- Without Built-In Suppressor Module
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
- Impulse Withstand Voltage
- 6 kV
- Tightening Torque
- 1.7 Nm
- Signalling Circuit Frequency
- 25 to 400 Hz
- Max. Operating Watts
3 kW (at 220 to 230V AC 50/60 Hz AC-3), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3), 7.5 kW (at 500V AC 50/60 Hz AC-3), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 3.7 kW (at 400V AC 50/60 Hz AC-4), 3 kW (at 220 to 230V AC 50/60 Hz AC-3e), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3e), 7.5 kW (at 500V AC 50/60 Hz AC-3e), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)
- Watts Loss
- 2 to 3W
- Rated Breaking Capacity
- 250 A @ 440V
- Fuse Amps
- 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
- IP Rating
- IP20
- Operating Speed
- 3600 cycles per hr
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Inrush VA
- 70 VA
- Operating Time
- 12 to 22 ms (Closing), 4 to 19 ms (Opening)
- Fire Rating
- UL 94 V1
- Contactor Style
- IEC
- Horsepower @ Three Phase - 600V AC
- 10 hp
- Mechanical Operating Durability
- 15,000,000
- Number of Normally Open Main Contacts
- 3
- Maximum Voltage Rating
- 690V AC
- Horsepower @ Three Phase - 240V AC
- 3 hp
- Full Load Current - Inductive
- 12 A
- Horsepower @ Three Phase - 480V AC
- 7 1/2 hp
- Frequency
- 50/60 Hz
- Phase
- Three
- Full Load Current - Resistive
- 25 A
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 140 Degrees F
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Mounting Style
- DIN Rail, Plate
- Embedded Surge Suppressor
- No
- Horsepower @ Single Phase - 240V AC
- 2 hp
- Horsepower @ Three Phase - 208V AC
- 3 hp
- Electrical Operating Durability
- 2,000,000, 800,000
- Includes Auxiliary Contacts
- Yes
- NEMA Enclosure Rating
- No Enclosure
- Horsepower @ Single Phase - 120V AC
- 1/2 hp
- Conventional Free Air Thermal Current
- 25 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
