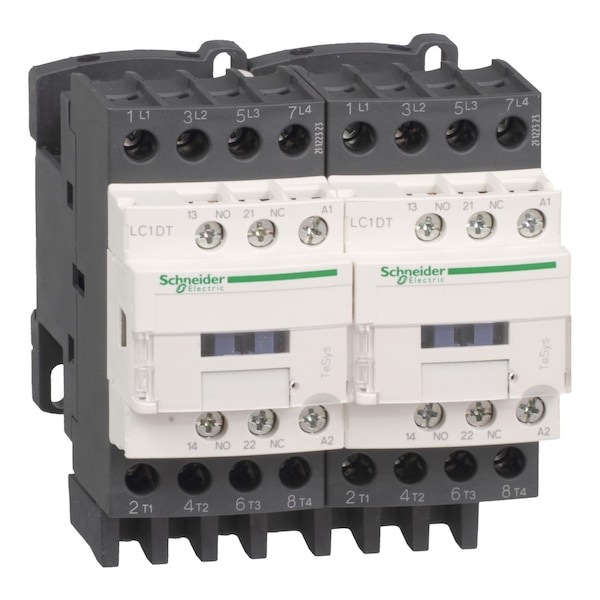

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 4 P, Reversing, Screw Clamp

  • Mfr # LC2DT40G7

  • Zoro # G0849156

product price:  $581.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
4
Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
40 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC2DT40G7
Zoro #
G0849156
UPC #
785901503088
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
98 mm
Overall Height
91 mm
Overall Width
90 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
120V AC
Number of Poles
4
Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
40 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CSA, CCC, EAC, UKCA, CB, EU-RO-MR by DNV-GL, TH IEC 60068-2-30
Series
LC2D
Application
Resistive Load
Features
Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar
Rated Short-Time Withstand Current
50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Net Weight
0.85 kg
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Breaking Capacity
450 A @ 440V
Operating Time
12 to 22 ms (Closing), 4 to 19 ms (Opening)
Fire Rating
UL 94 V1
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Operating Speed
3600 cycles per hr
Electrical Durability
1.4 Mcycles (40 A, AC-1, Less than 440 V)
Includes Protective Cover
Yes
IP Rating
IP20
Impulse Withstand Voltage
6 kV
Mechanical Durability
15 Mcycles
Overvoltage Category
CAT III
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 60°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz)
Non-Overlap Time
1.5 ms
Switching Current
5 mA (Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Watts Loss
2 to 3W
Switching Voltage
17 V (Signalling Circuit)
Signalling Circuit Frequency
25 to 400 Hz
Tightening Torque
1.7 Nm
Inrush VA
70 VA
Impedance
2 mOhm
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Rated Insulation Volts
600/690V
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Full Load Current - Inductive
40 A
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit)
Maximum Voltage Rating
690V AC, 300V DC
Mounting Style
Plate, Rail

Description

The Schneider Electric IEC Magnetic Contactor is a reversing, four‐pole electrical switch with a 120 V AC coil, auxiliary contacts configured as 1NC/1NO, and screw clamp terminals. It is rated for use within IEC-standard control configurations and is compatible with the LC2D series for resistive-load applications.

Action: Reversing

  • Poles: 4
  • Auxiliary contact form: 1NC/1NO
  • Coil voltage: 120 V AC
  • Electrical connection: Screw Clamp Terminals
  • Application: Resistive Load
  • Series: LC2D
  • Rated voltage: 690 V AC / 300 V DC
  • Full Load Amps (Inductive): rated for operation up to 40 A at specified conditions
  • Rated Making Capacity: rated for making capacity under specified test conditions
  • Dimensions: 90 mm W x 91 mm H x 98 mm D
  • Net weight: 0.85 kg
  • IP rating: IP20
  • Fire rating: Complies with UL 94 V-1 flammability standard
  • Mounting: Plate, Rail
  • Includes protective cover: Yes
