Item

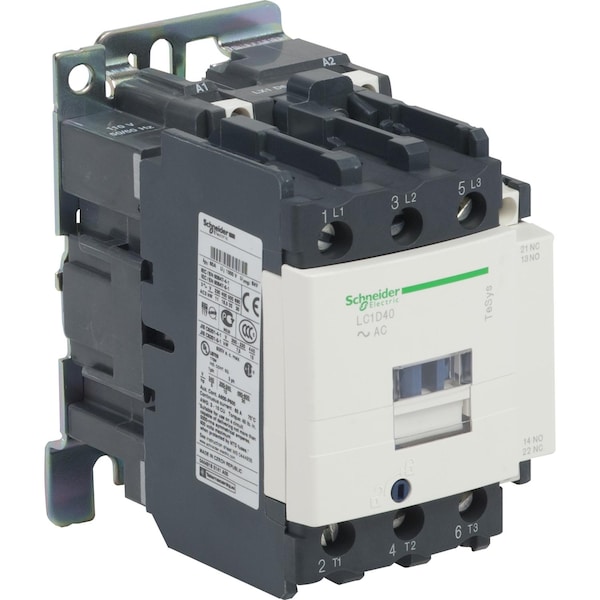

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Standards
EN 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, EN 60947-5-1, IEC 60947-4-1, UL 508, LROS, DNV, GL, BV, CCC, RINA, CSA, UL, GOST, UKCA
HP @ 3 Phase - 575V
30 hp
Application
Motor Control, Resistive Load
Features
Without Built-In Bi-Directional Peak Limiting Diode Suppressor
Operating Time
4 to 19 ms (Opening), 12 to 26 ms (Closing)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Operating Speed
3600 cycles per hr
Switching Voltage
17 V (Control Circuit)
Switching Current
5 mA (Control Circuit)
Impulse Withstand Voltage
8 kV
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Inrush VA
140 VA (at 20°C), 160 VA (at 20°C)
Fuse Amps
10 A (Control Circuit), 80 A (Type 1 and 2 Power Circuit)
Mechanical Durability
6 Mcycles
Max. Operating Watts
18.5 kW (at 380 to 400V AC 50 Hz AC-3), 22 kW (at 500V AC 50 Hz AC-3), 30 kW (at 660 to 690V AC 50 Hz) AC-3), 22 kW (at 1000V AC 50 Hz AC-3), 22 kW (at 415V AC 50 Hz AC-3), 22 kW (at 440V AC 50 Hz) AC-3), 11 kW (at 220 to 230V AC 50 Hz AC-3), 9 kW (at 400V AC 50 Hz AC-4), 18.5 kW (at 380 to 400V AC 50 Hz AC-3e), 22 kW (at 500V AC 50 Hz AC-3e), 30 kW (at 660 to 690V AC 50 Hz AC-3e), 22 kW(at 1000V AC 50 Hz AC-3e), 22 kW(at 415V AC 50 Hz AC-3e), 22 kW (at 440V AC 50 Hz AC-3e), 11 kW(at 220 to 230V AC 50 Hz AC-3e)
Includes Protective Cover
Yes
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Insulation Resistance Range
Greater Than 10 Mohms (Control Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free
Rated Making Capacity
800 A @ 440V (Power Circuit), 140 A (AC Control Circuit)
Rated Breaking Capacity
800 A @ 440V
Hold VA
13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
Tightening Torque
1.7 Nm (Control Circuit), 5 Nm (Power Circuit)
Rated Insulation Volts
600/690V
Overvoltage Category
CAT III
Heat Dissipation
4 to 5 W at 50/60 Hz for control circuit
Conventional Free Air Thermal Current
10 A (at 140°F (60°C)) for control circuit; 60 A (at 140°F (60°C)) for power circuit
Rated Operational Current
40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 60 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit
Mechanical Robustness
Shocks contactor opened 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms); Vibrations contactor opened 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz)
Control Circuit Type
AC 50/60 Hz
Inrush Power in VA
140 VA cos phi 0.75 (at 68°F (20°C)); 160 VA cos phi 0.75 (at 68°F (20°C))
Operating Altitude
0 to 9842.52 ft (0 to 3000 m)
Utilisation Category
AC-1; AC-4; AC-2; AC-3; AC-3e
Maximum Operating Rate
3600 cyc/h 140°F (60°C)
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
Control Circuit Voltage
220 V AC 50/60 Hz
Contactor Application
Motor control; Resistive load
Terminals Description ISO n°1
(21-22)NC; (13-14)NO; (A1-A2)CO
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Climatic Withstand
IACS E10 exposure to damp heat
Power Dissipation Per Pole
5.4 W AC-1; 2.4 W AC-3; 2.4 W AC-3e
Rated Operational Voltage
Power circuit Less than or Equal to 690 V AC 25 to 400 Hz
Pole Contact Composition
3 NO
Fire Resistance
1562°F (850°C) IEC 60695-2-1
[Ui] Rated Insulation Voltage
control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL, control circuit 690 V IEC 60947-1, power circuit 690 V IEC 60947-1
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Three Phase - 480V AC
30 hp
Full Load Current - Resistive
60 A
Full Load Current - Inductive
40 A
Horsepower @ Three Phase - 240V AC
10 hp
Maximum Operating Temperature
140 Degrees F
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC
