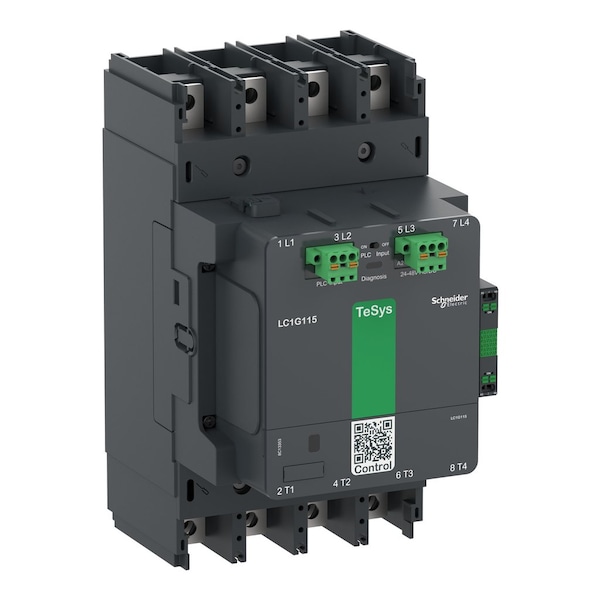

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 200V-500V AC/DC, 4 P, Spring Type LC1G1504LSEA - main

IEC Magnetic Contactor, 1NC/1NO, 200V-500V AC/DC, 4 P, Spring Type

  • Mfr # LC1G1504LSEA

  • Zoro # G010354459

product price:  $1,332.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
200V-500V AC/DC
Number of Poles
4
Terminal Connection Type
Spring Type
Number of Auxillary Contacts
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1G1504LSEA
Zoro #
G010354459
UPC #
3606481922731
Country of Origin
China

Dimensions

Overall Height
10.04 in
Overall Width
5.63 in
Overall Depth
7.6 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
200V-500V AC/DC
Number of Poles
4
Terminal Connection Type
Spring Type
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
IP Rating
IP20
Series
TeSys Giga
Phase
Single
Maximum Voltage Rating
1000V AC
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-13 Degrees F
Contactor Style
IEC
Maximum Operating Temperature
140 Degrees F
Frequency
50/60 Hz
Embedded Surge Suppressor
No
Mounting Style
Plate
Mechanical Operating Durability
8,000,000
Full Load Current - Inductive
150 A
Full Load Current - Resistive
275 A

Description

The Schneider Electric IEC Magnetic Contactor is a four-pole, coil-operated switching device rated for operation within the specified IEC standards. It is rated for operation within the specified voltage range and compatible with spring-type terminal connections. The unit includes two auxiliary contacts configured as 1NC/1NO, is part of the TeSys Giga series, has a maximum voltage rating of 1000 V AC and an IP20 ingress protection rating. It is intended for single-phase applications within its specifications, does not include an integrated surge suppression device, and supports plate mounting as per product design; durability depends on application conditions.

Item: IEC Magnetic Contactor (Schneider Electric)

  • Series: TeSys Giga
  • Poles: 4
  • Phase: Single
  • Coil Voltage: 200–500 V AC/DC
  • Auxiliary Contacts: 2 total (1NC/1NO)
  • Includes Auxiliary Contacts: Yes
  • Terminal Connection Type: Spring Type
  • Maximum Voltage Rating: 1000 V AC
  • Frequency: 50/60 Hz
  • IP Rating: IP20
  • Integrated Surge Suppressor: No
  • Full Load Amps - Inductive: 230 A
  • Full Load Current - Inductive: 150 A
  • Full Load Amps - Resistive: 275 A
  • Full Load Current - Resistive: 275 A
  • Maximum Operating Temperature: 140 °F
  • Minimum Operating Temperature: -13 °F
  • Mechanical Operating Durability: 8,000,000 cycles
  • Mounting Style: Plate
  • Overall Dimensions: Depth 7.6 in, Height 10.04 in, Width 5.63 in
  • Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • Item: IEC Magnetic Contactor
