- Item

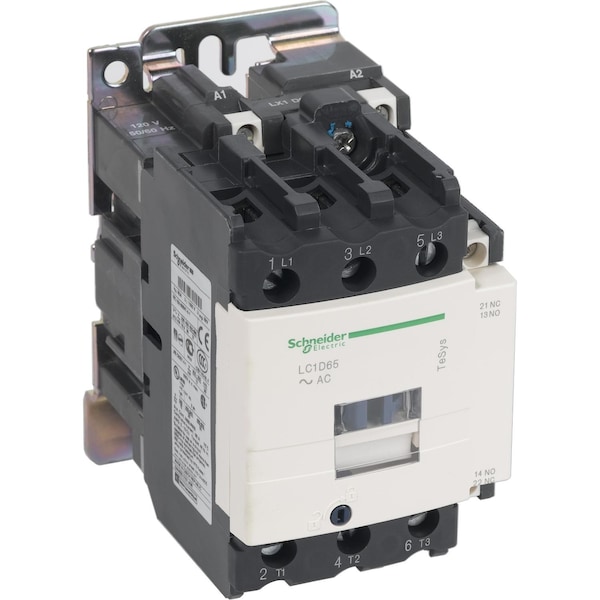

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 220V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 65 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, UL 508, IEC 60947-4-1, DNV, LROS, CCC, CSA, BV, UL, GL, GOST, UKCA, RINA
- HP @ 3 Phase - 575V
- 50 hp
- Series
- LC1D, TeSys
- Application
- Motor Control, Resistive Load
- Features
- Without Built-In Bi-Directional Peak Limiting Diode Suppressor
- Watts Loss
- 4 to 5W
- Fuse Amps
- 125 A (Type 1 and 2 Power Circuit), 10 A (Control Circuit)
- Non-Overlap Time
- 1.5 ms
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 Nm (Power Circuit)
- Insulation Resistance Range
- Greater Than 10 Mohms (Control Circuit)
- Mechanical Durability
- 6 Mcycles
- Operating Speed
- 3600 cycles per hr
- Net Weight
- 1.4 kg
- Fire Rating
- UL 94 V1
- Hold VA
- 13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
- IP Rating
- IP2X
- Switching Current
- 5 mA (Control Circuit)
- Operating Time
- 12 to 26 ms (Closing), 4 to 19 ms (Opening)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Switching Voltage
- 17 V (Control Circuit)
- Rated Insulation Volts
- 600/690V
- Impulse Withstand Voltage
- 8 kV
- Max. Operating Watts
- 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz), 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 415V AC 50 Hz), 37 kW (at 1000V AC 50 Hz AC-3), 25 kW (at 415V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3)
- Rated Breaking Capacity
- 900 A @ 440V
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Inrush VA
- 140 to 160 VA
- Rated Making Capacity
- 140 A @ 440V (AC Control Circuit), 140 A (AC Control Circuit), 900 A @ 440V (Power Circuit)
- Includes Protective Cover
- Yes
- Overvoltage Category
- CAT III
- Control Circuit Voltage Limits
- Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz), Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz)
- Fire Resistance
- 850°C IEC 60695-2-1
- Utilisation Category
- AC-1, AC-2, AC-4, AC-3e
- Maximum Operating Rate
- 3600 cyc/h 60°C
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Power Dissipation Per Pole
- 6.4 W AC-1, 4.2 W AC-3e, 9.6 W AC-1, 3.7 W AC-3
- [Ui] Rated Insulation Voltage
- control circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL IEC 60947-1, control circuit 690 V IEC 60947-1, power circuit 690 V CSA IEC 60947-1, control circuit 600 V CSA
- Climatic Withstand
- IACS E10 exposure to damp heat
- Mechanical Robustness
- shocks contactor closed 15 Gn for 11 ms) , vibrations contactor opened 2 Gn, 5...300 Hz) , vibrations contactor closed 4 Gn, 5...300 Hz) , shocks contactor opened 10 Gn for 11 ms)
- Control Circuit Type
- AC 50/60 Hz
- Auxiliary Contacts Type
- mirror contact 1 NC IEC 60947-4-1, mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Contactor Application
- motor control, resistive load
- Heat Dissipation
- 4-5 W at 50/60 Hz for control circuit
- Protective Cover
- with
- Terminals Description Iso N°1
- (21-22)NC, (A1-A2)CO
- Pole Contact Composition
- 3 NO
- Horsepower @ Single Phase - 240V AC
- 10 hp
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Horsepower @ Three Phase - 208V AC
- 20 hp
- Full Load Current - Inductive
- 65 A
- Full Load Current - Resistive
- 80 A
- Horsepower @ Three Phase - 240V AC
- 20 hp
- Conventional Free Air Thermal Current
- 80 A (at 60°C Power Circuit), 10 A (at 60°C Control Circuit)
- Rated Operational Current
- 65 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 65 A (at <60°C) at <= 440 V AC AC-3e for power circuit, 80 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 50 A (at <60°C) at <= 440 V AC AC-3 for power circuit
- Mounting Style
- Plate
- Control Circuit Voltage
- 48 V AC 50/60 Hz
- Maximum Operating Temperature
- 140 Degrees F
- Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Maximum Voltage Rating
- 690V AC
- Inrush Power in VA
- 160-160 VA cos phi 0.75 (at 20°C), 140-140 VA cos phi 0.75 (at 20°C)
