  7. IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp

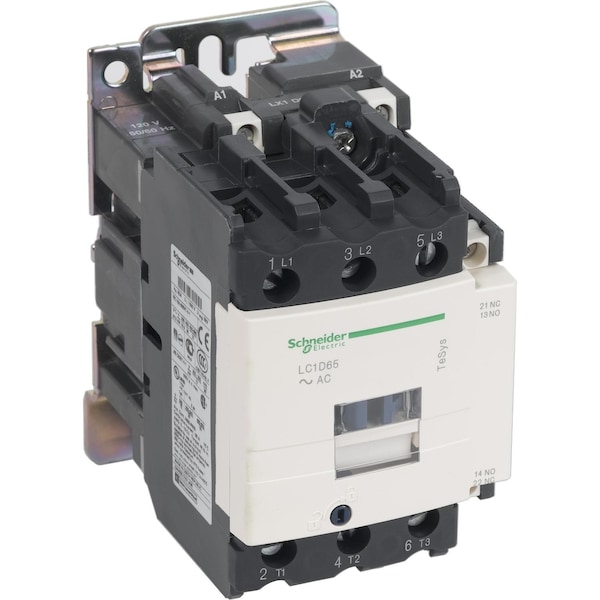

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp LC1D65U7 - main

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D65U7

  • Zoro # G0850355

product price:  $515.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
240V AC
Number of Poles
3
Full Load Amps-Inductive
65 A
Full Load Amps-Resistive
80 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D65U7
Zoro #
G0850355
UPC #
785901437833
Country of Origin
Czechia

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
70 mm
Overall Depth
118 mm
Overall Height
122 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
240V AC
Number of Poles
3
Full Load Amps-Inductive
65 A
Full Load Amps-Resistive
80 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
EN 60947-4-1, CSA C22.2 No 14, IEC 60947-4-1, EN 60947-5-1, UL 508, DNV, UL, RINA, CCC, CSA, LROS, BV, GL, UKCA, TH 3)IEC 60068-2-30
HP @ 3 Phase - 575V
50 hp
Series
LC1D
Application
Resistive Load
Hold VA
13 VA (at 60 Hz 20°C), 15 VA (at 50 Hz 20°C)
IP Rating
IP2X
Tightening Torque
1.7 Nm (Control Circuit), 5 Nm (Power Circuit)
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Insulation Volts
600/690V
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Control Circuit Voltage Limits
Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz), Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz)
Watts Loss
4 to 5W
Fuse Amps
125 A (Type 2 Power Circuit), 160 A (Type 1 Power Circuit), 10 A (Control Circuit)
Operating Speed
3600 cycles per min
Net Weight
2.185 kg
Insulation Resistance Range
Greater Than 10 Mohms (Control Circuit)
Rated Making Capacity
140 A @ 440V (AC Control Circuit), 1000 A @ 440V (Power Circuit)
Max. Operating Watts
11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 380 to 400V AC 50 Hz AC-3), 37 kW (at 500V AC 50 Hz AC-3), 37 kW (at 660 to 690V AC 50 Hz AC-3), 18.5 kW (at 220 to 230V AC 50 Hz AC-3), 30 kW (at 415V AC 50 Hz AC-3), 37 kW (at 1000V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 380 to 400V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz AC-3e), 37 kW (at 660 to 690V AC 50 Hz AC-3e), 18.5 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 415V AC 50 Hz AC-3e), 37 kW (at 1000V AC 50 Hz AC-3e), 37 kW (at 500V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz)
Impulse Withstand Voltage
6 kV
Includes Protective Cover
Yes
Rated Short-Time Withstand Current
520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit)
Rated Breaking Capacity
1000 kA @ 440V
Non-Overlap Time
1.5 ms
Operating Time
12 to 26 ms (Closing), 4 to 19 ms (Opening)
Switching Voltage
17 V (Control Circuit)
Switching Current
5 mA (Control Circuit)
Inrush VA
140 to 160 VA
Overvoltage Category
CAT III
Impedance
1.5 Ohm
Fire Rating
UL 94 V1
Mechanical Durability
6 Mcycles
Horsepower @ Three Phase - 208V AC
20 hp
Horsepower @ Three Phase - 240V AC
20 hp
Horsepower @ Three Phase - 480V AC
40 hp
Full Load Current - Resistive
80 A
Horsepower @ Single Phase - 240V AC
10 hp
Full Load Current - Inductive
65 A
Conventional Free Air Thermal Current
80 A (at 60°C Power Circuit), 10 A (at 60°C Control Circuit)
Maximum Voltage Rating
690V AC
Mounting Style
Plate, Rail

Description

Poles/operation: 3 poles; non-reversing; auxiliary contacts: 1NC/1NO

  • Coil and terminals: 240 V AC coil; screw clamp terminals
  • Mounting: The unit is designed for mounting on plates or rails and includes a protective cover; suitable for resistive load applications.
  • Series/type: LC1D; Item: IEC Magnetic Contactor
  • Rated voltage: 690 V AC; insulation ratings conforming to specified standards.
  • Load ratings: Load ratings are based on standard test conditions within specified parameters.
  • Short-time withstand: Short-time withstand currents are provided under test conditions as per applicable standards.
  • Fusing: Fuse ratings are specified according to standard classifications and intended use cases.
  • Protection/fire: IP2X; UL 94 V1
  • Physical: Width 70 mm; Depth 118 mm; Height 122 mm; Net weight 2.185 kg
  • Performance: Operating speed 3600 cycles/min; Non-overlap time 1.5 ms
  • Electrical characteristics: Impedance 1.5 Ω
  • Max watts: multiple ratings by voltage/use category (e.g., 11 kW @ 400 V AC 50 Hz AC-4; up to 37 kW at higher voltages)
  • Impulse/shock/vibration: These values indicate the tested impulse, shock, and vibration levels within standardized testing procedures.
  • Dimensions: Width 70 mm; Height 122 mm; Depth 118 mm (listed above)
