- Item

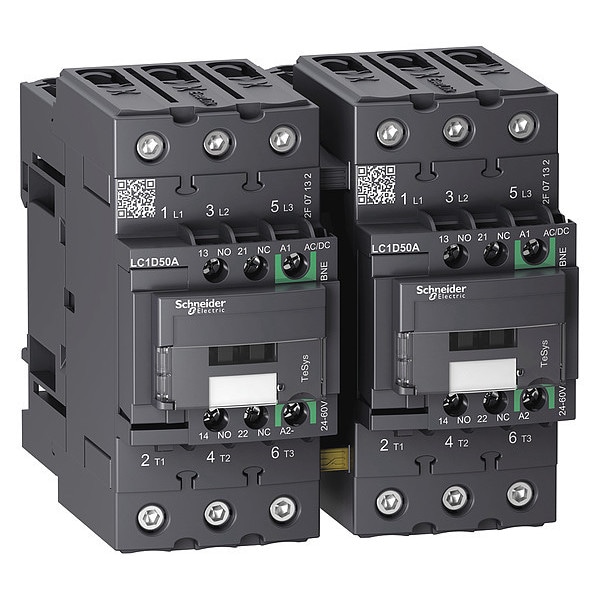

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V-60V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 50 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- Reversing
- Yes
- Enclosure NEMA Rating
- No Enclosure
- Frame / Series / Class / Code
- TeSys
- HP @ 3 Phase - 575V
- 40 hp
- Series
- TeSys Deca
- IP Rating
- IP20
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Maximum Voltage Rating
- 690V AC
- Frequency
- 50/60 Hz
- Horsepower @ Three Phase - 600V AC
- 40 hp
- Horsepower @ Single Phase - 120V AC
- 3 hp
- Mechanical Operating Durability
- 6,000,000
- NEMA Enclosure Rating
- No Enclosure
- Electrical Operating Durability
- 1,800,000, 500,000
- Includes Auxiliary Contacts
- Yes
- Horsepower @ Three Phase - 208V AC
- 15 hp
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Full Load Current - Inductive
- 50 A
- Embedded Surge Suppressor
- No
- Horsepower @ Single Phase - 240V AC
- 7 1/2 hp
- Full Load Current - Resistive
- 80 A
- Number of Normally Open Main Contacts
- 3
- Contactor Style
- IEC
- Horsepower @ Three Phase - 240V AC
- 15 hp
- Maximum Operating Temperature
- 140 Degrees F
- Mounting Style
- DIN Rail, Plate
- Minimum Operating Temperature
- -40 Degrees F
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
- Switching Voltage
- 17 V (Signalling Circuit)
- Impedance
- 1.5 mOhm
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 900 A @ 440V (Power Circuit)
- Features
- Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
- Includes Protective Cover
- Yes
- Operating Time
- 55 to 65 ms (Closing), 20 to 120 ms (Opening)
- Impulse Withstand Voltage
- 6 kV
- Mechanical Durability
- 6 Mcycles
- Max. Operating Watts
- 15 kW (at 220 to 230V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz), 25 kW (at 415V AC 50 Hz), 30 kW (at 440V AC 50 Hz), 30 kW (at 500V AC 50 Hz), 33 kW (at 660 to 690V AC 50 Hz)
- Switching Current
- 5 mA (Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Rated Insulation Volts
- 690V
- Electrical Durability
- 1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V)
- Watts Loss
- 0.7W
- Fuse Amps
- 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
- Fire Rating
- UL 94 V1
- Hold VA
- 1 VA
- Rated Breaking Capacity
- 900 A @ 440V
- Application
- Motor Control, Resistive Load
- Operating Speed
- 3600 cycles per hr
- Net Weight
- 2.164 kg
- Overvoltage Category
- CAT III
- Rated Short-Time Withstand Current
- 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit)
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Inrush VA
- 15 VA
- Signalling Circuit Frequency
- 25 to 400 Hz
- Non-Overlap Time
- 1.5 ms
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit)
