- Item

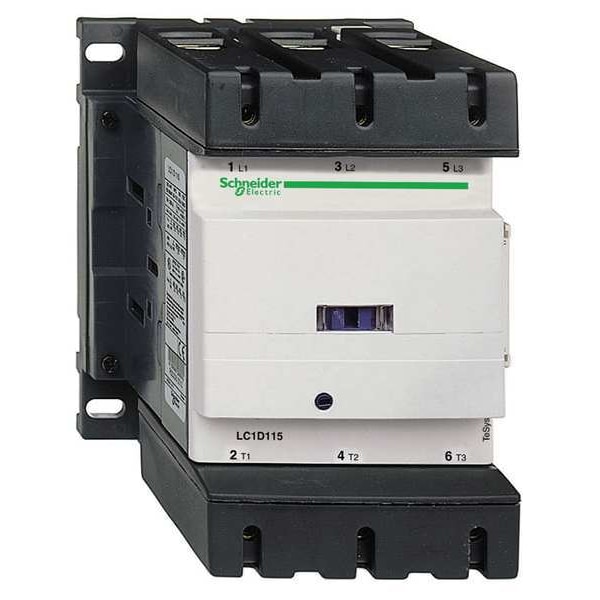

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 208V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 115 A
- Full Load Amps-Resistive
- 200 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
- HP @ 3 Phase - 575V
- 100 hp
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- No
- HP @ 1 Phase - 230V
- Not rated
- Series
- TeSys Deca
- Mechanical Durability
- 8 Mcycles
- Non-Overlap Time
- 1.5 ms
- Switching Voltage
- 17 V (Signalling Circuit)
- Fuse Amps
- 250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)
- Hold VA
- 2 to 18 VA
- Rated Breaking Capacity
- 1100 A @ 440V
- Tightening Torque
- 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
- Max. Operating Watts
30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)
- Rated Insulation Volts
- 600/1000V (Power Circuit), 600/690V (Signalling Circuit)
- Net Weight
- 2.5 kg
- IP Rating
- IP20
- Operating Speed
- 2400 cycles per hr
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- Includes Protective Cover
- Yes
- Rated Short-Time Withstand Current
- 250 A (at 40°C for 10 min Power Circuit), 550 A (at 40°C for 1 min Power Circuit), 950 A (at 40°C for 10 s Power Circuit), 1100 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55°C 50/60 Hz), 1 to 1.15 Uc (at 55-70°C 50/60 Hz)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)
- Switching Current
- 5 mA (Signalling Circuit)
- Inrush VA
- 280 to 350 VA
- Features
- Built-In Bi-Directional Peak Limiting Diode Suppressor
- Signalling Circuit Frequency
- 25 to 400 Hz
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Application
- Motor Control, Resistive Load
- Fire Rating
- UL 94 V1
- Watts Loss
- 3 to 8W
- Overvoltage Category
- CAT III
- Electrical Durability
- 0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)
- Impedance
- 0.6 mOhm
- Operating Time
- 6 to 20 ms (Opening), 20 to 50 ms (Closing)
- Impulse Withstand Voltage
- 8 kV
- Rated Making Capacity
- 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Horsepower @ Single Phase - 120V AC
- Not Rated
- Contactor Style
- IEC
- Electrical Operating Durability
- 800,000, 950,000
- Mechanical Operating Durability
- 8,000,000
- Minimum Operating Temperature
- -40 Degrees F
- Horsepower @ Three Phase - 600V AC
- 100 hp
- Horsepower @ Single Phase - 240V AC
- 3 hp
- Number of Normally Open Main Contacts
- 3
- Embedded Surge Suppressor
- Yes
- Frequency
- 50/60 Hz
- Full Load Current - Resistive
- 200 A
- Full Load Current - Inductive
- 115 A
- Horsepower @ Three Phase - 208V AC
- 30 hp
- Phase
- Three
- Maximum Voltage Rating
- 1000V AC
- Horsepower @ Three Phase - 480V AC
- 75 hp
- Mounting Style
- DIN Rail, Plate
- NEMA Enclosure Rating
- No Enclosure
- Horsepower @ Three Phase - 240V AC
- 40 hp
- Maximum Operating Temperature
- 140 Degrees F
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Includes Auxiliary Contacts
- Yes
- Conventional Free Air Thermal Current
- 200 A (at 60°C Power Circuit)
