- Item

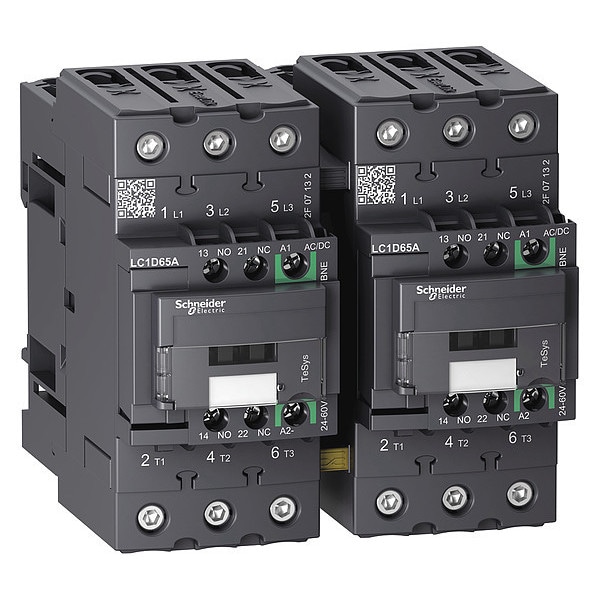

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V-60V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 65 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- Reversing
- Yes
- Frame / Series / Class / Code
- TeSys
- HP @ 3 Phase - 575V
- 50 hp
- Enclosure NEMA Rating
- No Enclosure
- Series
- TeSys Deca
- IP Rating
- IP20
- Horsepower @ Single Phase - 120V AC
- 5 hp
- Frequency
- 50/60 Hz
- Maximum Voltage Rating
- 690V AC
- Minimum Operating Temperature
- -40 Degrees F
- Contactor Style
- IEC
- Resistance Properties
- Fire Resistant
- Includes Auxiliary Contacts
- Yes
- Embedded Surge Suppressor
- No
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Maximum Operating Temperature
- 140 Degrees F
- Horsepower @ Three Phase - 600V AC
- 50 hp
- NEMA Enclosure Rating
- No Enclosure
- Mounting Style
- DIN Rail, Plate
- Number of Normally Open Main Contacts
- 3
- Full Load Current - Inductive
- 65 A
- Full Load Current - Resistive
- 80 A
- Horsepower @ Single Phase - 240V AC
- 10 hp
- Horsepower @ Three Phase - 208V AC
- 20 hp
- Mechanical Operating Durability
- 6,000,000
- Horsepower @ Three Phase - 240V AC
- 20 hp
- Electrical Operating Durability
- 1,800,000, 500,000
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
- Rated Insulation Volts
- 690V
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- Max. Operating Watts
- 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415V AC 50 Hz), 37 kW (at 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz)
- Rated Short-Time Withstand Current
- 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Impedance
- 1.5 mOhm
- Signalling Circuit Frequency
- 25 to 400 Hz
- Fire Rating
- UL 94 V1
- Non-Overlap Time
- 1.5 ms
- Features
- Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
- Net Weight
- 2.174 kg
- Fuse Amps
- 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit)
- Operating Time
- 55 to 65 ms (Closing), 20 to 120 ms (Opening)
- Impulse Withstand Voltage
- 6 kV
- Watts Loss
- 0.7W
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit)
- Inrush VA
- 15 VA
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Electrical Durability
- 1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V)
- Includes Protective Cover
- Yes
- Mechanical Durability
- 6 Mcycles
- Application
- Motor Control, Resistive Load
- Overvoltage Category
- CAT III
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Operating Speed
- 3600 cycles per hr
- Rated Breaking Capacity
- 1000 A @ 440V
- Hold VA
- 1 VA
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit)
