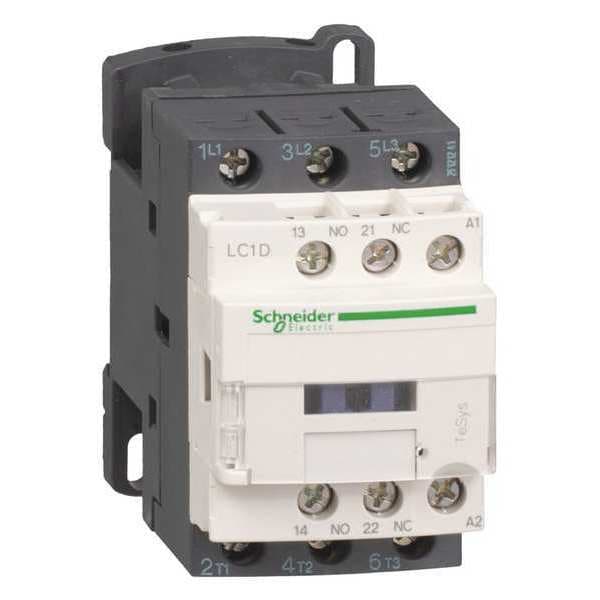

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D38B7

  • Zoro # G0569320

product price:  $244.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Full Load Amps-Inductive
38 A
Full Load Amps-Resistive
50 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D38B7
Zoro #
G0569320
UPC #
785901755470
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
92 mm
Overall Width
45 mm
Overall Height
85 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Full Load Amps-Inductive
38 A
Full Load Amps-Resistive
50 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, CSA, LROS, BV, RINA, UL, GOST, DNV, CCC, GL, THIEC 60068-2-30
Series
LC1D
Mechanical Durability
15 Mcycles
Hold VA
7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Non-Overlap Time
1.5 ms
Signalling Circuit Frequency
25 to 400 Hz
Rated Insulation Volts
600/690V
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Operating Time
4 to 19 ms (Opening), 12 to 22 ms (Closing)
Overvoltage Category
CAT III
Application
Motor Control, Resistive Load
Impulse Withstand Voltage
6 kV
Max. Operating Watts
18.5 kW (at 500V AC 50/60 Hz AC-3), 18.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 7.5 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 9 kW (at 220 to 230V AC 50/60 Hz AC-3), 18.5 kW (at 415 to 440V AC 50/60 Hz AC-3), 18.5 kW (at 500V AC 50/60 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50/60 Hz AC-3e), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 9 kW (at 220 to 230V AC 50/60 Hz AC-3e), 18.5 kW (at 415 to 440V AC 50/60 Hz AC-3e)
Watts Loss
2 to 3W
Includes Protective Cover
Yes
Switching Voltage
17 V (Signalling Circuit)
Fire Rating
UL 94 V1
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Features
Without Built-In Suppressor Module
Operating Speed
3600 cycles per hr
Net Weight
0.38 kg
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Control Circuit Voltage Limits
Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 50/60 Hz)
Impedance
2 mOhm
IP Rating
IP20
Rated Breaking Capacity
550 A @ 440V
Rated Short-Time Withstand Current
60 A (at 40°C for 10 min Power Circuit), 430 A (at 40°C for 1 s Power Circuit), 150 A (at 40°C for 1 min Power Circuit), 310 A (at 40°C for 10 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Switching Current
5 mA (Signalling Circuit)
Electrical Durability
1.4 Mcycles (50 A, AC-1, Less than 440 V); 1.4 Mcycles (38 A, AC-3, Less than 440 V); 1.4 Mcycles (38 A, AC-3e, Less than 440 V)
Inrush VA
70 VA
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Horsepower @ Three Phase - 480V AC
20 hp
Full Load Current - Resistive
50 A
Horsepower @ Three Phase - 208V AC
10 hp
Full Load Current - Inductive
38 A
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Maximum Voltage Rating
690V AC, 300V DC
Mounting Style
Plate, Rail
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 50 A (at 60°C Power Circuit)

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for operation within IEC standards specifications. Compatible with specified voltage ranges for switching operations. Suitable for use in standard control panel configurations as per product specifications. Comes with a protective cover.

Key features

  • Application: Motor Control, Resistive Load
  • Poles: 3; Auxiliary contacts: 2 (1NC/1NO)
  • Coil voltage: 24 V AC
  • Electrical connection: Screw Clamp Terminals
  • Mounting: Plate, Rail
  • Dimensions: Width 45 mm; Height 85 mm; Depth 92 mm
  • Series: LC1D; Item: IEC Magnetic Contactor
  • Rated voltage: 690 V AC, 300 V DC
  • Full load current: 50 A (resistive), 38 A (inductive)
  • IP rating: IP20
  • Comes with a protective cover (no implied safety guarantee): Yes
  • Weight: 0.38 kg
  • Reversing capability: Non-Reversing
