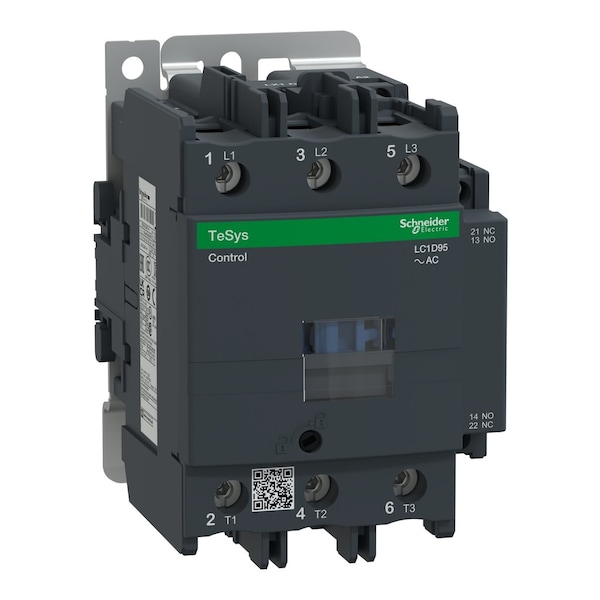

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp LC1D95B7 - main

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D95B7

  • Zoro # G810070382

product price:  $597.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D95B7
Zoro #
G810070382
UPC #
3389110450651
Country of Origin
Czechia

Dimensions

Overall Height
5 in
Overall Depth
5.12 in
Overall Width
3.35 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, UL 60947-4-1, UL 60947-5-1
Series
TeSys Deca
IP Rating
IP20
Full Load Current - Resistive
200 A
Horsepower @ Three Phase - 480V AC
60 hp
Mechanical Operating Durability
4,000,000
Resistance Properties
Fire Resistant, Insulation Resistant
Full Load Current - Inductive
95 A
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 208V AC
30 hp
Electrical Operating Durability
1,200,000 (AC-3), 1,200,000 (AC-3e), 1,300,000 (AC-1)
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Single Phase - 240V AC
15 hp
Horsepower @ Three Phase - 600V AC
60 hp
Contactor Style
IEC
Phase
Three
Includes Auxiliary Contacts
Yes
Embedded Surge Suppressor
No
Maximum Voltage Rating
690V AC
Frequency
50/60 Hz

Description

Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24V AC coil. It is an IEC-standard, electrically operated switch used to control power circuits, rated for operation within specified load conditions. The unit features screw clamp terminals and is compatible with DIN Rail or Plate mounting; IP20 is an ingress protection rating, and includes two auxiliary contacts (1NC/1NO).

Coil voltage: 24V AC

  • Poles: 3
  • Auxiliary contacts: 2 total (1NC, 1NO)
  • Reversing capability: Non-Reversing
  • Maximum voltage rating: 690V AC
  • Phase: Three
  • Mounting: DIN Rail, Plate
  • IP rating: IP20
  • Mechanical durability: designed to withstand a specified number of mechanical operations under normal use
  • Electrical operating durability: rated for electrical switching endurance within specified test conditions
  • Full load current (Inductive/Resistive): rated for operation at the specified full load currents under standard testing conditions
  • Full load amps (Inductive/Resistive): rated for operation at the specified full load amperes within applicable standards
  • Horsepower (at various voltages): rated to handle loads up to the indicated horsepower levels at respective voltages according to standards
  • Series: TeSys Deca
  • Standards: EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4
  • Terminal connection type: Screw Clamp
  • Item: IEC Magnetic Contactor
  • Includes auxiliary contacts: Yes

    • Restrictions
