  7. IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw

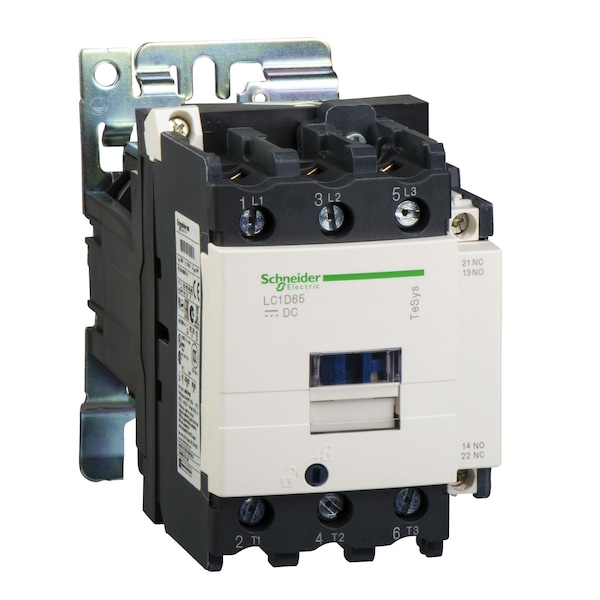

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw LC1D806BD - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw

  • Mfr # LC1D806BD

  • Zoro # G0850398

product price:  $624.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC1D806BD
Zoro #
G0850398
UPC #
785901459880
Country of Origin
Czechia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
186 mm
Overall Width
85 mm
Overall Height
127 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, LROS, CCC, DNV, GL, GOST, RINA, BV, UL, CSA, THIEC 60068-2-30
Series
LC1D
HP @ 3 Phase - 575V
60 hp
Features
Without Built-In Suppressor Module
Application
Motor Control, Resistive Load
Vibration Resistance
3 G (Contactor Closed), 2 G (Contactor Open)
Shock Resistance
10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)
Switching Current
5 mA (Signalling Circuit)
Overvoltage Category
CAT III
Rated Short-Time Withstand Current
640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Non-Overlap Time
1.5 ms
Electrical Durability
0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V)
Rated Breaking Capacity
1100 A @ 440V
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Net Weight
2.59 kg
Max. Operating Watts
22 kW (at 220 to 230V AC 50/60 Hz AC-3), 37 kW (at 380 to 400V AC 50/60 Hz AC-3), 45 kW (at 415 to 440V AC 50/60 Hz AC-3), 55 kW (at 500V AC 50/60 Hz AC-3), 45 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 400V AC 50/60 Hz AC-4), 22 kW (at 220 to 230V AC 50/60 Hz AC-3e), 37 kW (at 380 to 400V AC 50/60 Hz AC-3e), 45 kW (at 415 to 440V AC 50/60 Hz AC-3e), 55 kW (at 500V AC 50/60 Hz AC-3e), 45 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Signalling Circuit Frequency
25 to 400 Hz
Fuse Amps
10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)
Includes Protective Cover
Yes
Mechanical Durability
75 Mcycles
IP Rating
IP20
Rated Insulation Volts
600/1000V (Power Circuit), 600/690V (Signalling Circuit)
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C); Operational DC: 0.85 to 1.1 Uc (at -40 to 55°C), 1 to 1.1 Uc (at 55 to 70°C)
Switching Voltage
17 V (Signalling Circuit)
Impedance
0.8 mOhm
Operating Speed
3600 cycles per hr
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit)
Operating Time
95 to 130 ms (Closing), 20 to 35 ms (Opening)
Impulse Withstand Voltage
8 kV
Fire Rating
UL 94 V1
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Horsepower @ Three Phase - 240V AC
30 hp
Full Load Current - Inductive
80 A
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Horsepower @ Three Phase - 208V AC
30 hp
Horsepower @ Three Phase - 480V AC
60 hp
Full Load Current - Resistive
125 A
Horsepower @ Single Phase - 240V AC
15 hp
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 125 A (at 60°C Power Circuit)
Mounting Style
Plate, Rail
Maximum Voltage Rating
690V AC, 300V DC

Description

The item is an IEC Magnetic Contactor from Schneider Electric (Series LC1D). It is a 3-pole, non-reversing device with a 24 V DC coil and an auxiliary contact form of 1NC/1NO. Rated for operation within the specified voltage ranges of 690 V AC and 300 V DC, it is designed for use with motor control and resistive loads within specified parameters in electrical control panels. The enclosure dimensions are 85 mm wide, 127 mm high, and 186 mm deep, and it weighs 2.59 kg. The unit includes a protective cover.

Poles: 3

  • Reversing: Non-Reversing
  • Coil voltage: 24 V DC
  • Auxiliary contact form: 1NC/1NO
  • Series: LC1D
  • Rated voltage: 690 V AC, 300 V DC
  • Application: Motor Control, Resistive Load
  • IP Rating: IP20
  • Fire rating: Complies with UL 94 V1 flammability classification (or omit if not a guarantee)
  • Includes protective cover: Yes
  • Mounting: Plate, Rail
  • Dimensions: 85 mm W × 127 mm H × 186 mm D
  • Net weight: 2.59 kg
  • Electrical connections: Control Circuit—Lugs/Ring Terminals; Power Circuit—Bars, Lugs/Ring Terminals
  • Full Load Current: Inductive 80 A; Resistive 125 A
  • Overvoltage category: Meets the overvoltage category standards as defined by applicable safety standards (without implying specific performance guarantees)
  • Impedance: Has an impedance of approximately 0.8 milliohms (note: this is a measured value, not a performance guarantee)
  • Impulse withstand: 8 kV
  • Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, and others
  • Non-Overlap time: 1.5 ms
  • Insulation voltage: 600/1000 V (Power Circuit), 600/690 V (Signalling Circuit)
  • Terminal type: Screw
  • Working height: Up to 9842.52 ft
