- Item

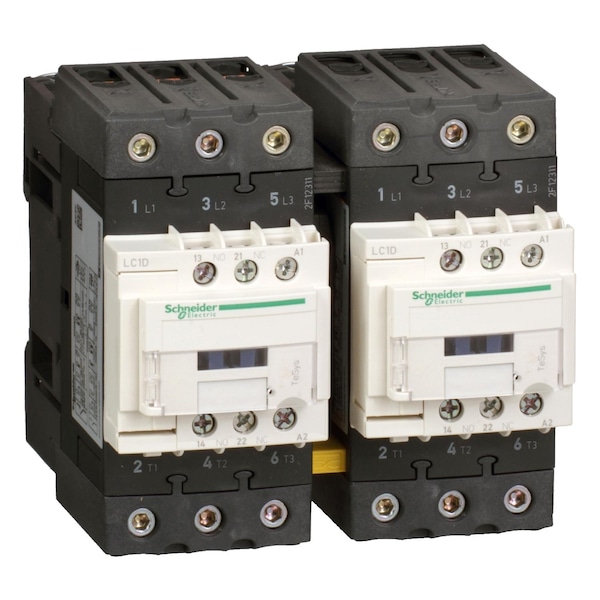

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 65 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30
- Series
- LC2D, TeSys, TeSys Deca
- HP @ 3 Phase - 575V
- 50 hp
- Features
- Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar
- Application
- Motor Control, Resistive Load
- Operating Time
- 16 to 24 ms (Opening), 42.5 to 57.5 ms (Closing)
- Overvoltage Category
- CAT III
- Net Weight
- 2.04 kg
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Electrical Durability
- 1.45 Mcycles (65 A, AC-3, Less than 440 V); 1.4 Mcycles (80 A, AC-1, Less than 440 V)
- Non-Overlap Time
- 1.5 ms
- Switching Current
- 5 mA (Signalling Circuit)
- Fire Rating
- UL 94 V1
- Rated Short-Time Withstand Current
- 520 A (at 40°C for 10 s Power Circuit), 900 A (at 40°C for 1 s Power Circuit), 110 A (at 40°C for 10 min Power Circuit), 260 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Control Circuit Voltage Limits
- Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70°C); Operational DC: 0.75 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Impedance
- 1.5 mOhm
- IP Rating
- IP20
- Includes Protective Cover
- Yes
- Rated Insulation Volts
- 600/690V
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit)
- Operating Speed
- 3600 cycles per hr
- Fuse Amps
- 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Mechanical Durability
- 10 Mcycles
- Tightening Torque
- 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- Max. Operating Watts
- 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415 to 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz)
- Impulse Withstand Voltage
- 6 kV
- Rated Breaking Capacity
- 1000 A @ 440V
- Pole Contact Composition
- 3 NO
- Ambient Air Temperature For Operation
- -40-60°C, 60-70°C with derating
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
- Protective Treatment
- TH IEC 60068-2-30
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- Power Dissipation Per Pole
- 9.6 W AC-1, 6.3 W AC-3, 6.3 W AC-3e
- Control Circuit Type
- DC standard
- [Icw] Rated Short-Time Withstand Current
- 520 A 40°C - 10 s for power circuit, 900 A 40°C - 1 s for power circuit, 110 A 40°C - 10 min for power circuit, 260 A 40°C - 1 min for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
- Interlocking Type
- mechanical
- Time Constant
- 34 ms
- Maximum Operating Rate
- 3600 cyc/h 60°C
- Contactor Application
- resistive load, motor control
- Device Presentation
- preassembled with reversing power busbar
- Utilisation Category
- AC-3, AC-1, AC-3e
- Ambient Air Temperature For Storage
- -60-80°C
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Protective Cover
- with
- Product Name
- TeSys Deca
- Fire Resistance
- 850°C IEC 60695-2-1
- Horsepower @ Three Phase - 208V AC
- 20 hp
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Full Load Current - Resistive
- 80 A
- Full Load Current - Inductive
- 65 A
- Horsepower @ Single Phase - 240V AC
- 10 hp
- Horsepower @ Three Phase - 240V AC
- 20 hp
- Inrush Power in W
- 19-19 W 20°C)
- Hold-In Power Consumption in W
- 7.4-7.4 W 20°C
- Rated Operational Current
- 80 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 65 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 65 A (at <60°C) at <= 440 V AC AC-3e for power circuit
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 80 A (at 60°C Power Circuit)
- Maximum Voltage Rating
- 690V AC, 300V DC
- Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
- Mounting Style
- Plate, Rail
- Maximum Operating Temperature
- 140 Degrees F
