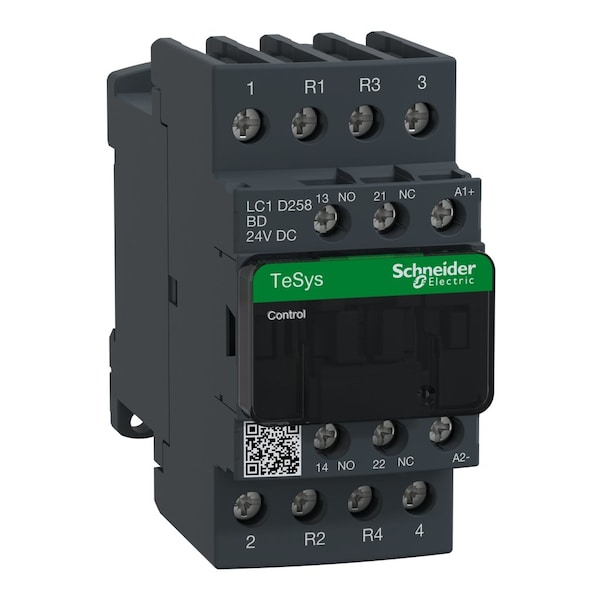

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp LC1D258BD - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D258BD

  • Zoro # G210070272

product price:  $272.99
/ea
Sold in multiples of 20 for $5,459.80
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D258BD
Zoro #
G210070272
UPC #
3389110334135
Country of Origin
Indonesia

Dimensions

Overall Height
3.58 in
Overall Depth
4.21 in
Overall Width
1.77 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 60947-4-1, EN 60947-5-1, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1
IP Rating
IP20
Series
TeSys Deca
Frequency
50 Hz
Resistance Properties
Fire Resistant, Insulation Resistant
Mounting Style
DIN Rail, Plate
Full Load Current - Inductive
40 A
Embedded Surge Suppressor
No
Mechanical Operating Durability
30,000,000
Maximum Voltage Rating
690V AC
Contactor Style
IEC
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
1,400,000 (AC-1)
Full Load Current - Resistive
200 A
Phase
Three

Description

The IEC Magnetic Contactor is a four-pole, non-reversing, electrically operated switch rated for operation within specified electrical parameters. It operates with a 24V DC coil and includes auxiliary contacts as specified.

Coil voltage: 24V DC

  • Contact configuration: 1NC/1NO auxiliary contacts (2 total)
  • Poles: 4
  • Reversing capability: Non-Reversing
  • Mounting style: DIN Rail, Plate
  • Terminal connection type: Screw Clamp
  • Rated for use up to 690V AC within the specified conditions
  • Frequency: 50 Hz
  • Phase: Three
  • IP rating: IP20
  • Embedded surge suppressor: No
  • Mechanical durability: tested for mechanical durability up to approximately 30 million cycles under standard testing conditions
  • Electrical durability (AC-1): rated for electrical switching endurance of approximately 1.4 million cycles in accordance with applicable standards
  • Rated for full load current of up to 150 A in inductive applications within specified parameters
  • Rated for full load current of up to 40 A in inductive applications within specified parameters
  • Rated for full load current of up to 200 A in resistive applications within specified parameters
  • Auxiliary contacts included: Yes
  • Series: TeSys Deca
  • Standards: CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 60947-4-1, EN 60947-5-1, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1
  • Overall dimensions: Height 3.58 in, Width 1.77 in, Depth 4.21 in
  • Resistance properties: Fire Resistant, Insulation Resistant
  • Embedded note: Reversing capability is non-reversing
