Shop SCHNEIDER ELECTRIC

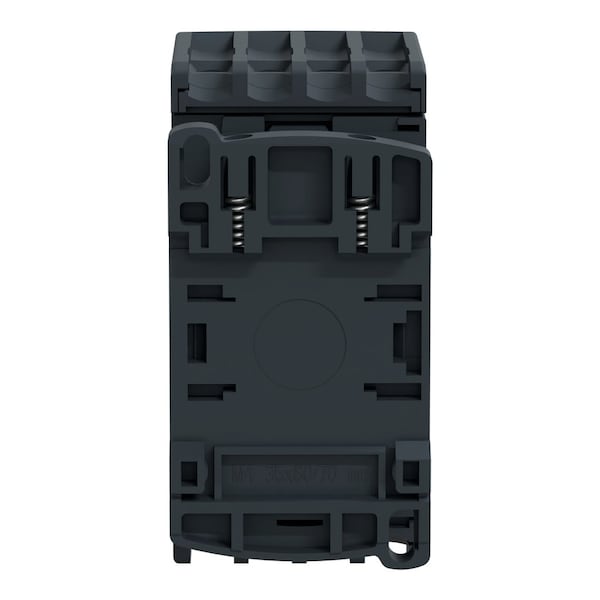

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D258BL

  • Zoro # G610070292

product price:
$
315.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D258BL
Zoro #
G610070292
UPC #
3389110453522
Country of Origin
Indonesia
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
200 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 60947-4-1, EN 60947-5-1, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1
Series
TeSys Deca
IP Rating
IP20
Resistance Properties
Fire Resistant, Insulation Resistant
Maximum Voltage Rating
690V AC
Contactor Style
IEC
Includes Auxiliary Contacts
Yes
Frequency
50 Hz
Mechanical Operating Durability
30,000,000
Mounting Style
DIN Rail, Plate
Electrical Operating Durability
1,400,000 (AC-1)
Full Load Current - Inductive
40 A
Embedded Surge Suppressor
No
Full Load Current - Resistive
200 A
Phase
Three

Description

The IEC Magnetic Contactor is a 4-pole, non-reversing electrical switch with a 24V DC coil. It uses screw clamp terminals and includes two auxiliary contacts configured as 1NC/1NO. It is part of the TeSys Deca series and is categorized as an IEC Magnetic Contactor, rated for use within specified electrical parameters and standards.

Key features:

  • Item: IEC Magnetic Contactor; Series: TeSys Deca; Contactor style: IEC
  • Phase/Poles: Three-phase, 4 poles
  • Coil voltage: 24V DC
  • Reversing capability: Non-Reversing
  • Auxiliary contacts: 2 (1NC/1NO); Includes auxiliary contacts: Yes; Auxiliary contact form: 1NC/1NO
  • Terminal connection: Screw Clamp; Mounting style: DIN Rail, Plate
  • IP rating: IP20
  • Maximum voltage rating: 690V AC
  • Frequency: 50 Hz
  • Electrical durability (AC-1): 1,400,000 cycles
  • Mechanical durability: 30,000,000 cycles
  • Full load current: Inductive 40 A; Resistive 200 A
  • Full load amps (Inductive): 150 A
  • Resistance properties: Conforms to relevant fire resistance and insulation specifications (based on testing or certification)
  • Standards: CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 60947-4-1, EN 60947-5-1, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1
  • Overall dimensions: Depth 4.21 in; Height 3.58 in; Width 1.77 in
  • Embedded surge suppressor: No
