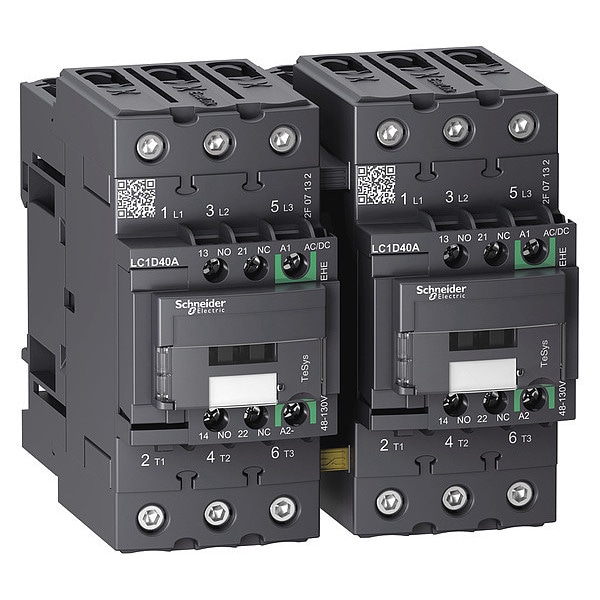

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Reversing, Screw Clamp

  • Mfr # LC2D40AEHE

  • Zoro # G6032877

product price:  $420.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
60 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC2D40AEHE
Zoro #
G6032877
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Overall Height
4.8 in
Overall Depth
4.72 in
Overall Width
4.69 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
40 A
Full Load Amps-Resistive
60 A
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
30 hp
Frame / Series / Class / Code
TeSys
Reversing
Yes
Series
TeSys Deca
IP Rating
IP20
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Three Phase - 240V AC
10 hp
Embedded Surge Suppressor
No
Electrical Operating Durability
2,000,000, 700,000
Horsepower @ Single Phase - 120V AC
3 hp
Full Load Current - Inductive
40 A
Horsepower @ Three Phase - 480V AC
30 hp
Frequency
50/60 Hz
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 600V AC
30 hp
Full Load Current - Resistive
60 A
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-40 Degrees F
Mechanical Operating Durability
6,000,000
Maximum Operating Temperature
140 Degrees F
Number of Normally Open Main Contacts
3
Maximum Voltage Rating
690V AC
NEMA Enclosure Rating
No Enclosure
Contactor Style
IEC
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Inrush VA
23 VA
Mechanical Durability
6 Mcycles
Switching Voltage
17 V (Signalling Circuit)
Application
Motor Control, Resistive Load
Signalling Circuit Frequency
25 to 400 Hz
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Hold VA
1.4 VA
Environmental Attributes
Mercury Free, Pollution Degree 3
Includes Protective Cover
Yes
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Net Weight
2.154 kg
Operating Speed
3600 cycles per hr
Rated Breaking Capacity
800 A @ 440V
Fuse Amps
10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
Impedance
1.5 mOhm
Rated Insulation Volts
690V
Non-Overlap Time
1.5 ms
Overvoltage Category
CAT III
Fire Rating
UL 94 V1
Electrical Durability
2 Mcycles (35 A, AC-3, Less than 440 V); 0.7 Mcycles (60 A, AC-1, Less than 440 V)
Impulse Withstand Voltage
6 kV
Max. Operating Watts
11 kW (at 220 to 230V AC 50 Hz), 18.5 kW (at 380 to 400V AC 50 Hz), 22 kW (at 415V AC 50 Hz), 22 kW (at 440V AC 50 Hz), 22 kW (at 500V AC 50 Hz), 30 kW (at 660 to 690V AC 50 Hz)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Switching Current
5 mA (Signalling Circuit)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit)
Watts Loss
0.9W
Features
Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit)

Description

The IEC Magnetic Contactor is a 3-pole reversing device from the TeSys Deca series used to switch power circuits in motor control and resistive-load applications. It is rated for operation within the specified voltage ranges. Control circuit connections use screw clamp terminals, while the power circuit uses EverLink BTR connectors. It does not include an embedded surge suppressor and comes with a protective cover.

Key features

  • Poles/contacts: 3 poles; main contacts 3 normally open; auxiliary contacts 2 (1NO/1NC)
  • Reversing: Yes
  • Series/frame: TeSys Deca; IEC style
  • Coil voltage: 48–130 V AC/DC; hold and inrush VA: 1.4 VA (hold), 23 VA (inrush)
  • Rated voltage/frequency: 690 V AC; 50/60 Hz
  • Protection and enclosure: IP20; No Enclosure; protective cover included; no embedded surge suppressor
  • Electrical ratings: The electrical ratings are based on standard testing conditions applicable to typical load types. Actual performance may vary depending on application specifics.
  • Mechanical/physical: Height 4.8 in; width 4.69 in; depth 4.72 in; net weight 2.154 kg
  • Connections: Control Circuit—Screw Clamp; Power Circuit—EverLink BTR
  • Fire and standards: This product complies with certain safety standards but does not imply specific safety guarantees during operation. Additional specs: Impulse withstand voltage 6 kV; mounting: DIN rail or plate; Series: TeSys; Reversing: Yes
