  7. IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp

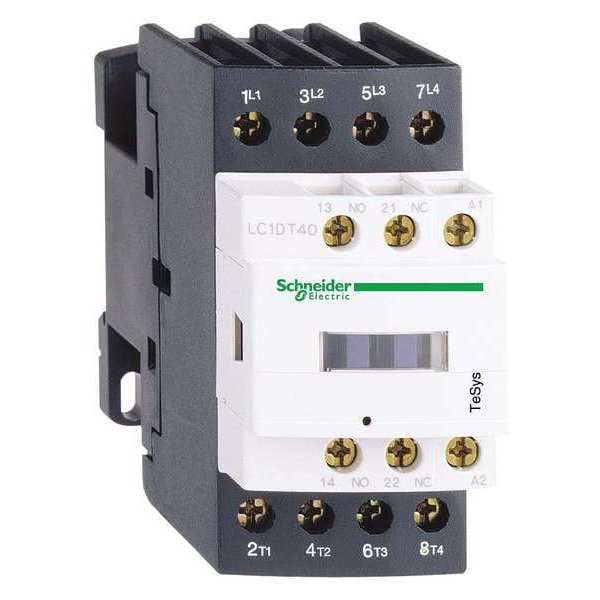

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp LC1DT40BD - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1DT40BD

  • Zoro # G0569031

product price:  $263.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1DT40BD
Zoro #
G0569031
UPC #
785901610564
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Height
3.58 in
Overall Width
1.77 in
Overall Depth
4.21 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
Enclosure NEMA Rating
No Enclosure
Frame / Series / Class / Code
TeSys
Series
TeSys Deca
Reversing
No
Rated Short-Time Withstand Current
50 A (at 40°C for 10 min Power Circuit), 120 A (at 40°C for 1 min Power Circuit), 240 A (at 40°C for 10 s Power Circuit), 380 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Net Weight
0.425 kg
Signalling Circuit Frequency
25 to 400 Hz
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Impulse Withstand Voltage
6 kV
Impedance
2 mOhm
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Includes Protective Cover
Yes
Operating Speed
3600 cycles per hr
Rated Breaking Capacity
450 A @ 440V
Application
Resistive Load
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Electrical Durability
1.4 Mcycles (40 A, AC-1, Less than 440 V)
Tightening Torque
1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit)
Non-Overlap Time
1.5 ms
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Rated Insulation Volts
600/690V
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)
Overvoltage Category
CAT III
Operating Time
16 to 24 ms (Opening), 53.55 to 72.45 ms (Closing)
Mechanical Durability
30 Mcycles
Fire Rating
UL 94 V1
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
Switching Current
5 mA (Signalling Circuit)
IP Rating
IP20
Switching Voltage
17 V (Signalling Circuit)
Full Load Current - Resistive
40 A
Frequency
50/60 Hz
Contactor Style
IEC
Maximum Voltage Rating
690V AC
Electrical Operating Durability
1,400,000
Embedded Surge Suppressor
Yes
Includes Auxiliary Contacts
Yes
Full Load Current - Inductive
40 A
Mounting Style
DIN Rail, Plate
NEMA Enclosure Rating
No Enclosure
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
30,000,000
Resistance Properties
Fire Resistant, Insulation Resistant
Number of Normally Open Main Contacts
4
Minimum Operating Temperature
-40 Degrees F
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit)

Description

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is an IEC-style, four-pole (4P) magnetic switch rated for operation within specified control panel configurations. It utilizes a 24 V DC coil as specified for switching operations and is described as non-reversing with screw clamp terminals. It is part of the TeSys Deca family and is rated for resistive load applications; enclosure details are provided separately.

Coil Voltage: 24 V DC

  • Poles / Main Contacts: 4 poles; 4 normally open main contacts
  • Auxiliary Contacts: 2 total (1NO/1NC)
  • Reversing: Non-Reversing
  • Electrical Connection: Screw Clamp terminals
  • Series/Frame: TeSys Deca
  • Maximum Voltage Rating: 690 V AC - Rated for operation up to 690 V AC within the specified parameters
  • Rated Making Capacity: 140 A (AC Signalling), 250 A (DC Signalling), 450 A @ 440 V (Power Circuit) - rated for circuit capacities as specified under normal operating conditions
  • Full Load Amps: 40 A (Resistive), 40 A (Inductive) - rated for full load currents within the specifications listed
  • Enclosure/IP: No Enclosure; IP20 - does not include an enclosure; complies with IP20 ingress protection rating
  • Embedded Features: Yes, with surge suppressor
  • Protective Cover: Yes
  • Mounting Style: DIN Rail, Plate
  • Weight: 0.425 kg
  • Size (H x W x D): 3.58 in x 1.77 in x 4.22 in
  • Standards: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed
  • Fire Rating: UL 94 V1
  • Impulse Withstand Voltage: 6 kV
  • Pollution Degree: 3
  • Frequency: 50/60 Hz
  • Rated Insulation Voltage: 600/690 V
  • Mounts On: Plate, Rail
  • Operating Speed: 3600 cycles/hr
  • Non-Overlap Time: 1.5 ms
  • Series Name: TeSys Deca
  • Impedance/Other: Not Rated (not listed beyond basics)
