- MFR #

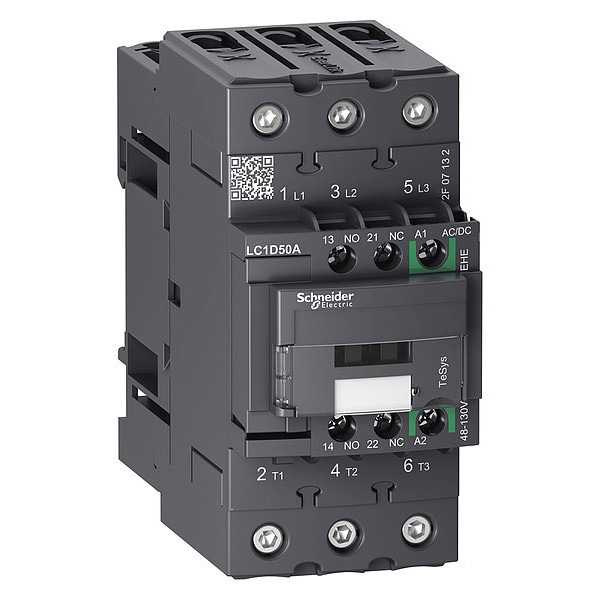

- LC1D50AEHE
- Zoro #
- G6035202
- UPC #
- -
- Country of Origin
- France
- Item
- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 48V-130V AC/DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 50 A
- Full Load Amps-Resistive
- 80 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- No
- Frame / Series / Class / Code
- TeSys
- HP @ 3 Phase - 575V
- 40 hp
- Includes
- Everlink Power Connections
- Series
- TeSys Deca
- IP Rating
- IP20
- Horsepower @ Three Phase - 208V AC
- 15 hp
- Horsepower @ Three Phase - 600V AC
- 40 hp
- Includes Auxiliary Contacts
- Yes
- NEMA Enclosure Rating
- No Enclosure
- Mechanical Operating Durability
- 6,000,000
- Mounting Style
- DIN Rail, Plate
- Full Load Current - Resistive
- 80 A
- Horsepower @ Three Phase - 240V AC
- 15 hp
- Horsepower @ Single Phase - 240V AC
- 7 1/2 hp
- Phase
- Three
- Number of Normally Open Main Contacts
- 3
- Maximum Voltage Rating
- 690V AC
- Horsepower @ Three Phase - 480V AC
- 40 hp
- Horsepower @ Single Phase - 120V AC
- 3 hp
- Full Load Current - Inductive
- 50 A
- Embedded Surge Suppressor
- No
- Minimum Operating Temperature
- -40 Degrees F
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Contactor Style
- IEC
- Maximum Operating Temperature
- 140 Degrees F
- Electrical Operating Durability
- 1,800,000, 500,000
- Frequency
- 50/60 Hz
- Fuse Amps
- 10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
- Environmental Attributes
- Mercury Free, Pollution Degree 3
- Tightening Torque
- 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
- Operating Time
- 55 to 65 ms (Closing), 20 to 120 ms (Opening)
- Rated Insulation Volts
- 690V
- Hold VA
- 1.4 VA
- Rated Breaking Capacity
- 900 A @ 440V
- Watts Loss
- 0.9W
- Rated Short-Time Withstand Current
- 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit)
- Net Weight
- 0.997 kg
- Application
- Motor Control, Resistive Load
- Fire Rating
- UL 94 V1
- Impulse Withstand Voltage
- 6 kV
- Mechanical Durability
- 6 Mcycles
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Rated Making Capacity
- 900 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Signalling Circuit Frequency
- 25 to 400 Hz
- Switching Voltage
- 17 V (Signalling Circuit)
- Inrush VA
- 23 VA
- Operating Speed
- 3600 cycles per hr
- Features
- Built-In Bi-Directional Peak Limiting
- Includes Protective Cover
- Yes
- Overvoltage Category
- CAT III
- Electrical Durability
- 1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V); 1.8 Mcycles (42 A, AC-3e, Less than 440 V)
- Max. Operating Watts
15 kW (at 220 to 230V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3), 25 kW (at 415V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3), 30 kW (at 500V AC 50 Hz AC-3), 33 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 220 to 230V AC 50 Hz AC-3e), 22 kW (at 380 to 400V AC 50 Hz AC-3e), 25 kW (at 415V AC 50 Hz AC-3e), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 500V AC 50 Hz AC-3e), 33 kW (at 660 to 690V AC 50 Hz AC-3e)
- Control Circuit Voltage Limits
- Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
- Impedance
- 1.5 mOhm
- Non-Overlap Time
- 1.5 ms
- Switching Current
- 5 mA (Signalling Circuit)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Conventional Free Air Thermal Current
- 80 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
