  7. IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Reversing, Screw Clamp

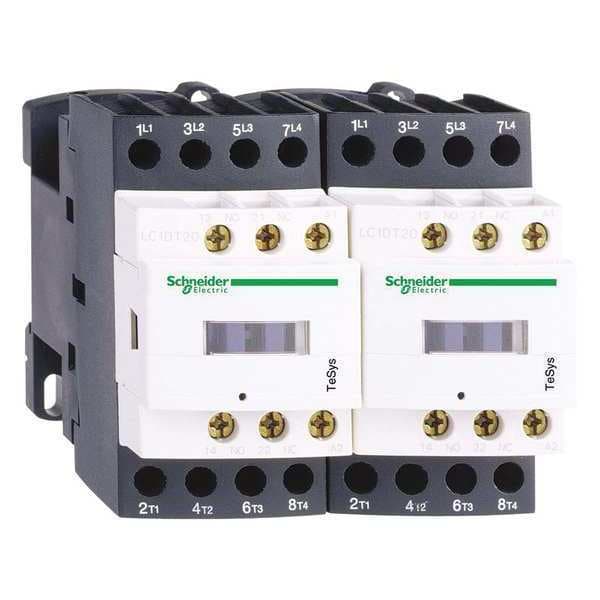

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Reversing, Screw Clamp LC2DT25BD - main

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Reversing, Screw Clamp

  • Mfr # LC2DT25BD

  • Zoro # G3156365

product price:  $431.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC2DT25BD
Zoro #
G3156365
UPC #
785901407768
Country of Origin
France

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
90 mm
Overall Width
90 mm
Overall Height
85 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
4
Reversing Capability
Reversing
Terminal Connection Type
Screw Clamp
Standards
CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.4
Series
LC2D, TeSys, TeSys Deca
Mechanical Durability
30 Mcycles
Utilisation Category
AC-1
Electrical Durability
0.8 Mcycles 25 A AC-1 <= 690 V
Power Dissipation Per Pole
1.56 W AC-1
Maximum Operating Rate
3600 cyc/h 60°C
Pvc Free
Yes
Ambient Air Temperature For Storage
-60-80°C
Mechanical Robustness
vibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
Device Presentation
preassembled, with prewired power connections
[Ui] Rated Insulation Voltage
power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
Signalling Circuit Frequency
25...400 Hz
Control Circuit Type
DC standard
Overvoltage Category
III
Tightening Torque
power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, power circuit 1.7 N.m screw clamp terminals Philips No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2, control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Protective Treatment
TH IEC 60068-2-30
Operating Time
53.55...72.45 ms closing, 16...24 ms opening
Pole Contact Composition
4 NO
Ambient Air Temperature For Operation
-40-60°C, 60-70°C with derating
Control Circuit Voltage Limits
0.1...0.25 Uc -40-60°C drop-out DC, 0.7...1.25 Uc -40-60°C operational DC
[Icw] Rated Short-Time Withstand Current
30 A 40°C - 10 min for power circuit, 61 A 40°C - 1 min for power circuit, 105 A 40°C - 10 s for power circuit, 210 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
Device Short Name
LC2D
Auxiliary Contacts Type
mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
Product Name
TeSys Deca
Contactor Application
resistive load
Protective Cover
with
Pollution Degree
3
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Operating Altitude
0...9842.52 ft (0...3000 m)
Rated Breaking Capacity
250 A at 440 V for power circuit conforming to IEC 60947
Climatic Withstand
IACS E10, IEC 60947-1 Annex Q category D
Time Constant
28 ms
Interlocking Type
mechanical
Fire Resistance
850°C IEC 60695-2-1
Rated Short-Time Withstand Current
30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Fire Rating
UL 94 V1
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Includes Protective Cover
Yes
Rated Insulation Volts
600/690V
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Fuse Amps
10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Switching Voltage
17 V (Signalling Circuit)
Net Weight
0.73 kg
Application
Resistive Load
Impedance
2.5 mOhm
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Prewired Power Connections
Switching Current
5 mA (Signalling Circuit)
IP Rating
IP20
Impulse Withstand Voltage
6 kV
Operating Speed
3600 cycles per hr
Full Load Current - Inductive
25 A
Rated Operational Current
25 A (at <60°C) at <= 440 V AC AC-1 for power circuit
Maximum Voltage Rating
690V AC, 300V DC
Hold-In Power Consumption in W
5.4-5.4 W 20°C
Rated Operational Voltage
power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)
Inrush Power in W
5.4-5.4 W 20°C)
Mounting Style
Plate, Rail

Description

Schneider Electric IEC Magnetic Contactor LC2D (TeSys Deca): a 4-pole, reversing, IEC magnetic contactor with a 24 V DC coil. It is an electrically operated switching device for controlling power circuits per IEC standards, using an electromagnetic coil to open or close contacts. This unit includes a 1NC/1NO auxiliary contact, is preassembled with prewired power connections, and includes a protective cover conforming to IP20 standards. Rated for operation with resistive loads within specified parameters and features a front-face IP20 rating, with PVC-free construction and treated in accordance with IEC 60068-2-30 standards. Rated for ambient temperatures from -40 to 60°C, with derating above 60°C as specified; storage -60 to 80°C.

Key features

  • Action: Reversing
  • Coil voltage: 24 V DC; Coil technology: Built-in bidirectional peak limiting diode suppressor
  • Poles and contacts: 4 poles; 4 NO main contacts; Auxiliary contacts: 1NC/1NO; Auxiliary contacts mechanically linked 1 NO + 1 NC
  • Electrical connections: Screw clamp terminals; Device presentation: preassembled with prewired power connections
  • Protection and construction: Includes protective cover conforming to IP20 standards; IP20 front face; Pvc Free; Treated in accordance with IEC 60068-2-30 standards; Pollution Degree: 3
  • Ratings and capabilities: Rated making capacity 250 A @ 440 V (Power Circuit); Rated insulation voltage 600/690 V; Impedance 2.5 mΩ; Impulse withstand voltage 6 kV; Rated short-time withstand currents (multiple values) up to 210 A (Power Circuit) and 140 A (Signalling Circuit)
  • Standards and labeling: Range TeSys/TeSys Deca; Series LC2D; Standards include IEC 60947-4-1, IEC 60947-5-1, UL/CSA/EN equivalents
  • Physical characteristics: Width 90 mm; Height 85 mm; Depth 90 mm; Net weight 0.73 kg; Mounting: Plate, Rail
  • Load and voltage: Suitable for use with resistive loads within rated specifications; Rated making capacity up to 250 A @ 440 V (Power Circuit); Rated operational voltage up to 690 V AC / 300 V DC
  • Operating conditions: Rated for ambient temperatures from -40 to 60°C, with derating above 60°C as specified; storage -60 to 80°C
