Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Spring Type LC1D093BD - main

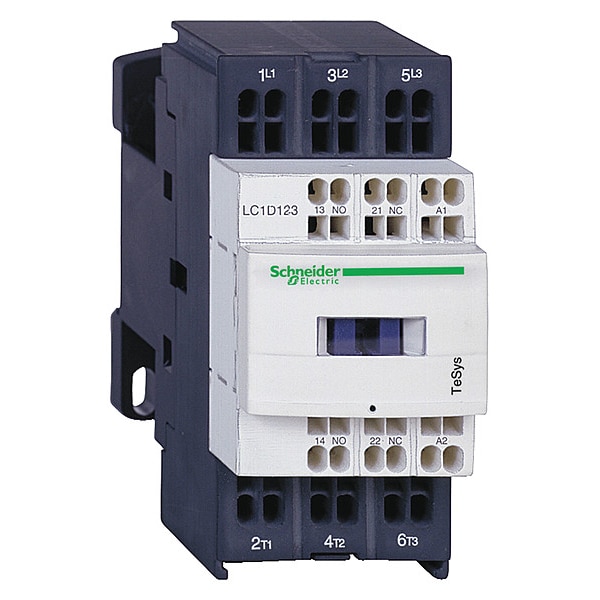

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Spring Type

  • Mfr # LC1D093BD

  • Zoro # G0569488

product price:  $138.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D093BD
Zoro #
G0569488
UPC #
785901197614
Country of Origin
Indonesia

Dimensions

Working Height
Up to 9842.52 ft
Overall Depth
95 mm
Overall Width
45 mm
Overall Height
99 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
20 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Spring Type
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, CCC, GL, BV, LROS, CSA, RINA, DNV, UL, GOST, UKCA, THIEC 60068-2-30
Series
LC1D
HP @ 3 Phase - 575V
7 1/2 hp
Application
Motor Control, Resistive Load
Fuse Amps
10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Overvoltage Category
CAT III
Non-Overlap Time
1.5 ms
Environmental Attributes
Mercury Free, PVC Free, Pollution Degree 3
Mechanical Durability
30 Mcycles
Rated Breaking Capacity
250 A @ 440V
Impulse Withstand Voltage
6 kV
Signalling Circuit Frequency
25 to 400 Hz
Rated Making Capacity
250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
IP Rating
IP20
Operating Time
53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)
Operating Speed
3600 cycles per hr
Net Weight
0.48 kg
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Switching Current
5 mA (Signalling Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Includes Protective Cover
Yes
Rated Short-Time Withstand Current
105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
Max. Operating Watts
2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW (at 380 to 400V AC 50/60 Hz AC-3), 4 kW 415 to (at 440V AC 50/60 Hz AC-3), 5.5 kW (at 500V AC 50/60 Hz AC-3), 5.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 400V AC 50/60 Hz AC-3e), 4 kW 415 to (at 440V AC 50/60 Hz AC-3e), 5.5 kW (at 500V AC 50/60 Hz AC-3e), 5.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)
Control Circuit Voltage Limits
Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
Fire Rating
UL 94 V1
Electrical Durability
0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V); 2 Mcycles (9 A, AC-3e, Less than 440 V)
Rated Insulation Volts
600/690V
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Impedance
2.5 mOhm
Full Load Current - Resistive
20 A
Full Load Current - Inductive
9:00 AM
Horsepower @ Three Phase - 208V AC
2 hp
Horsepower @ Single Phase - 240V AC
1 hp
Horsepower @ Three Phase - 480V AC
5 hp
Horsepower @ Three Phase - 240V AC
2 hp
Maximum Voltage Rating
690V AC, 300V DC
Mounting Style
Plate, Rail
Conventional Free Air Thermal Current
10 A (at 60°C Signalling Circuit), 16 A (at 60°C Power Circuit)

Description

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, spring type contactor intended for use in motor control and resistive load applications. It is compatible with a coil voltage of 24V DC and has an auxiliary contact form of 1NC/1NO. The product includes spring terminals intended for electrical connection and includes an integrated bi-directional peak limiting diode suppressor. Its environmental attributes include being mercury-free and PVC-free.

Key Features:

  • Depth: 95mm, Height: 99mm, Width: 45mm
  • Electrical Durability: Ranges from 0.6 Mcycles to 2 Mcycles depending on the conditions.
  • Fire Rating: UL94 V1
  • Full Load Amps - Inductive: 9A; Resistive:20A
  • Fuse Amps range from10 A (Signalling Circuit) to25 A (Type Power Circuit)
  • Horsepower compatibility varies from Single Phase -240V AC at1 hp to Three Phase -480V AC at5 hp.
  • IP Rating :IP20
  • Operating wattage can vary under different conditions, within the range of 2.2 kW to 5.5 kW.
  • -Mechanical Durability :30 Mcycles
  • -Rated Breaking Capacity :250 A @440V
  • -Reversing Capability :Non-Reversing
