  7. IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp

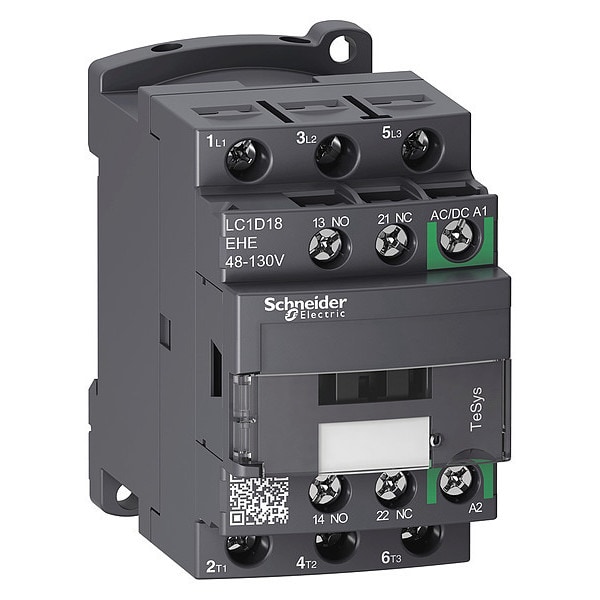

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp LC1D18EHE - main

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D18EHE

  • Zoro # G6038711

product price:  $78.35
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
18 A
Full Load Amps-Resistive
32 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D18EHE
Zoro #
G6038711
UPC #
-
Country of Origin
France

Dimensions

Height
3.03 in
Width
1.77 in
Depth
3.38 in
Overall Depth
3.39 in
Overall Width
1.77 in
Overall Height
3.03 in
Working Height
Up to 9842.52 ft

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
3
Full Load Amps-Inductive
18 A
Full Load Amps-Resistive
32 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
HP @ 1 Phase - 120V
1 hp
Aux. Contact Configuration
1NO/1NC
Hz
50/60
HP @ 1 Phase - 240V
3 hp
HP @ 3 Phase - 480V
10 hp
HP @ 3 Phase - 208V
5 hp
HP @ 3 Phase - 240V
5 hp
Enclosure NEMA Rating
No Enclosure
Coil Volts
48 to 130 V AC/DC
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
15 hp
Reversing
No
Series
TeSys Deca
IP Rating
IP20
Maximum Operating Temperature
140 Degrees F
Number of Normally Open Main Contacts
3
Mechanical Operating Durability
15,000,000
NEMA Enclosure Rating
No Enclosure
Electrical Operating Durability
2,200,000, 900,000
Mounting Style
DIN Rail, Plate
Horsepower @ Three Phase - 480V AC
10 hp
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
15 hp
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 240V AC
5 hp
Full Load Current - Inductive
18 A
Minimum Operating Temperature
-40 Degrees F
Includes Auxiliary Contacts
Yes
Contactor Style
IEC
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 120V AC
1 hp
Horsepower @ Single Phase - 240V AC
3 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Horsepower @ Three Phase - 208V AC
5 hp
Phase
Three
Fire Rating
UL 94 V1
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Rated Voltage
690V AC
Includes Protective Cover
Yes
Electrical Durability
2.2 Mcycles (15 A, AC-3, Less than 440 V); 0.9 Mcycles (32 A, AC-1, Less than 440 V); 2.2 Mcycles (15 A, AC-3e, Less than 440 V)
Mechanical Durability
15 Mcycles
Tightening Torque
1.7 Nm
Application
Motor Control, Resistive Load
Non-Overlap Time
1.5 ms
Hold VA
1.3 VA
Signalling Circuit Frequency
25 to 400 Hz
Thermal Amperage
10 A (at 60°C Signalling Circuit), 32 A (at 60°C Power Circuit)
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Max. Temperature
850°C
Features
Built-In Bi-Directional Peak Limiting
Watts Loss
0.8W
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit)
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
Fuse Amps
10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
Switching Current
5 mA (Signalling Circuit)
Max. Operating Watts
4 kW (at 220 to 230V AC 50 Hz AC-3), 7.5 kW (at 380 to 400V AC 50 Hz AC-3), 9 kW (at 415V AC 50 Hz AC-3), 9 kW (at 440V AC 50 Hz AC-3), 10 kW (at 500V AC 50 Hz AC-3), 10 kW (at 660 to 690V AC 50 Hz AC-3), 4 kW (at 220 to 230V AC 50 Hz AC-3e), 7.5 kW (at 380 to 400V AC 50 Hz AC-3e), 9 kW (at 415V AC 50 Hz AC-3e), 9 kW (at 440V AC 50 Hz AC-3e), 10 kW (at 500V AC 50 Hz AC-3e), 10 kW (at 660 to 690V AC 50 Hz AC-3e)
Net Weight
0.378 kg
Rated Insulation Volts
690V
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Overvoltage Category
CAT III
Impulse Withstand Voltage
6 kV
Electrical Connection
Screw Clamp Terminals
Environmental Attributes
Mercury Free, Pollution Degree 3
Impedance
2.5 mOhm
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Inrush VA
25 VA
Operating Speed
3600 cycles per hr
Rated Breaking Capacity
300 A @ 440V
Mounts On
Plate, Rail
Full Load Current - Resistive
32 A

Description

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switching device rated for use in specified motor control and resistive load applications. It features a coil voltage range of 48–130 V AC/DC, 1 normally open and 1 normally closed auxiliary contact (total of 2 auxiliary contacts), and 3 normally open main contacts. The device is part of the TeSys Deca line and uses screw clamp terminals, with no embedded surge suppressor and a protective cover included. It is rated for operation within the specified voltage range; compatible with voltages up to 690 V AC (CAT III) at 50/60 Hz, and IP20 enclosure rating; enclosure options are not included; suitable enclosures should be selected based on application requirements. Mounting options include DIN rail or plate, and its measurements are 3.39 in depth, 3.03 in height, and 1.77 in width, with a net weight of 0.378 kg.
