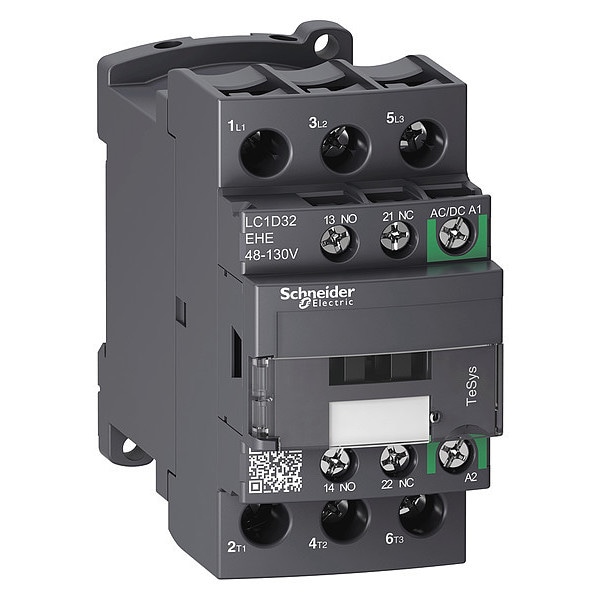

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D32EHE
  • Zoro # G6032621
product price:
$
117.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V AC to 130V AC, 48V DC to 130V DC
Number of Poles
3
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
50 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D32EHE
Zoro #
G6032621
UPC #
03606480987762
Country of Origin
Korea, Republic of
Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V AC to 130V AC, 48V DC to 130V DC
Number of Poles
3
Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
50 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Aux. Contact Configuration
1NO/1NC
HP @ 3 Phase - 480V
20 hp
Hz
50/60 Hz
Coil Volts
48V AC to 130V AC, 48V DC to 130V DC
Frame / Series / Class / Code
TeSys
HP @ 1 Phase - 240V
5 hp
HP @ 3 Phase - 240V
10 hp
Enclosure NEMA Rating
No Enclosure
Reversing
No
HP @ 3 Phase - 575V
25 hp
HP @ 3 Phase - 208V
10 hp
HP @ 1 Phase - 120V
2 hp
Series
TeSys Deca
Mechanical Durability
15 Mcycles
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C); Operational AC/DC: 0.85 to 1.1 Uc (at -40 to 60°C), 1 to 1.1 Uc (at 60 to 70°C)
Switching Voltage
17 V (Signalling Circuit)
Net Weight
0.438 kg
Max. Operating Watts
7.5 kW (at 220 to 230V AC 50 Hz AC-3), 15 kW (at 380 to 400V AC 50 Hz AC-3), 15 kW (at 415V AC 50 Hz AC-3), 15 kW (at 440V AC 50 Hz AC-3), 18.5 kW (at 500V AC 50 Hz AC-3), 18.5 kW (at 660 to 690V AC 50 Hz AC-3), 7.5 kW (at 220 to 230V AC 50 Hz AC-3e), 15 kW (at 380 to 400V AC 50 Hz AC-3e), 15 kW (at 415V AC 50 Hz AC-3e), 15 kW (at 440V AC 50 Hz AC-3e), 18.5 kW (at 500V AC 50 Hz AC-3e), 18.5 kW (at 660 to 690V AC 50 Hz AC-3e)
Hold VA
1.3 VA
Features
Built-In Bi-Directional Peak Limiting
Operating Time
45 to 55 ms (Closing), 20 to 90 ms (Opening)
Environmental Attributes
Mercury Free, Pollution Degree 3
Tightening Torque
1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)
Electrical Connection
Screw Clamp Terminals
Rated Making Capacity
140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 550 A @ 440V (Power Circuit)
Mounts On
Plate, Rail
Electrical Durability
2.1 Mcycles (29 A, AC-3, Less than 440 V); 0.9 Mcycles (50 A, AC-1, Less than 440 V); 2.1 Mcycles (29 A, AC-3e, Less than 440 V)
Application
Motor Control, Resistive Load
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 60 A (at 40°C for 10 min Power Circuit), 138 A (at 40°C for 1 min Power Circuit), 260 A (at 40°C for 10 s Power Circuit), 430 A (at 40°C for 1 s Power Circuit)
Impulse Withstand Voltage
6 kV
Fire Rating
UL 94 V1
Rated Insulation Volts
690V
Switching Current
5 mA (Signalling Circuit)
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Includes Protective Cover
Yes
Overvoltage Category
CAT III
Rated Breaking Capacity
550 A @ 440V
Operating Speed
3600 cycles per hr
Thermal Amperage
10 A (at 60 Degrees C Signalling Circuit), 50 A (at 60 Degrees C Power Circuit)
Non-Overlap Time
1.5 ms
Fuse Amps
10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 63 A (Type 2 Power Circuit)
Watts Loss
0.8W
Rated Voltage
690V AC
Signalling Circuit Frequency
25 to 400 Hz
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Max. Temperature
850 Degrees C
IP Rating
IP20
Impedance
2 mOhm
Inrush VA
25 VA
Shock Resistance
8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
Mounting Style
DIN Rail, Plate
Maximum Voltage Rating
690V AC
Mechanical Operating Durability
15,000,000
Full Load Current - Resistive
50 A
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Embedded Surge Suppressor
No
Number of Normally Open Main Contacts
3
Full Load Current - Inductive
32 A
NEMA Enclosure Rating
No Enclosure
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Three Phase - 600V AC
25 hp
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Three Phase - 480V AC
20 hp
Resistance Properties
Fire Resistant, Insulation Resistant
Maximum Operating Temperature
140 Degrees F
Contactor Style
IEC
Phase
Three
Includes Auxiliary Contacts
Yes
Frequency
50/60 Hz
Electrical Operating Durability
2,100,000, 900,000
Horsepower @ Single Phase - 120V AC
2 hp

Description

The IEC Magnetic Contactor is a three-pole, non-reversing switching device (TeSys) rated for use in motor control and resistive load applications within specified parameters. It is compatible with coil voltages of 48–130 V AC/DC within specified ranges and uses screw clamp terminals for wiring. The unit includes two auxiliary contacts (1NO/1NC) and does not include surge suppression features or an enclosure; refer to product specifications for details. It is rated for operation within 50/60 Hz electrical systems as per specifications and is rated for operation at voltages up to 690 V AC within specified conditions.

Key features

  • Coil Voltage: 48–130 V AC/DC
  • Poles and contacts: 3 poles; main contacts 3 normally open; auxiliary contacts 2 (1NO/1NC)
  • Rated voltage/frequency: 690 V AC; 50/60 Hz; Phase: Three
  • Electrical connections: Screw Clamp Terminals
  • Mounting: DIN Rail or Plate; Mounts On: Plate, Rail
  • Enclosure: No Enclosure; IP20; protective cover included
  • Dimensions and weight: Depth 3.62 in; Height 3.35 in; Width 1.77 in; Net weight 0.438 kg
  • Operating times: 45–55 ms (Closing), 20–90 ms (Opening); Non-Overlap 1.5 ms
  • Mechanical/electrical durability: Mechanical Durability 15 Mcycles; Electrical/operating durability values provided in the specification
  • Other ratings: UL 94 V1 fire rating; Shock resistance 8 G (Open) and 15 G (Closed)
