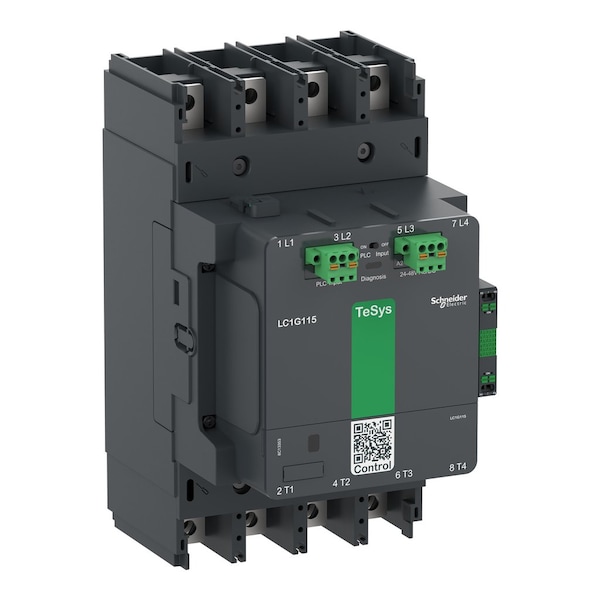

Schneider Electric IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type LC1G1504EHEA - main

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 4 P, Spring Type

  • Mfr # LC1G1504EHEA

  • Zoro # G810354659

product price:  $1,324.99
/ea
Sold in multiples of 6 for $7,949.94
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
4
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
275 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LC1G1504EHEA
Zoro #
G810354659
UPC #
3606481922632
Country of Origin
China

Dimensions

Overall Height
10.04 in
Overall Width
5.63 in
Overall Depth
7.6 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
48V-130V AC/DC
Number of Poles
4
Full Load Amps-Inductive
150 A
Full Load Amps-Resistive
275 A
Terminal Connection Type
Spring Type
Number of Auxillary Contacts
2
Standards
CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
Series
TeSys Giga
IP Rating
IP20
Maximum Voltage Rating
1000V AC
Frequency
50/60 Hz
Phase
Single
Mechanical Operating Durability
8,000,000
Minimum Operating Temperature
-13 Degrees F
Contactor Style
IEC
Embedded Surge Suppressor
No
Maximum Operating Temperature
140 Degrees F
Mounting Style
Plate
Includes Auxiliary Contacts
Yes
Full Load Current - Inductive
150 A
Full Load Current - Resistive
275 A

Description

The IEC Magnetic Contactor is a 4-pole, single-phase electrical control device rated for switching within the specified voltage and current ranges according to IEC standards. It is rated for operation within the specified coil voltage range of 48–130 V AC/DC and includes two auxiliary contacts configured as 1NC/1NO. The unit features spring-type terminals, is part of the TeSys Giga series, and is rated for use at voltages up to 1000 V AC as per specifications.

Key features

  • Item: IEC Magnetic Contactor
  • Series: TeSys Giga
  • Contactor Style: IEC
  • Poles: 4
  • Phase: Single
  • Coil Voltage: 48–130 V AC/DC
  • Auxiliary Contacts: 2 total (1NC/1NO)
  • Embedded Surge Suppressor: No
  • Terminal Connection Type: Spring Type
  • Frequency: 50/60 Hz
  • IP Rating: IP20
  • Maximum Voltage Rating: Rated for use at voltages up to 1000 V AC as per specifications
  • Maximum Operating Temperature: Specified to operate within the temperature range provided (e.g., -13 °F to 140 °F)
  • Minimum Operating Temperature: Specified to operate within the temperature range provided (e.g., -13 °F to 140 °F)
  • Mechanical Operating Durability: 8,000,000 cycles
  • Mounting Style: Plate
  • Overall Dimensions: Depth 7.6 in, Height 10.04 in, Width 5.63 in
  • Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • Full Load Amps (Inductive): 230 A; Full Load Amps (Resistive): 275 A
  • Full Load Current (Inductive): 150 A; Full Load Current (Resistive): 275 A
  • Includes Auxiliary Contacts: Yes
