- Item

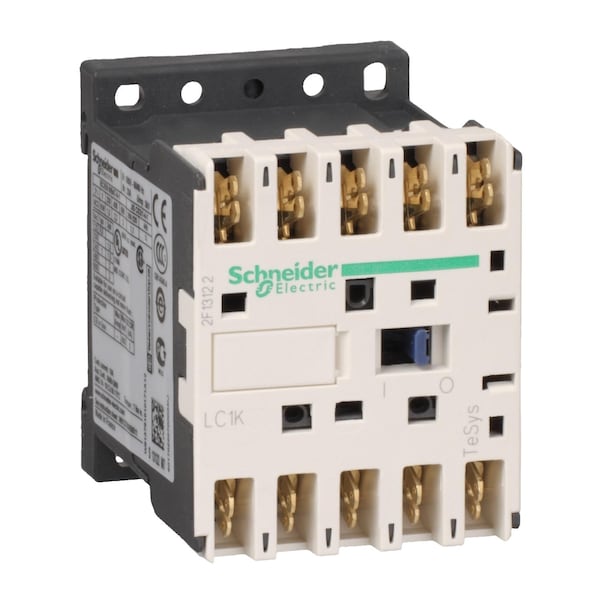

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 2NC/2NO
- Coil Voltage
- 220V AC
- Number of Poles
- 4
- Full Load Amps-Inductive
- 9 A
- Full Load Amps-Resistive
- 20 A
- Terminal Connection Type
- Quick Connect
- Number of Auxillary Contacts
- 4
- Standards
- EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1
- Series
- LC1K, TeSys
- Application
- Resistive Load
- Signalling Circuit Frequency
- <= 400 Hz
- Protective Treatment
- TC IEC 60068, TC DIN 50016
- Mechanical Durability
- 10 Mcycles
- Overvoltage Category
- III
- Utilisation Category
- AC-1
- Heat Dissipation
- 1.3-1.3 W
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508, power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA C22.2 No 14
- Device Short Name
- LC1K
- Device Application
- control
- Mechanical Robustness
shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
- Ambient Air Temperature For Storage
- -50-80°C
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Operating Time
- 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing, 15...25 ms coil de-energisation and NC closing, 5...15 ms coil energisation and NC opening
- Control Circuit Type
- AC 50/60 Hz
- [Icw] Rated Short-Time Withstand Current
- 90 A 50°C - 1 s for power circuit, 85 A 50°C - 5 s for power circuit, 80 A 50°C - 10 s for power circuit, 60 A 50°C - 30 s for power circuit, 45 A 50°C - 1 min for power circuit, 40 A 50°C - 3 min for power circuit, 20 A 50°C - >= 15 min for power circuit
- Control Circuit Voltage Limits
- operational: 0.8...1.15 Uc (at <50°C), drop-out: >= 0.20 Uc (at <50°C)
- Contactor Application
- resistive load
- Pole Contact Composition
- 2 NO + 2 NC
- Maximum Operating Rate
- 3600 cyc/h
- Rated Breaking Capacity
- 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947
- Electrical Durability
- 0.16 Mcycles 20 A AC-1 <= 690 V
- IP Rating
- IP2X
- Inrush VA
- 30 VA
- Operating Speed
- 3600 cycles per hr
- Fire Rating
- UL 94 V1, NF F 16-101, NF F 16-102
- Rated Short-Time Withstand Current
- 90 A (at 50°C for 1 s Power Circuit), 85 A (at 50°C for 5 s Power Circuit), 80 A (at 50°C for 10 s Power Circuit), 60 A (at 50°C for 30 s Power Circuit), 45 A (at 50°C for 1 min Power Circuit), 40 A (at 50°C for 3 min Power Circuit), 20 A (at 50°C for 15 min Power Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Fuse Amps
- 25 A
- Environmental Attributes
- Mercury Free, Toxic Heavy Metal Free
- Rated Making Capacity
- 110 A (AC Power Circuit)
- Rated Insulation Volts
- 600/690V
- Watts Loss
- 1.3W
- Impedance
- 3 mOhm
- Impulse Withstand Voltage
- 8 kV
- Net Weight
- 0.18 kg
- Shock Resistance
- 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)
- Hold VA
- 4.5 VA
- Full Load Current - Resistive
- 20 A
- Full Load Current - Inductive
- 9 A
- Mounting Style
- Plate, Rail
- Conventional Free Air Thermal Current
- 20 A (at 50°C Power Circuit)
- Maximum Voltage Rating
- 690V AC
- Control Circuit Voltage
- 220...230 V AC 50/60 Hz
- Rated Operational Voltage
- power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz
- Inrush Power in VA
- 30-30 VA (at 20°C)
- Rated Operational Current
- 20 A (at <60°C) at <= 690 V AC AC-1 for power circuit
