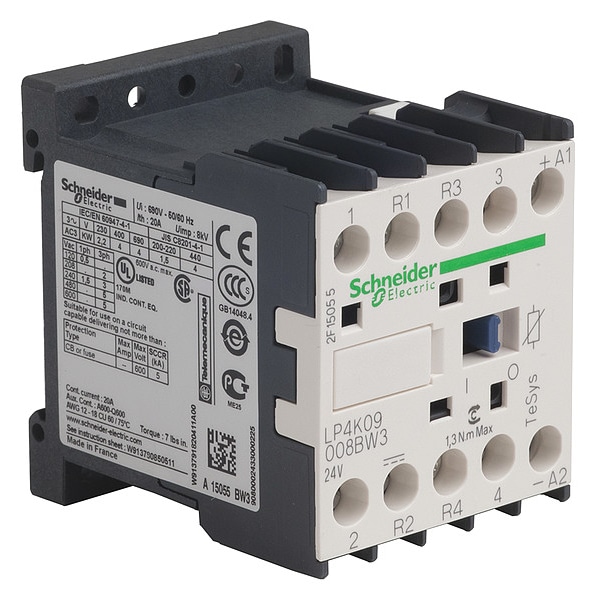

Schneider Electric IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp LP4K09008BW3 - main
Shop SCHNEIDER ELECTRIC

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp

  • Mfr # LP4K09008BW3

  • Zoro # G0849567

product price:  $131.33
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LP4K09008BW3
Zoro #
G0849567
UPC #
785901641780
Country of Origin
France

Dimensions

Working Height
6561.68 ft
Overall Height
58 mm
Overall Depth
57 mm
Overall Width
45 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
24V DC
Number of Poles
4
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
0
Standards
EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Series
LP4K
Application
Resistive Load
Control Circuit Voltage Limits
Operational: 0.7 to 1.30 Uc (at 50°C), Drop-Out: 0.1 to 0.7 Uc (at 50°C)
Impedance
3 mOhm
Tightening Torque
0.8 to 1.3 Nm
Environmental Attributes
Mercury Free, Toxic Heavy Metal Free
Impulse Withstand Voltage
8 kV
Fire Rating
UL 94 V1, NF F 16-101, NF F 16-102
Rated Breaking Capacity
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Operating Speed
3600 cycles per hr
Overvoltage Category
CAT III
Rated Making Capacity
110 A (AC Power Circuit)
Net Weight
0.235 kg
Features
Built-In Bi-Directional Peak Limiting Diode Suppressor
Mechanical Durability
30 Mcycles
Operating Time
10 to 20 ms (Coil De-Energisation and NO Opening), 30 to 40 ms (Coil Energisation and NO Closing), 25 to 35 ms (Coil Energisation and NC Opening), 15 to 25 ms (Coil De-Energisation and NC Closing)
Fuse Amps
25 A
Rated Insulation Volts
600/690V
Full Load Current - Inductive
9:00 AM
Full Load Current - Resistive
20 A
Maximum Voltage Rating
690V AC
Conventional Free Air Thermal Current
20 A (at 50°C Power Circuit)
Mounting Style
Plate, Rail

Description

The Schneider Electric IEC Magnetic Contactor is a 4-pole, electrically operated switching device with 2NC/2NO auxiliary contacts and a 24 V DC coil, equipped with Screw Clamp terminals. It is rated for operation within the specified voltage ranges and intended for controlling power circuits in accordance with IEC standards.

Poles: 4

  • Auxiliary contacts: 2NC/2NO
  • Coil voltage: 24 V DC
  • Terminal connection: Screw Clamp
  • Width x Height x Depth: 45 mm x 58 mm x 57 mm
  • Net weight: 0.235 kg
  • Mounts on: Plate, Rail
  • Series: LP4K
  • Rated voltage: up to 690 V AC (as specified)
  • Rated making capacity: up to 110 A (AC Power Circuit) under specified conditions
  • Full load current ratings: are based on resistive or inductive loads within standard testing conditions; actual performance may vary depending on application
  • Impedance: value provided; actual circuit impedance may differ based on installation specifics
  • Impulse withstand voltage: designed to meet impulse withstand specifications of up to 8 kV under test conditions
  • Rated insulation volts: 600/690 V
  • Standards: Meets relevant industry standards when properly installed and used according to manufacturer instructions
  • Fire rating: UL 94 V1, NF F 16-101, NF F 16-102
  • Mechanical durability: 30 Mcycles
  • Operating speed: 3600 cycles per hr
  • Tightening torque: 0.8 to 1.3 Nm
  • Working height: 6561.68 ft
  • Mercury Free; Toxic Heavy Metal Free
