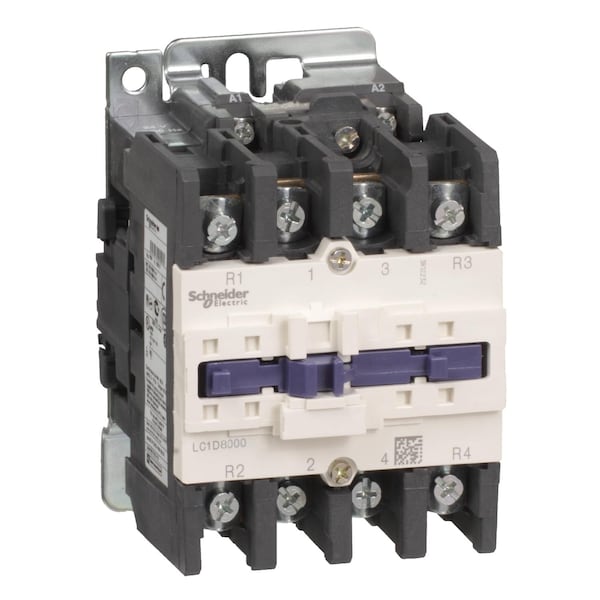

Schneider Electric IEC Magnetic Contactor, 4NO, 120V AC, 4 P, Non-Reversing, Screw Clamp LC1D80004G6 - main

IEC Magnetic Contactor, 4NO, 120V AC, 4 P, Non-Reversing, Screw Clamp

  • Mfr # LC1D80004G6

  • Zoro # G0850361

product price:  $714.99
/ea
Sold in multiples of 2 for $1,429.98
Free Shipping & Returns

Key Features

Auxiliary Contact Form
4NO
Coil Voltage
120V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LC1D80004G6
Zoro #
G0850361
UPC #
785901225522
Country of Origin
Czechia

Dimensions

Working Height
Up to 9842.52 ft
Overall Width
96 mm
Overall Height
127 mm
Overall Depth
125 mm

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
4NO
Coil Voltage
120V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, RINA, GOST, LROS, DNV, GL, CCC, UL, CSA, THIEC 60068-2-30
Series
LC1D, TeSys
Features
Without Built-In Suppressor Module
Application
Resistive Load
Fire Rating
UL 94 V1
Tightening Torque
1.2 Nm (Control Circuit), 12 Nm (Power Circuit)
Impedance
0.8 mOhm
Vibration Resistance
3 G (Contactor Closed), 2 G (Contactor Open)
Mechanical Durability
10 Mcycles
Includes Protective Cover
No
Impulse Withstand Voltage
8 kV
Rated Making Capacity
1100 A @ 440V (Power Circuit)
Hold VA
22 VA
Control Circuit Voltage Limits
Operational AC: 0.85 to 1.1 Uc (at -40 to 55°C 60 Hz), 1 to 1.1 Uc (at 55 to 70°C 60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz)
Overvoltage Category
CAT III
Max. Operating Watts
22 kW (at 220 to 230V AC 50/60 Hz), 37 kW (at 380 to 400V AC 50/60 Hz), 45 kW (at 660 to 690V AC 50/60 Hz), 55 kW (at 500V AC 50/60 Hz), 45 kW (at 415 to 440V AC 50/60 Hz)
Fuse Amps
200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)
Rated Breaking Capacity
1100 A @ 440V
Inrush VA
220 VA
Rated Short-Time Withstand Current
640 A (at 40°C for 10 s Power Circuit), 990 A (at 40°C for 1 s Power Circuit), 135 A (at 40°C for 10 min Power Circuit), 320 A (at 40°C for 1 min Power Circuit)
Rated Insulation Volts
600/1000V
IP Rating
IP20
Electrical Durability
0.8 Mcycles (125 A, AC-1, Less than 440 V)
Shock Resistance
10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)
Watts Loss
6 to 10W
Operating Time
20 to 35 ms (Closing), 6 to 20 ms (Opening)
Operating Speed
3600 cycles per hr
Environmental Attributes
Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
Net Weight
1.76 kg
Maximum Operating Rate
3600 cyc/h 60°C
Mechanical Robustness
vibrations contactor open 2 Gn, 5...300 Hz) , shocks contactor open 8 Gn for 11 ms) , vibrations contactor closed 3 Gn, 5...300 Hz) , shocks contactor closed 10 Gn for 11 ms)
Pvc Free
Yes
Power Dissipation Per Pole
12.5 W AC-1
Pole Contact Composition
4 NO
Protective Treatment
THIEC 60068-2-30
Protective Cover
without
Control Circuit Type
AC 60 Hz
Heat Dissipation
6-10 W at 60 Hz
Pollution Degree
3
Operating Altitude
0...9842.52 ft (0...3000 m)
Climatic Withstand
IACS E10 exposure to damp heat
Fire Resistance
850°C IEC 60695-2-1
[Ui] Rated Insulation Voltage
power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1
[Icw] Rated Short-Time Withstand Current
640 A 40°C - 10 s for power circuit, 990 A 40°C - 1 s for power circuit, 135 A 40°C - 10 min for power circuit, 320 A 40°C - 1 min for power circuit
Utilisation Category
AC-1, AC-3, AC-3e, AC-4
Full Load Current - Resistive
125 A
Full Load Current - Inductive
80 A
Inrush Power in VA
220-220 VA 60 Hz cos phi 0.75 (at 20°C)
Maximum Operating Temperature
140 Degrees F
Control Circuit Voltage
120 V AC 60 Hz
Rated Operational Current
125 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60°C) at <= 440 V AC AC-3e for power circuit, 55 A (at <60°C) at <= 400 V AC AC-4 for power circuit
Conventional Free Air Thermal Current
125 A (at 60°C Power Circuit)
Rated Operational Voltage
power circuit <= 300 V DC 25...400 Hz, power circuit <= 690 V AC
Mounting Style
Plate, Rail
Ambient Air Temperature For Operation
-40-60°C, 60-70°C with derating
Maximum Voltage Rating
690V AC, 300V DC

Description

The Schneider Electric IEC Magnetic Contactor is a four-pole, non-reversing, electrically operated switch designed to control power circuits. It uses a 120 V AC coil to open and close contacts and includes four NO auxiliary contacts. It is part of the TeSys Deca family (LC1D series) and uses screw clamp terminals for connections. Designed for use within specified voltage ranges in resistive-load applications, it supports power circuits up to 690 V AC or 300 V DC, with an IP20 enclosure and no protective cover included.

Key features

  • Coil voltage: 120 V AC
  • Poles and contacts: 4P; main contacts 4 NO; auxiliary contacts 4NO; non-reversing
  • Terminals: Screw clamp
  • Mounting: Plate, rail
  • Protection and cover: IP20; Protective Cover: Without
  • Range/series: TeSys Deca; LC1D
  • Rated values: 690 V AC; 300 V DC; Uc insulation 600/1000 V
  • Power and current: Has a rated making capacity of 1100 A at 440 V
  • Fuse ratings: 200 A (Type 1 Power Circuit); 160 A (Type 2 Power Circuit)
  • Rated operational currents: as specified in product documentation
  • Mechanical/electrical durability: 10 Mcycles mechanical; 0.8 Mcycles electrical
  • Physical: Height 127 mm; Width 96 mm; Depth 125 mm; Weight 1.76 kg
  • Standards: EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 508, CSA, among others
  • Additional ratings: Utilisation Category AC-1, AC-3, AC-3e, AC-4; Pollution Degree 3; Inrush/hold values and other electrical specs available in attribute list The description does not contain unqualified guarantees or promises about safety, longevity, or performance beyond standard specifications.
