- Item

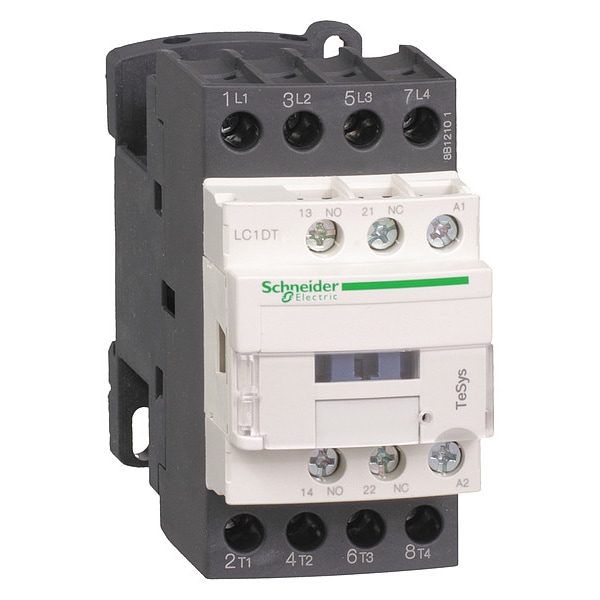

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 24V DC
- Number of Poles
- 4
- Full Load Amps-Inductive
- 32 A
- Full Load Amps-Resistive
- 32 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
- Frame / Series / Class / Code
- TeSys
- Enclosure NEMA Rating
- No Enclosure
- Series
- TeSys Deca
- Reversing
- No
- Rated Insulation Volts
- 600/690V
- Rated Breaking Capacity
- 300 A @ 440V
- IP Rating
- IP20
- Mechanical Durability
- 30 Mcycles
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- Signalling Circuit Frequency
- 25 to 400 Hz
- Application
- Resistive Load
- Impedance
- 2.5 mOhm
- Overvoltage Category
- CAT III
- Non-Overlap Time
- 1.5 ms
- Switching Voltage
- 17 V (Signalling Circuit)
- Fire Rating
- UL 94 V1
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Impulse Withstand Voltage
- 6 kV
- Tightening Torque
- 1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit)
- Rated Short-Time Withstand Current
- 40 A (at 40°C for 10 min Power Circuit), 84 A (at 40°C for 1 min Power Circuit), 145 A (at 40°C for 10 s Power Circuit), 240 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Net Weight
- 0.425 kg
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Shock Resistance
- 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 300 A @ 440V (Power Circuit)
- Features
- Built-In Bi-Directional Peak Limiting Diode Suppressor
- Includes Protective Cover
- Yes
- Operating Speed
- 3600 cycles per hr
- Control Circuit Voltage Limits
- Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
- Operating Time
- 16 to 24 ms (Opening), 53.55 to 72.45 ms (Closing)
- Electrical Durability
- 1 Mcycles (32 A, AC-1, Less than 440 V)
- Fuse Amps
- 10 A (Signalling Circuit), 50 A (Type 1 Power Circuit), 35 A (Type 2 Power Circuit)
- Mechanical Operating Durability
- 30,000,000
- Number of Normally Open Main Contacts
- 4
- Maximum Voltage Rating
- 690V AC
- Maximum Operating Temperature
- 140 Degrees F
- Resistance Properties
- Fire Resistant, Insulation Resistant
- NEMA Enclosure Rating
- No Enclosure
- Electrical Operating Durability
- 1,000,000
- Contactor Style
- IEC
- Mounting Style
- DIN Rail, Plate
- Embedded Surge Suppressor
- Yes
- Minimum Operating Temperature
- -40 Degrees F
- Full Load Current - Inductive
- 32 A
- Includes Auxiliary Contacts
- Yes
- Frequency
- 50/60 Hz
- Rated Operational Current
- 32 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit
- Time Constant
- 28 ms
- Protective Cover
- With
- Climatic Withstand
- IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat
- Control Circuit Type
- DC standard
- Contact Compatibility
- M7
- Fire Resistance
- 1562°F (850°C) IEC 60695-2-1
- Mechanical Robustness
- Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 8 Gn for 11 ms)
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Protective Treatment
- THIEC 60068-2-30
- Pollution Degree
- 3
- Rated Operational Voltage
- Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC
- Power Dissipation Per Pole
- 2.5 W AC-1
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
- Hold-In Power Consumption in W
- 5.4 W 68°F (20°C)
- Inrush Power in W
- 5.4 W 68°F (20°C)
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Maximum Operating Rate
- 3600 cyc/h 140°F (60°C)
- Compatibility Code
- LC1D
- Conventional Free Air Thermal Current
- 10 A (at 140°F (60°C)) for signalling circuit; 32 A (at 140°F (60°C)) for power circuit
- Utilisation Category
- AC-1; AC-3; AC-3e; AC-4
- Pole Contact Composition
- 4 NO
- Full Load Current - Resistive
- 32 A
- Ambient Air Temperature For Operation
- -40 to 140°F (-40 to 60°C); 140 to 158°F (60 to 70°C) with derating
