  11. IEC Overload Relay, 1NC/1NO, 17 A Min current, 25 A Max current, 690V AC

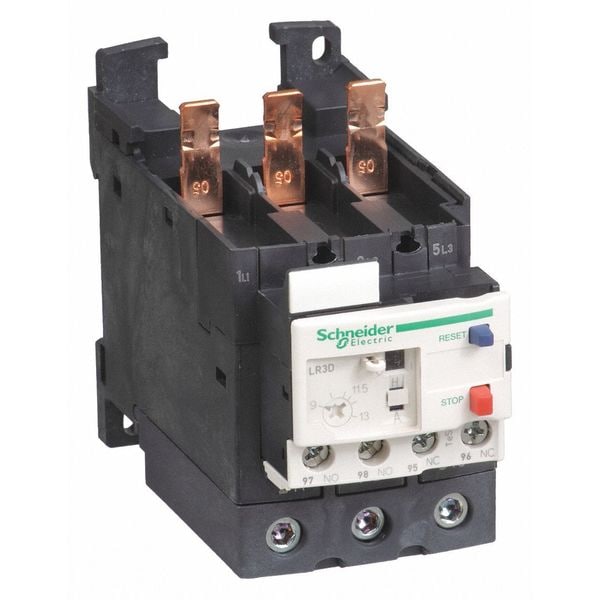

Schneider Electric IEC Overload Relay, 1NC/1NO, 17 A Min current, 25 A Max current, 690V AC LR3D325 - main

IEC Overload Relay, 1NC/1NO, 17 A Min current, 25 A Max current, 690V AC

  • Mfr # LR3D325

  • Zoro # G3156505

product price: $153.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
17 A
Maximum Overload Relay Current Setting
25 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR3D325
Zoro #
G3156505
UPC #
785901952558
Country of Origin
France

Dimensions

Body Depth - Relay
4.84 in
Depth
123 mm
Body Height - Relay
2.76 in
Width
55 mm
Height
70 mm
Overall Height - Relay
2.76 in
Overall Height
2.76 in
Body Height
2.76 in

Details

Item
IEC Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
17 A
Maximum Overload Relay Current Setting
25 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
Sensing Method
Thermal
Separate Mounting
No
Kit Required for Retrofit Mtg.
No
Number of Poles
3
Trip Class - Overload
10A
Use With - Contactors and Starters
Mfr. Series LC1F115 Contactors
Frame / Series / Class / Code
Class 10
Minimum Operating Temperature
-4 Degrees F
Reset Type
Auto, Manual
Maximum Operating Temperature
140 Degrees F
Mounting Style
Direct To Contactor
Relay Style
IEC
Terminal Connection Type
Screw Clamp Terminals
IP Rating
IP20
Compatible with Series
TeSys Deca
Network Type
DC || AC
Relay Application
motor protection
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Control Type
Red push-button stop || Blue push-button reset
Thermal Overload Class
class 10A IEC 60947-4-1
Mechanical Robustness
shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
Range
TeSys || TeSys Deca
Product Or Component Type
non differential thermal overload relay
Climatic Withstand
IACS E10
Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end
Permissible Current
0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
Product Compatibility
LC1D50A || LC1D40A || LC1D65A
Phase Failure Sensitivity
tripping current 130 % of Ir on two phase, the last one at 0
Product Certifications
IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || UKCA
Ambient Air Temperature For Operation
-20-60°C without derating IEC 60947-4-1
Flame Retardance
V1 conforming to UL 94
Device Short Name
LR3D
Associated Fuse Rating
4 A gG signalling circuit || 4 A BS signalling circuit
Ambient Air Temperature For Storage
-60-70°C
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Network Frequency
0 to 400 Hz
Product Name
TeSys LRD || TeSys Deca
Thermal Protection Adjustment Range
17-25 A
Tightening Torque
control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Rated Insulation Voltage
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Conventional Free Air Thermal Current
5 A signalling circuit

Description

IEC Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 25 A, Minimum Overload Relay Current Setting 17 A, Trip Class 10A, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Reset Type Auto, Manual, Mounting Style Direct To Contactor, Terminal Connection Type Screw Clamp Terminals, Compatible with Series TeSys Deca, Relay Style IEC, Overload Protection Type Thermal
