- Item

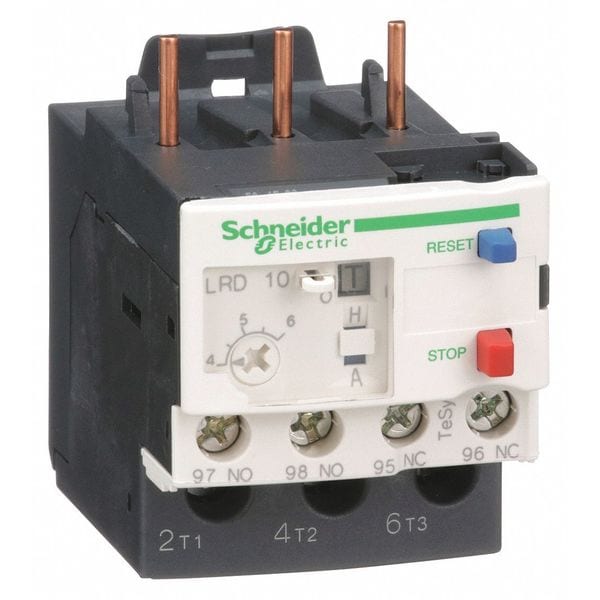

- Overload Relay
- Auxiliary Contact Form
- 1NC/1NO
- Minimum Overload Relay Current Setting
- 4:00 AM
- Maximum Overload Relay Current Setting
- 6:00 AM
- Trip Class
- 10A
- Overload Protection Type
- Thermal
- Maximum Voltage Rating
- 690V AC
- Standards
- CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, REACH, RoHS, UL 60947-4-1, UL 60947-5-1
- For Use With
- LC1D09 thru LC1D32 Contactor
- Sensing Method
- Bimetallic
- Use With - Contactors and Starters
- Mfr. Series LC1D09 to LC1D32 Contactors
- Number of Poles
- 3
- Trip Class - Overload
- 10
- Features
- Single Phase Sensitivity
- Starter Type
- IEC
- Mechanical Robustness
- vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Associated Fuse Rating
- 4 A gG signalling circuit || 4 A BS signalling circuit
- Product Compatibility
- LC1D09 || LC1D32 || LC1D38 || LC1D12 || LC1D18 || LC1D25
- Device Short Name
- LRD
- Thermal Protection Adjustment Range
- 4-6 A
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
- Permissible Current
- 3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
- Product Or Component Type
- differential thermal overload relay
- Network Frequency
- 0 to 400 Hz
- Relay Application
- motor protection
- Connections - Terminals
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 1 1-6 mm² solid without cable end
- Range
- TeSys || TeSys Deca
- Climatic Withstand
- IACS E10
- Flame Retardance
- V1 conforming to UL 94
- Product Name
- TeSys LRD || TeSys Deca
- Phase Failure Sensitivity
- tripping current 130 % of Ir on two phase, the last one at 0
- Ambient Air Temperature For Storage
- -60-70°C
- Ambient Air Temperature For Operation
- -20-60°C without derating IEC 60947-4-1
- Tripping Threshold
- 1.14 +/- 0.06 Ir IEC 60947-4-1
- Network Type
- DC || AC
- Control Type
- Red push-button stop || Blue push-button reset
- Product Certifications
- IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
- Thermal Overload Class
- class 10A IEC 60947-4-1
- Terminal Connection Type
- Screw Clamp Terminals
- Relay Style
- IEC
- Reset Type
- Manual
- IP Rating
- IP20
- Minimum Operating Temperature
- -4 Degrees F
- Mounting Style
- Direct To Contactor
- Maximum Operating Temperature
- 140 Degrees F
- Compatible with Series
- TeSys Deca
- Rated Insulation Voltage
- Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
- Rated Operational Voltage
- 690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
- Conventional Free Air Thermal Current
- 5 A signalling circuit
- Trip Clss
- 10A
