  13. Illum Selector Switch, 2 Pos, 22mm, Yellow

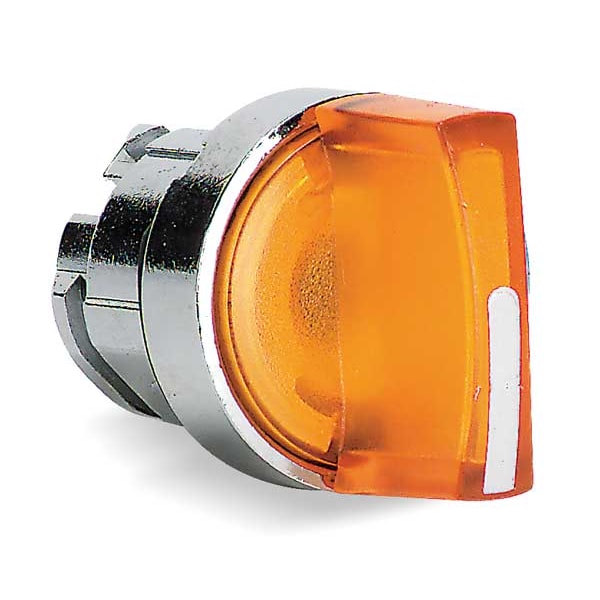

Schneider Electric Illum Selector Switch, 2 Pos, 22mm, Yellow ZB4BK1453 - main

Illum Selector Switch, 2 Pos, 22mm, Yellow

  • Mfr # ZB4BK1453

  • Zoro # G2841045

product price: $52.99
/ea

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Momentary
Operator Head Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BK1453
Zoro #
G2841045
UPC #
785901382201
Country of Origin
France

Dimensions

Size
22 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm
Cad Overall Depth
43 mm
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm

Details

Item
Short-Handled Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Momentary
Operator Head Material
Plastic
Cam
No Cam Included
Operator Color
Yellow
NEMA Rating
1, 13, 2, 3, 4
Bezel Material
Chrome Plated Metal
Position
2
Bezel Color
Chrome
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
Lamp Module Voltage
Module Not Included
Switch Operation @ Position B
XXOO
Lamp Type
Led
IP Rating
IP66, IP67, IP69, IP69K
Switch Operation @ Position A
OOXX
Lamp Module Type
Module Not Included
Switch Operation @ Position C
No Third Position
Series
XB4
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operator Illumination
Illuminated
Hazardous Location Specification
Not Rated
Operator Head Type
Short-Handled Knob
Switch Function @ 4th Position
No Fourth Position
Number of Positions
2
Switch Function @ 3rd Position
No Third Position
Operator Head Color
Orange
Product Or Component Type
head for illuminated selector switch
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Mechanical Durability
500000 cycles
Device Short Name
ZB4
Electrical Composition Code
M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Protective Treatment
TH
Operator Position Information
2 positions 90°
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
UL Listed || LROS (Lloyds register of shipping) || GL || BV || CSA || DNV
Ambient Air Temperature For Operation
-40-70°C
Overvoltage Category
class I IEC 60536
Operator Profile
orange standard handle
Head Type
standard
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Signaling Unit Head
round
Ik Degree Of Protection
IK06 IEC 50102
Device Presentation
basic element
Product Compatibility
universal LED

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Maintained/Momentary Action, Lever Type of Operator, Operator Color Yellow, Operator Head Material Plastic, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 13, 2, 3, 4, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
