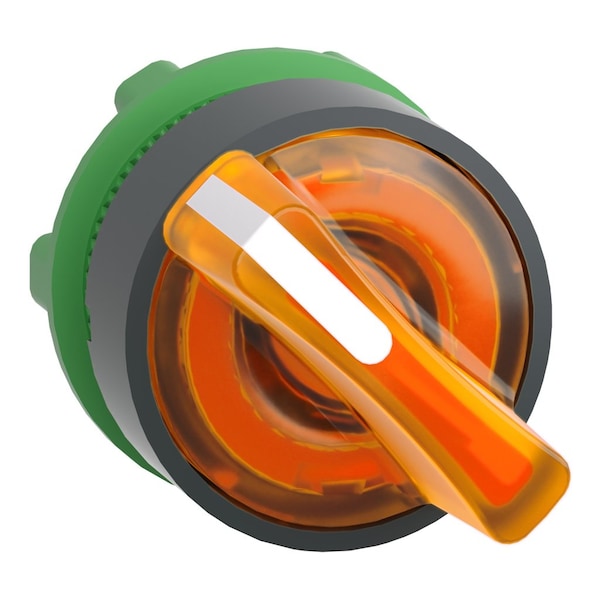

Illum Selector Switch, 2 Pos, 22mm, Yellow

Mfr # ZB5AK1253
Zoro # G2900116

$30.19

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Size 22 mm
Basic Material Plastic
Type of Operator Lever
Action Maintained/Maintained
Operator Head Material Plastic

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ZB5AK1253
Zoro # G2900116
UPC #
785901386629
Country of Origin France
Category Selector Switches

Dimensions

Size	22 mm
Cad Overall Height	29 mm
Mounting Diameter	22 mm
Cad Overall Depth	43 mm
Cad Overall Width	29 mm
Panel Cutout Diameter	22 mm
Manufacturer Warranty Length	18 mo

Details

Item	Short-Handled Selector Switch
Basic Material	Plastic
Type of Operator	Lever
Action	Maintained/Maintained
Operator Head Material	Plastic
Cam	No Cam Included
Operator Color	Yellow
NEMA Rating	1, 13, 2, 3, 4, 4X
Bezel Material	Plastic
Position	2
Bezel Color	Black
Standards	CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
Switch Operation @ Position A	OOXX
Lamp Module Voltage	Module Not Included
Lamp Module Type	Module Not Included
Lamp Type	Led
Switch Operation @ Position C	No Third Position
Switch Operation @ Position B	XXOO
IP Rating	IP66, IP67, IP69, IP69K
Series	XB5
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X
Product Or Component Type	head for illuminated selector switch
Ambient Air Temperature For Storage	-40-70°C
Ik Degree Of Protection	IK06 IEC 50102
Overvoltage Category	class II IEC 60536
Resistance To High Pressure Washer	7000000 Pa 55°C 0.1 m
Product Certifications	BV \|\| CSA \|\| UL Listed \|\| DNV \|\| LROS (Lloyds register of shipping) \|\| GL
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Operator Position Information	2 positions 90°
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile	orange standard handle
Mechanical Durability	1000000 cycles
Station Name	XALD 1 to 5 cut-outs \|\| XALK 2 to 5 cut-outs
Protective Treatment	TH
Electrical Composition Code	M3 4 single front mounting integral LED \|\| M6 2 single front mounting integral LED and transformer \|\| M10 2 single front mounting integral LED \|\| MF1 2 single front mounting integral LED \|\| MR1 2 single rear mounting integral LED \|\| M4 4 single and double front mounting integral LED
Device Short Name	ZB5
Head Type	standard
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 \|\| IP69 \|\| IP69K
Product Compatibility	universal LED
Device Presentation	basic element
Shape Of Signaling Unit Head	round
Ambient Air Temperature For Operation	-40-70°C
Operator Head Color	Orange
NEMA Enclosure Rating	1, 12, 13, 2, 3, 3R, 4, 4X
Operator Head Type	Short-Handled Knob
Operator Illumination	Illuminated
Switch Function @ 3rd Position	No Third Position
Hazardous Location Specification	Not Rated
Number of Positions	2
Switch Function @ 4th Position	No Fourth Position

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Lever Type of Operator, Operator Color Yellow, Operator Head Material Plastic, Bezel Material Plastic, Bezel Color Black, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
