  11. Illum Selector Switch, 3 Pos, 22mm, White
Shop All Selector Switches
Schneider Electric

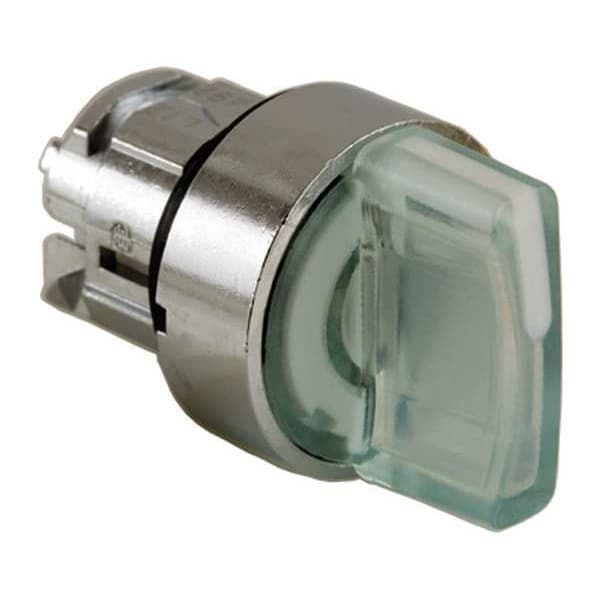

Illum Selector Switch, 3 Pos, 22mm, White

original price: $30.10
8% off
new price: $27.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 22 mm
  • Basic Material Metal
  • Type of Operator Lever
  • Action Momentary / Maintained / Maintained
  • Cam No Cam
See all product information

Product Information

Dimensions

Size 22 mm
Cad Overall Width 29 mm
Mounting Diameter 22 mm
Cad Overall Height 29 mm
Cad Overall Depth 43 mm

Details

Item Illuminated Selector Switch Operator
Basic Material Metal
Type of Operator Lever
Action Momentary / Maintained / Maintained
Cam No Cam
Operator Head Material Aluminum/Zinc Alloy
Operator Color White
NEMA Rating 1, 13, 2, 3, 4
Position 3
Bezel Material Zinc
Bezel Color Chrome
IP Rating 65
Lamp Module Type Module Not Included
Lamp Module Voltage Module Not Included
Standards CE Marked, CSA Certified File Number LR44087 Class 321103, UL Listed File Number E164353 CCN NKCR
Lamp Type Led
Switch Operation @ Position B OOXX
Switch Operation @ Position A XOOX
Switch Operation @ Position C OXXO
Device Presentation basic element
Head Type standard
Product Or Component Type head for illuminated selector switch
Operator Profile white standard handle
Resistance To High Pressure Washer 7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Storage -40-70°C
Electrical Composition Code M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
Product Certifications CSA || UL Listed || BV || GL || DNV || LROS (Lloyds register of shipping)
Ik Degree Of Protection IK04 IEC 50102
Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K
Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mechanical Durability 500000 cycles
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Shape Of Signaling Unit Head round
Operator Position Information 3 positions +/- 45°
Overvoltage Category class I IEC 60536
Ambient Air Temperature For Operation -40-70°C
Device Short Name ZB4
Nema Degree Of Protection NEMA 13 || NEMA 4X
Product Compatibility universal LED
Protective Treatment TH

Description

Illuminated Selector Switch Operator, 22 mm, Lamp Type LED, 3 Position, Operator Color White, Basic Material Metal, Momentary / Maintained / Maintained Action, Lamp Module Type Module Not Included, Lamp Module Voltage Module Not Included, Lever Type of Operator, Cam No Cam, Operator Head Material Aluminum/Zinc Alloy, NEMA Rating 1, 13, 2, 3, 4, Bezel Material Zinc, Bezel Color Chrome, Lamp Voltage Not Applicable, Replacement Lamp Not Applicable, IP Rating 65
