  15. Illuminated Multi-Head Operator, 22 mm, Rectangular

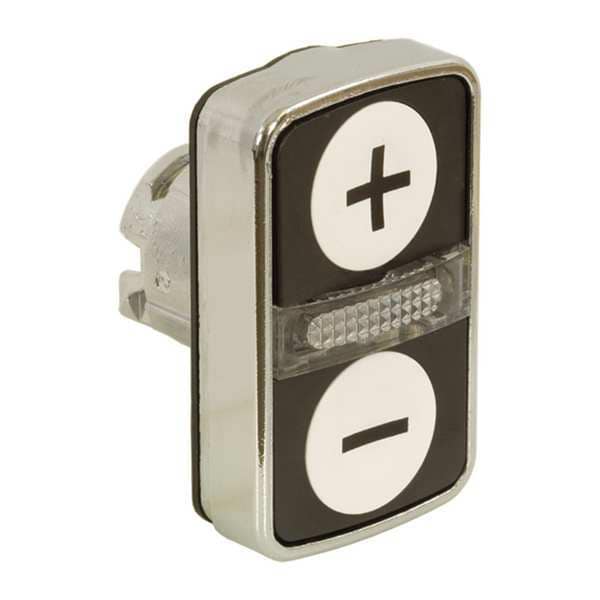

Schneider Electric Illuminated Multi-Head Operator, 22 mm, Rectangular ZB4BW7A1715 - main

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Mfr # ZB4BW7A1715

  • Zoro # G2363798

product price: $51.85
/ea

Key Features

Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW7A1715
Zoro #
G2363798
UPC #
094726569972
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Overall Width
1.18 in
Overall Height
1.97 in
Overall Depth
1.18 in
Manufacturer Warranty Length
18 mo
Mounting Diameter
22 mm
Cad Overall Depth
30 mm
Cad Overall Width
30 mm
Cad Overall Height
50 mm

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Head Color
White
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Type of Operator
(1) Light, (2) Flush Buttons
Legend
-, +
Lamp Voltage
Module Not Included
NEMA Rating
13, 4X
Lamp Type
No Lamp Module Included
IP Rating
IP66
Legend/Background Color
Black/white
Includes
Plus Minus Marking
Shape
Rectangular
Number of Operators
2
Series
XB4
Features
Snap-Fit Assembly, Spring Return Mechanism
Legend Color
Black
Product Type
Multihead Operators
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operator Material
Metal
Legend Background Color
White
Number of Indicator Lights
1
Lamp Module Type
No Lamp Module Included
Bezel Material
Metal
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Hazardous Location Specification
Not Rated
Mechanical Durability
1000000 cycles
Product Certifications
GL || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || CSA
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Operator Profile
white flush, - black) || white flush, + black), 2 flush push-buttons - 1 central pilot light
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Shape Of Signaling Unit Head
rectangular
Head Type
standard
Protective Treatment
TH
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operators Description
white ''+'' - white ''-''
Device Presentation
basic sub-assemblies
Electrical Shock Protection Class
class I IEC 61140
Number of Heads
2
Ik Degree Of Protection
IK06 IEC 50102
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
Ambient Air Temperature For Storage
-40-70°C
Product Compatibility
integral LED
Device Short Name
ZB4
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Product Or Component Type
head for illuminated double-headed push-button

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (1) Light, (2) Flush Buttons, Head Material Metal, Bezel Material Metal, Color White/Black, NEMA Rating 13, 4X, IP Rating IP66, Legend -, +, Legend/Background Color Black/White, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
