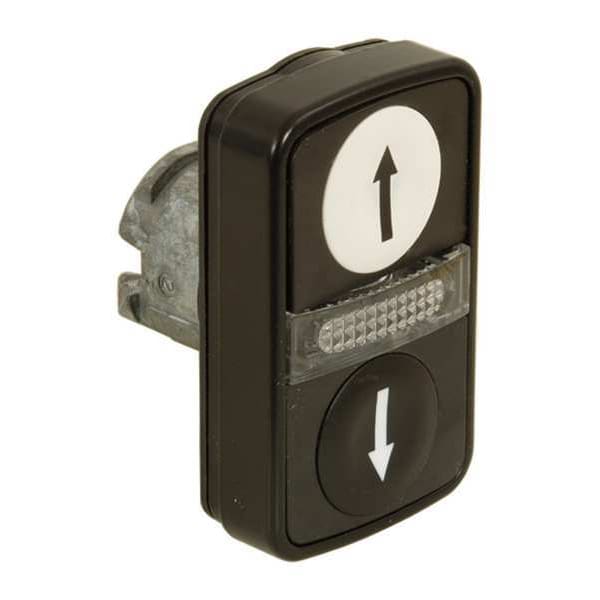

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Mfr # ZB4BW7A17247

  • Zoro # G2363825

product price:
$
59.55
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
(1) Black; (1) White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB4BW7A17247
Zoro #
G2363825
UPC #
094726569910
Country of Origin
Korea, Republic of

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Depth
30 mm
Cad Overall Height
50 mm
Cad Overall Width
30 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Overall Height
1.97 in
Overall Width
1.18 in

Details

Item
Multihead Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
(1) Black; (1) White
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Type
No Lamp Module Included
Legend
Down Arrow, Up Arrow
Shape
Rectangular
IP Rating
IP66
Type of Operator
(1) Light, (2) Flush Buttons
Green Environmental Attribute
RoHS 2011/65/EU Compliant
NEMA Rating
13, 4X
Legend/Background Color
Black/White, White/Black
Lamp Voltage
Module Not Included
Includes
Light
Number of Heads
2
Number of Operators
2
Lamp Module Type
No Lamp Module Included
Features
Snap-Fit Assembly, Spring Return Mechanism
Series
XB4
Bezel Material
Metal
Legend Color
Black/White
Product Type
Multihead Operators
Product Or Component Type
head for illuminated double-headed push-button
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
Electrical Shock Protection Class
class I IEC 61140
Mechanical Durability
1000000 cycles
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TH
Ik Degree Of Protection
IK06 IEC 50102
Device Short Name
ZB4
Operators Description
white ''up arrow'' - black ''down arrow''
Product Certifications
GL || DNV || LROS (Lloyds register of shipping) || CSA || UL Listed || BV
Head Type
standard
Colour Of Marking
black marking when white caps || white marking when green, red or black caps
Shape Of Signaling Unit Head
rectangular
Product Compatibility
integral LED
Device Presentation
basic sub-assemblies
Ambient Air Temperature For Operation
-40-70°C
Ambient Air Temperature For Storage
-40-70°C
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Operator Profile
2 flush push-buttons - 1 central pilot light, white flush, up arrow black) || black flush, down arrow white)
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Legend Background Color
Black/White
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
1
Hazardous Location Specification
Not Rated
Operator Material
Metal

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (1) Light, (2) Flush Buttons, Head Material Metal, Bezel Material Metal, Color White/Black, NEMA Rating 13, 4X, IP Rating IP66, Legend Down Arrow, Up Arrow, Legend/Background Color Black/White, White/Black
