- MFR #
- XB7EV75P
- Zoro #
- G500905451
- UPC #
- -
- Country of Origin
- Indonesia
- Item

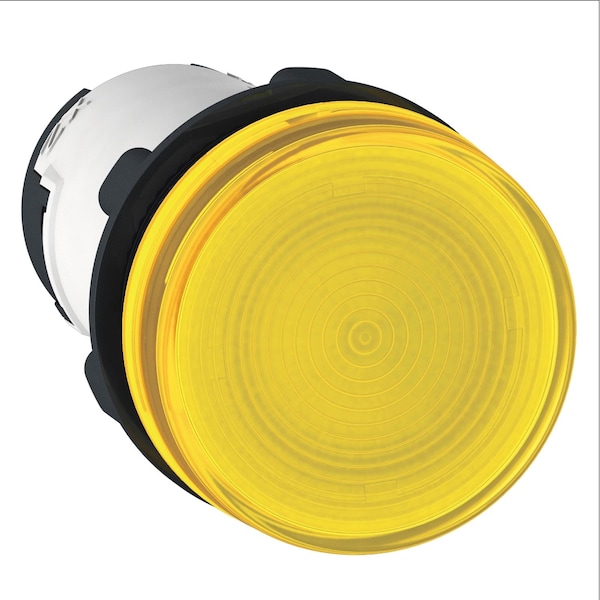

- Round pilot light 0 22 - yellow - bulb B
- Operator Illumination
- Illuminated
- Head Color
- Yellow
- Terminal Connection
- Screw Clamp
- Standards
- JIS C8201-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, UL 508, JIS C8201-1
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
- [Us] Rated Supply Voltage
- 230 V AC 50/60 Hz
- Overvoltage Category
- class II IEC 60536
- Cap/Operator or Lens Colour
- yellow
- Shape of Screw Head
- cross JIS No 1, cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Light Block Supply
- direct through resistor <2.6 W 130 V
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Compatibility Code
- XB7
- Shock Resistance
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Device Presentation
- monolithic product
- Product or Component Type
- pilot light
- Nema Degree of Protection
- NEMA 12
- Signalling Type
- steady
- Supply Voltage Limits
- 195-264 V AC
- Ambient Air Temperature For Storage
- -40-70°C
- Device Short Name
- XB7
- Ambient Air Temperature For Operation
- -25-55°C
- Electromagnetic Compatibility
- disturbing field emission class B conforming to IEC 55011
- Service Life
- 2000 h at rated voltage and 25°C
- Protective Treatment
- TH
- Connections - Terminals
- Faston connectors 6.35 x 0.8 mm IEC 60947-1, forked type tag connectors 6.5 mm IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Light Source
- incandescent
- Ip Degree of Protection
- IP20 IEC 60529 rear face), IP54 IEC 60529 front face)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
- Bulb Base
- BA 9s
- Operator Additional Information
- with plain lens
- Shape of Signaling Unit Head
- round
- Terminals Description Iso N°1
- (X1-X2)PL
- Range of Product
- Harmony XB7
- Shape Of Signaling Unit Head
- round
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Product Or Component Type
- pilot light
- Nema Degree Of Protection
- NEMA 12
- Cap/Operator Or Lens Colour
- yellow
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP54 IEC 60529 front face)
