  15. Illuminated Multi-Head Operator, 22 mm, Rectangular

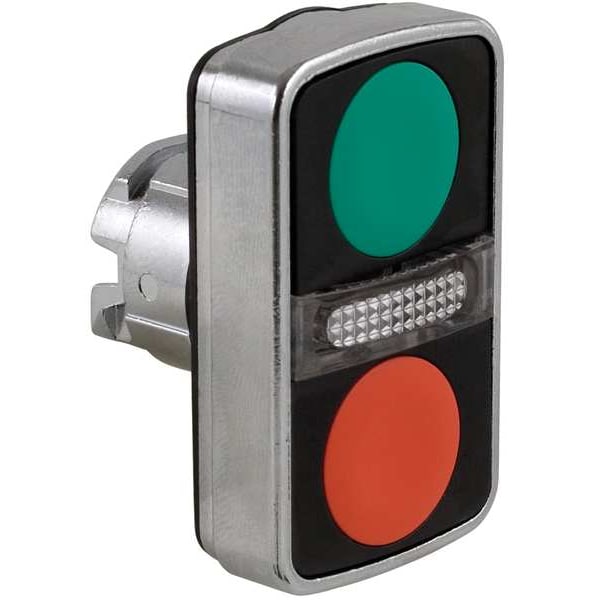

Schneider Electric Illuminated Multi-Head Operator, 22 mm, Rectangular ZB4BW7A3740 - main

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Mfr # ZB4BW7A3740

  • Zoro # G3526241

product price: $38.25
/ea

Key Features

Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green; Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW7A3740
Zoro #
G3526241
UPC #
785901672852
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Depth
30 mm
Mounting Diameter
22 mm
Cad Overall Height
50 mm
Cad Overall Width
30 mm
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo
Overall Height
1.97 in
Overall Depth
1.18 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Illuminated
Head Color
Green; Red
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Lamp Voltage
Module Not Included
Legend/Background Color
White/Green, White/Red
NEMA Rating
13, 4X
Lamp Type
No Lamp Module Included
Number of Heads
2
Type of Operator
(2) Flush Buttons
IP Rating
IP66
Shape
Rectangular
Lamp Module Type
No Lamp Module Included
Series
XB4
Bezel Material
Metal
Features
Visually Distinct at a Distance, Snap-Fit Assembly, Withstands Harsh Environments
Number of Operators
2
Product Type
Multihead Operators
Head Type
standard
Ik Degree Of Protection
IK06 IEC 50102
Product Certifications
LROS (Lloyds register of shipping) || BV || GL || DNV || UL Listed || CSA
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Shock Protection Class
class I IEC 61140
Product Or Component Type
head for illuminated double-headed push-button
Shape Of Signaling Unit Head
rectangular
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
Product Compatibility
integral LED
Device Presentation
basic sub-assemblies
Operators Description
green unmarked - red unmarked
Ambient Air Temperature For Storage
-40-70°C
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Mechanical Durability
1000000 cycles
Operator Profile
2 flush push-buttons - 1 central pilot light, green flush, unmarked || red flush, unmarked
Colour Of Marking
black marking when white caps || white marking when green, red or black caps
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ambient Air Temperature For Operation
-40-70°C
Protective Treatment
TH
Device Short Name
ZB4
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Operator Material
Metal
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
1
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-40 Degrees F

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (2) Flush Buttons, Head Material Metal, Bezel Material Metal, Color Green/Red, NEMA Rating 13, 4X, IP Rating IP66, Legend Not Applicable, Legend/Background Color White/Green, White/Red, Standards Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
