Shop SCHNEIDER ELECTRIC

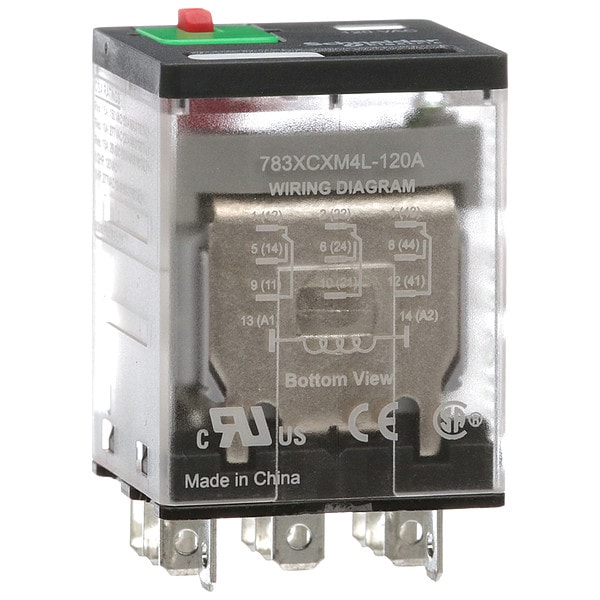

Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector

  • Mfr # 783XCXM4L-120A

  • Zoro # G0913281

CAD Available
product price:  $20.15
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Faston Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
783XCXM4L-120A
Zoro #
G0913281
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.85 in
Body Width
1.2 in
Body Height
1.07 in
Overall Depth
2.07 in
Flat Pin Width
0.187 in
Body Depth
1.54 in
Depth
1.07 in (27.3 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Terminal
Base Shape
Square
Number of Pins
11
Coil Voltage
120V AC
Current Rating
15 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V (NC)
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Power Consumption - Relay
1.5 VA
Socket Code
C
Status Indicator
LED Indicator, Mechanical Flag
Contact Material
Gold Flashed Silver Alloy
Socket
Mfr. No. 70-783D11-1A
Features
Gold Flashed Contacts
Standards
CE Certified, CSA Certified, UL Listed
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Motor Rated
Yes
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
131 Degrees F
Horsepower @ 120V AC
1/2 hp
Mechanical Operating Durability
10,000,000
Push-To-Test Method
Lockable
Resistance Properties
Shock-Resistant, Vibration-Resistant
IP Rating
IP40
Response Time
20 msec
Coil Resistance
2,880 ohm
Input Voltage
120V AC
Minimum Switching Current
10 mA
Electrical Operating Durability
100,000
Weight
2.12 oz
Horsepower @ 240V AC
3/4 hp
For Use With
Automation Panels and Controls
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Frequency
50/60 Hz
Maximum Switching Voltage
250V AC, 300V DC
Power Consumption
1.85 W, 2.05 VA
Series
783 Series
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Operating Time
20 ms operating; 20 ms tripping
Product Certifications
UL; CE; CSA
Voltage Range
0.8...1.1 Un AC/DC
Shock Resistance
15 gn in operation
Power consumption in VA
2.05 VA AC
Connections Terminals
Faston terminals
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Control Type
Lockable test button
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Contact Composition
3 NO + 3 NC
Power consumption in W
1.85 W DC
CAD Available
Yes
Type
Plug-In

Description

General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 11, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable
