  15. Illuminated Multi-Head Operator, 22 mm, Rectangular

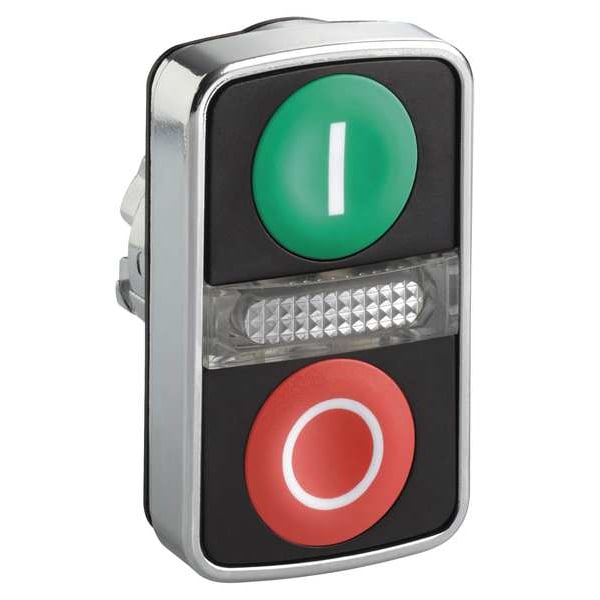

Schneider Electric Illuminated Multi-Head Operator, 22 mm, Rectangular ZB4BW7L3741 - main

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Mfr # ZB4BW7L3741

  • Zoro # G3552001

product price: $51.85
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green; Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BW7L3741
Zoro #
G3552001
UPC #
785901685357
Country of Origin
France

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Cad Overall Width
30 mm
Cad Overall Height
50 mm
Cad Overall Depth
30 mm
Mounting Diameter
22 mm
Overall Depth
1.18 in
Overall Width
1.18 in
Overall Height
1.97 in
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green; Red
Head Material
Metal
Standards
Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Legend/Background Color
White/Green, White/Red
Legend
I, O
Number of Heads
2
Lamp Voltage
Module Not Included
Lamp Type
No Lamp Module Included
Type of Operator
(1) Extended Button, (1) Flush Button
NEMA Rating
13, 4X
Shape
Rectangular
IP Rating
IP66, IP67, IP69, IP69K
Bezel Material
Metal
Features
Snap-Fit Assembly, Spring Return Mechanism
Series
XB4
Number of Operators
2
Lamp Module Type
No Lamp Module Included
Legend Color
White
Product Type
Multihead Operators
Protective Treatment
TH
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Signaling Unit Head
rectangular
Product Or Component Type
head for illuminated double-headed push-button
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Product Certifications
UL Listed || DNV || BV || LROS (Lloyds register of shipping) || GL || CSA
Electrical Composition Code
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
Device Presentation
basic sub-assemblies
Operator Profile
green flush, I white) || red projecting, O white), 1 flush - 1 projecting push-buttons - 1 central pilot light
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Colour Of Marking
white marking when green, red or black caps || black marking when white caps
Product Compatibility
integral LED
Operators Description
green ''I'' - red ''O''
Ik Degree Of Protection
IK06 IEC 50102
Device Short Name
ZB4
Ip Degree Of Protection
IP66 IEC 60529 || IP69K || IP69 IEC 60529
Ambient Air Temperature For Storage
-40-70°C
Head Type
standard
Ambient Air Temperature For Operation
-40-70°C
Mechanical Durability
1000000 cycles
Electrical Shock Protection Class
class I IEC 61140
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
1
Operator Material
Metal
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
Legend Background Color
Green/Red

Description

Multihead Operator, 22 mm, Momentary/Momentary, Type of Operator (1) Extended Button, (1) Flush Button, Head Material Metal, Bezel Material Metal, Color Green/Red, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend I, O, Legend/Background Color White/Green, White/Red
