  15. Illuminated Push Button, 16 mm, 1NO, White

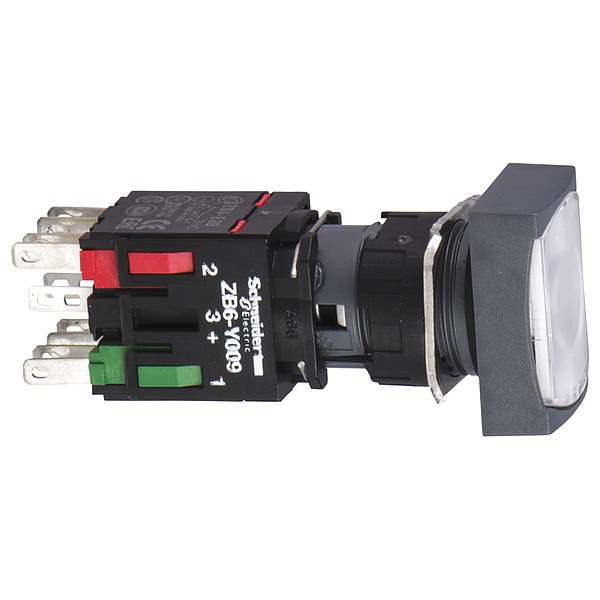

Schneider Electric Illuminated Push Button, 16 mm, 1NO, White XB6DW1B1B - main

Illuminated Push Button, 16 mm, 1NO, White

  • Mfr # XB6DW1B1B

  • Zoro # G3465604

product price: $35.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
16 mm
Head Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6DW1B1B
Zoro #
G3465604
UPC #
785901358534
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Size
16 mm
Overall Depth
2.24 in
Manufacturer Warranty Length
18 mo
Overall Height
0.71 in
Overall Width
0.94 in
Cad Overall Height
18 mm
Cad Overall Depth
57 mm
Cad Overall Width
24 mm
Mounting Diameter
16 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Quick Connect
Standards
CCC, CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, GOST, JIS C4520, JIS C852, REACH, RoHS, UL Listed, WEEE
Legend/Background Color
No Legend
Lamp Module Type
Full Voltage
Lamp Module Voltage
12 to 24V AC/DC
Lamp Type
LED
Legend Markings
No Legend
Color
White
Number of Operators
1
Type of Operator
Rectangular Flush Button
Bezel Material
Plastic
Basic Material
Plastic
Contact Form
1NO
Voltage
12 to 24V AC/DC
IP Rating
IP65
NEMA Contact Rating Designation
B300/R300
Contact Rating
0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC
Bezel
Plastic
NEMA Rating
13, 4, 4X
Lamp Voltage
12 to 24V AC/DC
Series
XB6
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Features
Spring Return, Weighs 22 g
Product Type
Push Button Operators
Operator Material
Plastic
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
250 V AC/DC
Lamp Voltage - Maximum
24 V AC/DC
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
13, 4, 4X
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Operator Profile
white flush, unmarked
Surge Withstand
1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Contacts Type And Composition
1 NO
Signalling Type
steady
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Current Consumption
15 mA
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Bulb Base
integral LED
Positive Opening
with EN/IEC 60947-5-1 appendix K
Product Or Component Type
complete illuminated push-button
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Operating Position
any position
Resistance To Fast Transients
2 kV IEC 61000-4-4
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP65 IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Product Certifications
UL || CCC || GOST || CSA
Shape Of Signaling Unit Head
rectangular
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Contact Operation
slow-break
Protective Treatment
TC
Electromagnetic Emission
class B IEC 55011
Supply Voltage Limits
6-30 V AC/DC
Operating Travel
1 mm NO changing electrical state) || 3.5 mm total travel)
Contact Type
1NO
Electrical Shock Protection Class
class II IEC 61140
Terminals Description Iso N°1
(13-14)NO
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Operating Force
3.5 N NO changing electrical state
Short-Circuit Protection
6 A cartridge fuse gG
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Reliability
Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
[Us] Rated Supply Voltage
12 to 24 V AC/DC
Light Source
LED
Contacts Material
silver alloy (Ag/Ni)
Device Short Name
XB6

Description

Illuminated Push Button, 16 mm, Momentary Action, Rectangular Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Plastic, Color White, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, NEMA Contact Rating Designation B300/R300, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating IP65, Legend Not Applicable, Legend/Background Color No Legend
