  15. Illuminated Push Button, 30 mm, 1NO/1NC, White

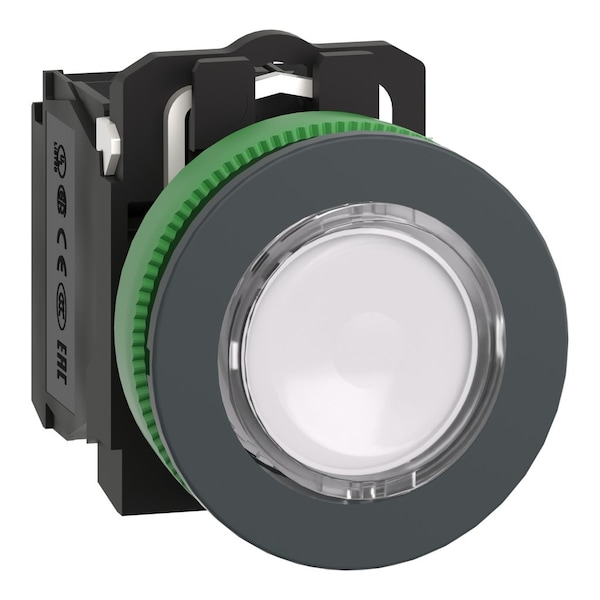

Schneider Electric Illuminated Push Button, 30 mm, 1NO/1NC, White XB5FW31B5 - main

Illuminated Push Button, 30 mm, 1NO/1NC, White

  • Mfr # XB5FW31B5

  • Zoro # G3463757

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5FW31B5
Zoro #
G3463757
UPC #
-
Country of Origin
France

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Height
42 mm
Depth
55 mm
Width
36.6 mm
Mounting Diameter
30.5 mm
Overall Width
1.44 in
Overall Depth
2.17 in
Overall Height
1.65 in

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, ISO 21702, ISO 22196:2011, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508, UL Listed, WEEE
Lamp Module Type
Full Voltage
Bezel Material
Plastic
Number of Operators
1
Color
White
Type of Operator
Flush Button
Contact Form
1NO/1NC
Lamp Module Voltage
24V AC/DC
Bezel
Chrome Plated Metal
Contact Rating
0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V, 1.2A @ 600V, 3A @ 240V, 6 A @ 120V
Legend Markings
No Legend
IP Rating
IP66, IP67, IP69, IP69K
Lamp Type
LED
NEMA Contact Rating Designation
A600/Q600
Legend/Background Color
No Legend
Contact Type
1NO/1NC
Voltage
24V AC/DC
Basic Material
Plastic
NEMA Rating
13, 4X
Lamp Voltage
24 V AC/DC
Features
Spring Return
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
XB5
Product Type
Push Button Operators
Shape Of Signaling Unit Head
round
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Operating Force
3.5 N NC changing electrical state || 3.8 N
Electromagnetic Emission
class B IEC 55011
Device Short Name
XB5F
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Head Type
built-in-flush
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Current Consumption
18 mA
Cap/Operator Or Lens Colour
white
Contact Operation
slow-break
Overvoltage Category
class II IEC 60536
Ambient Air Temperature For Operation
-40-70°C
Positive Opening
with EN/IEC 60947-5-1 appendix K
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-40-70°C
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Contacts Type And Composition
1 NO + 1 NC
Product Certifications
UL Listed || CSA
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Tightening Torque
0.8-1.2 N.m EN 60947-1
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Resistance To Fast Transients
2 kV IEC 61000-4-4
Light Source
universal LED
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Protective Treatment
TH
Fixing Collar Material
plastic
Signalling Type
steady
Operator Additional Information
with plain lens
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Device Presentation
complete product
Contacts Material
silver alloy (Ag/Ni)
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Product Or Component Type
illuminated push-button
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection
IK03 IEC 50102
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Bulb Base
integral LED
Contacts Usage
standard contacts
Surge Withstand
1 kV IEC 61000-4-5
Operator Profile
white flush, unmarked
Mechanical Durability
10000000 cycles
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Operating Temperature - Minimum
-40 Degrees F
Number of Indicator Lights
0
Resistance Properties
Antimicrobial, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Lamp Voltage - Maximum
24 V AC/DC
NEMA Enclosure Rating
13, 4X
Operator Material
Plastic
Operator Voltage Rating - Maximum
600 V AC/DC

Description

Illuminated Push Button, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color White, Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V, 1.2A @ 600V, 3A @ 240V, 6 A @ 120V, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Legend/Background Color No Legend
