  15. Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Red

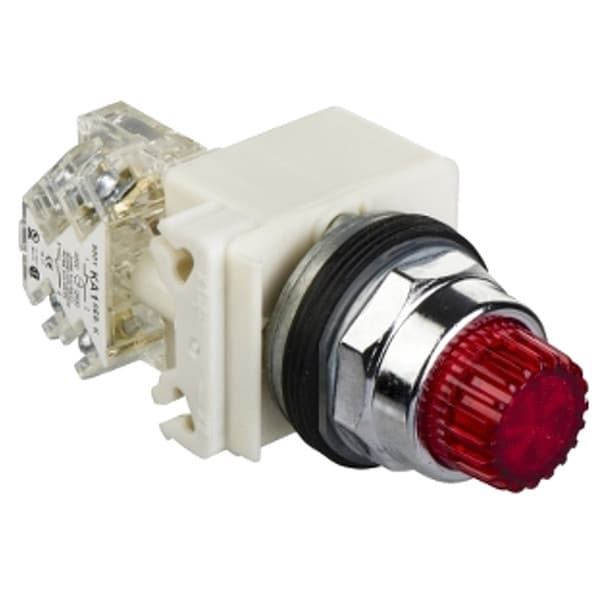

Schneider Electric Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Red 9001K2L38LRRH13 - main

Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Red

  • Mfr # 9001K2L38LRRH13

  • Zoro # G0299257

product price: $212.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K2L38LRRH13
Zoro #
G0299257
UPC #
785901431701
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Cad Overall Depth
103 mm
Cad Overall Width
54 mm
Mounting Diameter
30 mm
Cad Overall Height
42 mm
Overall Depth
4.06 in
Overall Width
2.13 in
Manufacturer Warranty Length
18 mo
Overall Height
1.65 in

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Type of Operator
Round Button
Voltage
120V AC/DC
Replacement Lamp
Mfr. No. 25501-010-27
Lamp Voltage
120V AC/DC
Lamp Module Voltage
120V AC
NEMA Contact Rating Designation
A600/Q600
Lamp Module Type
Full Voltage
Color
Red
Basic Material
Metal
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Lamp Type
LED
Contact Type
1NO/1NC
IP Rating
IP66
Contact Form
SPDT
Contact Rating
10A @ 600V AC
Bezel
Chrome Plated Zinc Die Cast
Number of Operators
1
Bezel Material
Metal
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series
9001K
Product Type
Push Button Operators
Product Or Component Type
illuminated push-button
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
[Us] Rated Supply Voltage
120 V AC/DC, 120 V
Shape Of Signaling Unit Head
octagonal
Positive Opening
without
Light Source
LED
Device Presentation
complete product
Bulb Base
BA 9s
Ambient Air Temperature For Storage
-40-70°C
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Device Short Name
9001K
Light Source Colour
red
Protective Treatment
TC
Rated Breaking Capacity
1.2 kA 480 V AC-15, 720 VA || 1.5 kA 240 V AC-15, 720 VA || 3 kA 120 V AC-15, 720 VA || 0.27 kA 125 V DC-13 || 0.55 kA 600 V DC-13
Ambient Air Temperature For Operation
-25-70°C
Operator Additional Information
without guard
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Cap/Operator Or Lens Colour
red
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
[Ith] Conventional Free Air Thermal Current
10 A
Mechanical Durability
5000000 cycles
Contacts Type And Composition
1 C/O
Operating Position
any position
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Terminals Description Iso N°1
(13-14-11-12)OF
Shape Of Screw Head
cross slotted
Operator Profile
projecting, red projecting, unmarked
Shock Resistance
50 gn IEC 60068-2-27
Contact Operation
standard
[Ie] Rated Operational Current
0.55 A 125 V, DC-13, A600-Q600 NEMA
Overvoltage Category
class II IEC 61140
Contacts Material
silver alloy contacts
Connections - Terminals
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Product Certifications
NEMA || UL 508
Light Block Supply
direct
Tightening Torque
0.8-0.8 N.m IEC 60947-1
Ip Degree Of Protection
IP66 IEC 60529
Rated Supply Voltage
120 V AC/DC
Rated Short Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA
Conventional Free Air Thermal Current
10 A
Terminals Description Iso N°1
(13-14-11-12)OF
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Mechanical Operating Durability
5.00 x 10^6
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Lamp Voltage - Maximum
120 V AC/DC
Operator Material
Metal
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operator Voltage Rating - Maximum
600 V AC

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE, Terminal Connection Screw Clamp
