- Item

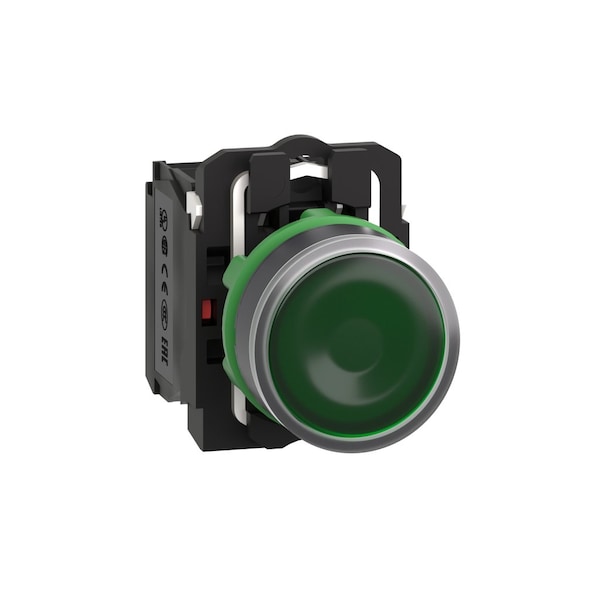

- Illuminated Push Button
- Push Button Style
- Flush
- Action
- Momentary
- Operator Illumination
- Illuminated
- Head Color
- Green
- Head Material
- Plastic
- Terminal Connection
- Screw Clamp
- Standards
- Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
- NEMA Rating
- 13, 4, 4X
- Contact Form
- 1NO/1NC
- Replacement Lamp
- 6HZ44
- Voltage
- 24V AC/V DC
- Bezel
- Double-Insulated Plastic
- Lamp Module Voltage
- 24V AC/DC
- Lamp Voltage
- 24V AC/V DC
- IP Rating
- IP66, IP67, IP69, IP69K
- Contact Rating
- 10A @ 600V AC
- Shape
- Round
- Lens Type
- Smooth
- Lamp Module Type
- Full Voltage
- Lens Material
- Plastic
- Body Material
- plastic
- Type of Operator
- Flush Button
- Lamp Type
- LED
- Basic Material
- Plastic
- Color
- Green
- Bezel Material
- Plastic
- AC Contact Rating
- 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- Series
- XB5
- Features
- Quick Assembly, Quick Disassembly
- Number of Operators
- 1
- Product Type
- Push Button Operators
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
- Light Source
- universal LED
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Contact Operation
- slow-break
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Surge Withstand
- 1 kV IEC 61000-4-5
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
- Ambient Air Temperature For Storage
- -40-70°C
- Operating Force
- 3.5 N NC changing electrical state || 3.8 N
- Ik Degree Of Protection
- IK05 IEC 50102
- Operating Travel
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Device Presentation
- complete product
- Overvoltage Category
- class II IEC 60536
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- Bulb Base
- integral LED
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 || IP69K || IP67
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Fixing Collar Material
- plastic
- Head Type
- standard
- [Ui] Rated Insulation Voltage
- 600 V 3)EN/IEC 60947-1
- Electrical Reliability
- Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
- Signalling Type
- steady
- Contacts Type And Composition
- 1 NO + 1 NC
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Device Short Name
- XB5
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation
- -40-70°C
- Operator Profile
- green flush, unmarked
- Operator Additional Information
- with plain lens
- Cap/Operator Or Lens Colour
- green
- Mechanical Durability
- 10000000 cycles
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Electromagnetic Emission
- class B IEC 55011
- Protective Treatment
- TH
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Contacts Usage
- standard contacts
- Shape Of Signaling Unit Head
- round
- Current Consumption
- 18 mA
- Contacts Material
- silver alloy (Ag/Ni)
- Product Certifications
- UL Listed || GL || CSA || LROS (Lloyds register of shipping) || DNV || BV
- Product Or Component Type
- illuminated push-button
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Resistance Properties
- Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
- Number of Indicator Lights
- 0
- Operator Voltage Rating - Maximum
- 600 V AC/DC
- NEMA Enclosure Rating
- 13, 4X
- Operating Temperature - Maximum
- 158 Degrees F
- Lamp Voltage - Maximum
- 24 V AC/DC
- Mechanical Operating Durability
- 1.00 x 10^7
- Operator Material
- Plastic
- Operating Temperature - Minimum
- -40 Degrees F
