Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
Lamp Module Type
Full Voltage
Contact Rating
10A @ 600V AC
Lamp Voltage
24V AC/V DC
Lens Material
Plastic
Body Material
plastic
Voltage
24V AC/V DC
Type of Operator
Flush Button
Basic Material
Plastic
NEMA Rating
13, 4, 4X
Lens Type
Smooth
IP Rating
IP66, IP67, IP69, IP69K
Color
Yellow
Shape
Round
Lamp Module Voltage
24V AC/DC
Lamp Type
LED
Replacement Lamp
6HZ53
Bezel
Double-Insulated Plastic
Contact Form
1NO/1NC
Bezel Material
Plastic
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Number of Operators
1
Features
Quick Assembly, Quick Disassembly
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series
XB5
Product Type
Push Button Operators
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Type And Composition
1 NO + 1 NC
Signalling Type
steady
Positive Opening
with EN/IEC 60947-5-1 appendix K
Device Presentation
complete product
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Additional Information
with plain lens
Ik Degree Of Protection
IK05 IEC 50102
Product Or Component Type
illuminated push-button
Resistance To Fast Transients
2 kV IEC 61000-4-4
Contacts Usage
standard contacts
Bulb Base
integral LED
Mechanical Durability
10000000 cycles
Device Short Name
XB5
Light Source
universal LED
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Fixing Collar Material
plastic
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Cap/Operator Or Lens Colour
orange
Ip Degree Of Protection
IP66 IEC 60529 || IP69 || IP69K || IP67
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Operating Force
3.5 N NC changing electrical state || 3.8 N
Contacts Material
silver alloy (Ag/Ni)
Operator Profile
orange flush, unmarked
Overvoltage Category
class II IEC 60536
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Current Consumption
18 mA
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Contact Operation
slow-break
Shape Of Signaling Unit Head
round
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
UL Listed || GL || LROS (Lloyds register of shipping) || DNV || CSA || BV
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Head Type
standard
Electromagnetic Emission
class B IEC 55011
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Surge Withstand
1 kV IEC 61000-4-5
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Operation
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Resistance Properties
Chemical Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
Operating Temperature - Minimum
-40 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Operator Material
Plastic
Lamp Voltage - Maximum
24 V AC/DC
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
13, 4X
Operator Voltage Rating - Maximum
600 V AC/DC
Description

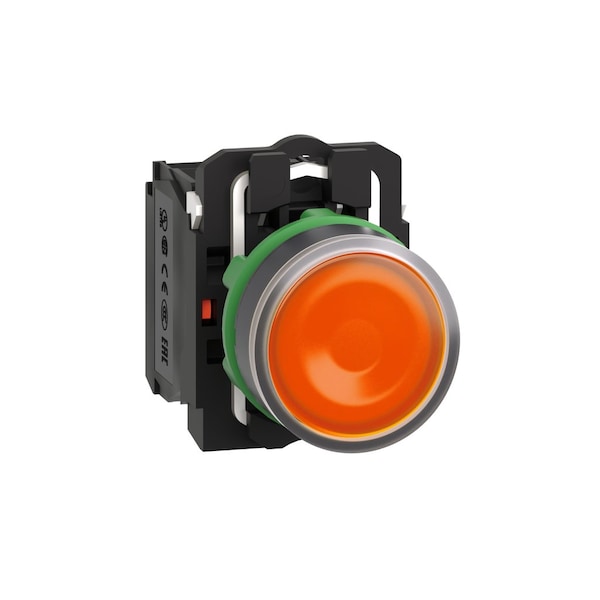

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Double-Insulated Plastic, Color Yellow, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
