  15. Illuminated Push Button, Flush, Momentary Action, Not Applicable Release, Illuminated, Red

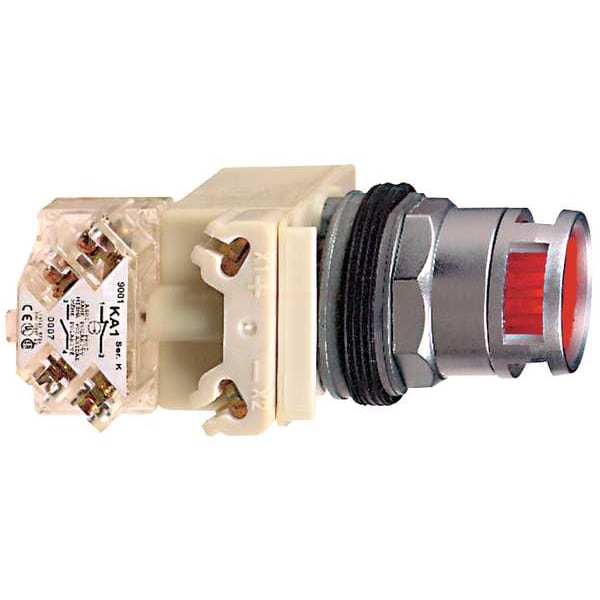

Schneider Electric Illuminated Push Button, Flush, Momentary Action, Not Applicable Release, Illuminated, Red 9001K3L1RH13 - main

Illuminated Push Button, Flush, Momentary Action, Not Applicable Release, Illuminated, Red

  • Mfr # 9001K3L1RH13

  • Zoro # G1905741

product price: $216.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001K3L1RH13
Zoro #
G1905741
UPC #
785901028444
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Mounting Diameter
30 mm
Overall Width
2.13 in
Overall Depth
2.8 in
Overall Height
1.65 in
Manufacturer Warranty Length
18 mo

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Bezel
Chrome Plated Zinc Die Cast
Lamp Module Voltage
120V AC
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Replacement Lamp
Mfr. No. 755
Voltage
120V AC
NEMA Contact Rating Designation
A600/Q600
Lamp Type
Incandescent
Basic Material
Metal
Lamp Voltage
6V AC
Color
Red
Contact Form
SPDT
Type of Operator
Round Extended Guarded Button
IP Rating
IP66
Contact Type
1NO/1NC
Lamp Module Type
Transformer
Number of Operators
1
Contact Rating
10A @ 600V AC
Series
9001K
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Bezel Material
Metal
Product Type
Push Button Operators
Mechanical Durability
5000000 cycles
Contacts Material
silver alloy contacts
[Ith] Conventional Free Air Thermal Current
10 A
Ambient Air Temperature For Operation
-25-70°C
Operator Additional Information
metal guard
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA
Protective Treatment
TC
Shape Of Screw Head
cross slotted
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Product Certifications
UL 508 || NEMA
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Product Or Component Type
illuminated push-button
Ambient Air Temperature For Storage
-40-70°C
Connections - Terminals
screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Contact Operation
standard
Shape Of Signaling Unit Head
octagonal
[Us] Rated Supply Voltage
110 to 120 V AC, 110 to 120 V
Light Block Supply
via integral transformer, via integral transformer 6 V
Device Short Name
9001K
Cap/Operator Or Lens Colour
red
[Ie] Rated Operational Current
0.55 A 125 V, DC-13, A600-Q600 NEMA
Rated Breaking Capacity
1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Supply Frequency
50 to 60 Hz
Positive Opening
without
Bulb Base
BA 9s
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
Shock Resistance
50 gn IEC 60068-2-27
Operating Position
any position
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Overvoltage Category
class II IEC 61140
Light Source
incandescent bulb, incandescent
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Operator Profile
red flush, unmarked, flush
Tightening Torque
0.8-0.8 N.m IEC 60947-1
Ip Degree Of Protection
IP66 IEC 60529
Contacts Type And Composition
1 C/O
Device Presentation
complete product
Mechanical Operating Durability
5.00 x 10^6
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Operator Material
Metal
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Operator Voltage Rating - Maximum
600 V AC
Lamp Voltage - Maximum
120 V AC
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Extended Guarded Button Type of Operator, Head Material Metal, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
